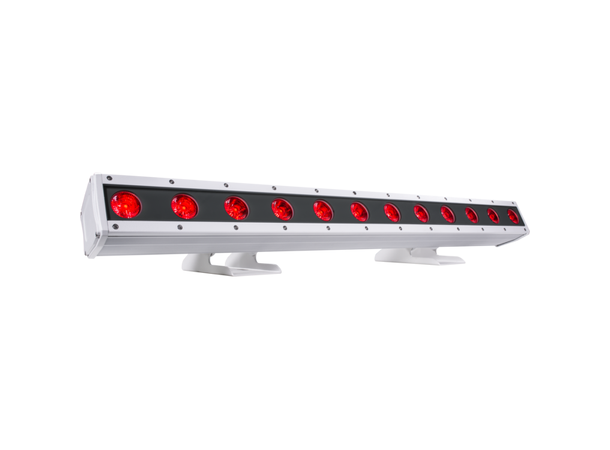

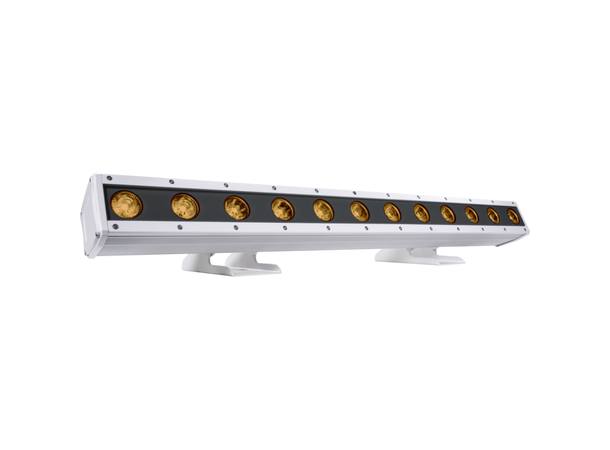

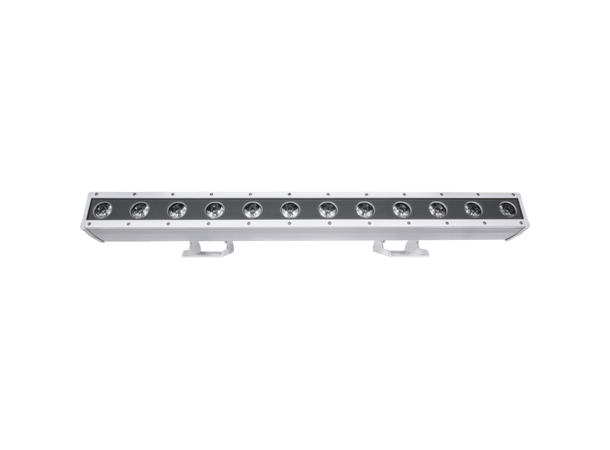

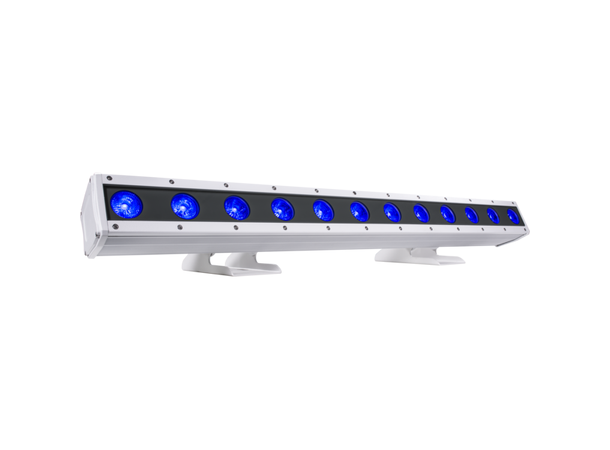

ARCSHINE12 is a linear wall-washer with 12x8W RGBW/FC LED source conceived for those outdoor installations where a projector with high performance in brightness and chromatic precision is required. Design in a linear shape and superslim profile allows ARCSHINE12 to be easily integrated in any architectonic context, also in outdoor (IP66) environments due to construction of chassis in die-cast aluminum and tempered glass with no usage of fans for ventilation. ARCSHINE6 features 4D (RGBW) color mixing, DMX virtual color wheel, CTC, 103W power consumption only and LED source expected life of over 50'000 hours. User menu and setting are accessed through a 4-button touch-sensitive LED interface while 5 different DMX modes (4ch to 53ch) are available. ARCSHINE12 is a compact projector capable of lighting large spaces, both as a stage-wash in temporary events and for projects of architectural lighting.
Light source and optics
- 12 x 8W RGBW/FC high-efficiency LEDS
- Beam angle: 15° (25, 45° optional)
- Field angle: 22°
- Colour synthesis: RGBW/Fullcolour mixing (>16 million colours) for a limitless colour range
- LEDs average life span: >50'000h
Electronics and features
- Several DMXselectable configurations (4, 6, 10, 48, 53 channels) for advanced or basic control
4 channels: RGBW
6 channels: dimmer, RGBW, strobe
10 channels: Dimmer, RGBW, strobe, color macro, auto programs, auto speed, dimmer mode
48 channels: RGBW (x12 pixels)
53 channels: RGBW (x12 pixels), auto programs, auto speed, dimmer, strobe, dimmer mode
- Touch-sensitive LED display user interface for auto programs execution, static colour mode, creation of custom shows, color presets calibration
- Dimmer curve settings: 4 selectable configurations
- Auto mode: built-in programs with execution speed adjustment
- Static colour mode: selection of static colour
- Master/Slave mode: for synchronized operation of more units linked in a chain
- Linear and “stepless” transition between DMX values
- Flicker free operations (400Hz)
Structure and Power supply
- Sturdy die-cast aluminum body conceived for long-time durability and demanding applications
- Tempered glass front panel
- Internal Protection: IP66
- Pressure and temperature balance through GORE membrane vents
- Power (shuko) and data (xlr-3p) adapter cables included
- Double hanging bracket suitable for safe hanging and floor positioning
- Power unit: 100-240V 50/60Hz

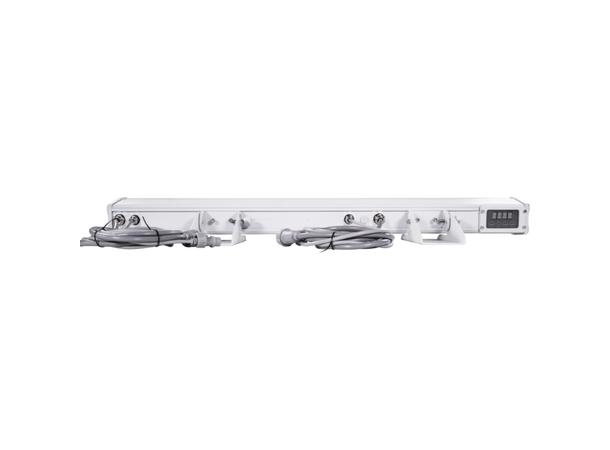

- IN / OUT wiring signal and power connections through IPCONs
- Average power consumption: 103W (output up to 16 projectors)
- Weight: 8,7 kg

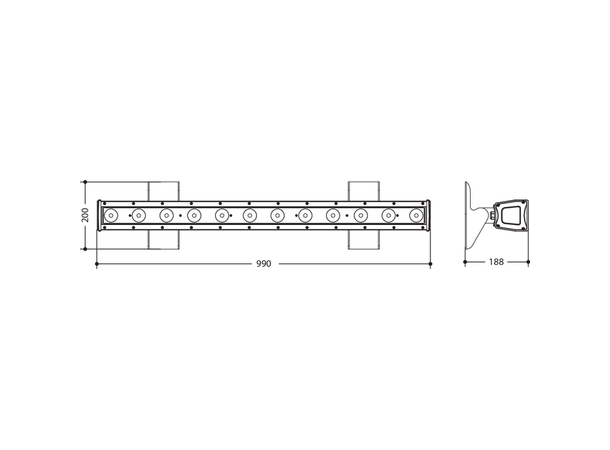

- Dimensions (WxHxD): 990x200x188 mm
| | arcSHINE12 |
| LED Source | 12x8W RGBW/FC high-efficiency LEDs |
| Input voltage | AC 100V-240V |
| Max Power | 103W |
| Optics | 15° (25°, 45° optional) |
| DMX control channels | 4, 6, 10, 48, 53 chs |
| Interface | DMX |
| Controllable sections | 1 |
| Mains connection | 1m cable (input/output) |
| Data connection | 1m cable (input/output) |
| Protection | IP65 |
| Operating temperature | -20°C/+45°C |
| Housing material | Die-cast aluminium |
| Housing color | White |
| Dimensions (WxHxD) | 990x200x188 mm |
| Weight | 8,7 kg |
Accessories (INCLUDED)
ARCLUMIL15D42 LED wall washer projector, 12 LEDs, IP66, 15° beam, 103W, 8,82Kg
