Features
Only 1 RU high
Balanced XLR Mic Inputs and Outputs
3 way EQ and Pan controls
Switchable Phantom power
User friendly layout
Flawless performance in any audio environment
Applications
Sound Reinforcement
Industrial Paging/BGM Systems
AV Systems/CD/VIDEO
Clubs/Gyms/Karaoke/Restaurants
Studio, Live and Broadcast Submixers
Mic Pre-amp/Mixer for Hard disk recording, Modular Digital Multitrack, ADAT
Innovation

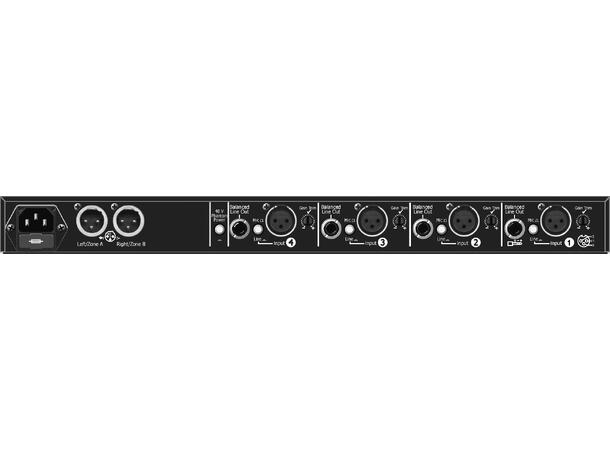

ARX introduces the MIXX 4 channel Microphone/Line mixer,with 3 way EQ on all four channels, plus Balanced XLR master outputs on the rear. It's the companion product to the MIXXMaster: another innovative mixing product. Use the MIXX for more microphone channels; use the MIXXMaster for more line channels.
Great Features

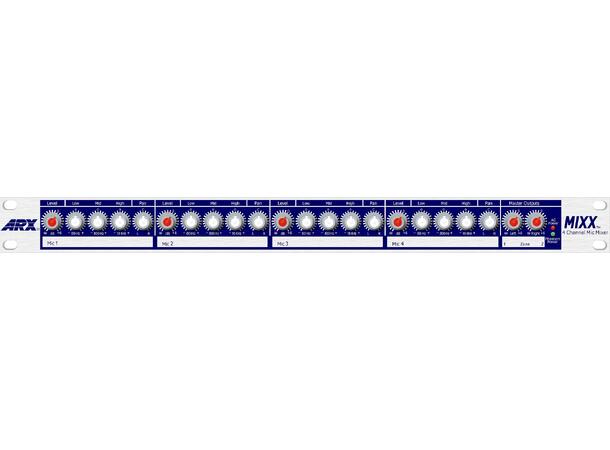

Each Microphone/Line input on the MIXX has 3 way EQ and Pan controls, plus Balanced Low Noise Microphone pre-amps. All 4 Channels also have a direct output, ideal for recording applications.
Switchable Phantom power is available on all four Mic Inputs
AC Power
Both the MIXX and MIXXMaster models are available as a 100 to 120V AC model or a 220 to 240V AC model, and AC power is connected to the unit via a standard three pin IEC connector, with built-in fuse and voltage change switch.
With its superb audio quality, massive headroom and intuitive interface, the MIXXMaster and the MIXX series are the total solution to today’s install requirements.
Input Gain:
Variable 20dB-60dB on each channel by rear panel trim control, plus Mic/Line input switch
Channel Level: Infinity to +6dB Gain
Channel Pan: True L and R constant level Control
Channel EQ:
Low 100Hz 15dB Cut/Boost Shelving
Mid 800HZ 15dB Cut/Boost Bell, Broad Q
High 10KHz 15dB Cut/Boost Shelving
Frequency Response: 20-20KHz +or- 1dB
Distortion: Below .005% 100Hz to 10KHz
Master Outputs Signal/Noise: -90dB unweighted.
Phantom Power:
+48VDC switchable on all Microphone Inputs
Microphone Inputs:
Electronically Balanced XLR connector
Channel Outputs:
150 Ohms Line Level jack connector
Master Outputs:
Electronically Balanced XLR 300 ohms Line Level
Max Output Level: +20dB
AC Power: Supplied as 100-120 VAC model or 220-240 VAC model 50/60HZ 8VA (8 watts) 3 pin IEC connector with removable cable
