USB-DI-Plus
The USB DI Plus is ARX's 'Second Generation' USB DI, and the first with Dual Mode audio interface - Digital and Analog.
In fact, it's "Two DI's in One! "
In Digital USB Mode
The USB DI Plus has an inbuilt 24 bit High Resolution digital to analog converter (DAC) which removes the need to use a Computer's existing internal sound card outputs, with their inherent noise and distortion.
The USB DI Plus installs as a fully compatible generic "Plug and Play" USB audio device, requiring no special driver program installation.
The USB DI Plus's DAC delivers Professional Line Level audio signals to Left and Right balanced XLR outputs.
When switched to USB mode the USB DI Plus is powered via the USB cable, so no batteries or phantom power required to use it.
In Analog Mode:
Many Tablet Devices, Phones and iPads have no direct USB Digital Audio output, and interfacing their Audio with the professional world of balanced audio can be problematic.
Switching the USB DI Plus to Analog mode effortlessly solves this problem by buffering the audio signal from the Headphone or Line output and producing a Professional Balanced Line Level audio signal on Left and Right balanced XLR outputs.
To ensure reliability, Analog mode is passive with no batteries or phantom power required for use.
Low Noise
Both the USB DI Plus Digital and Analog operating modes feature full transformer balanced output isolation. This eliminates earth loops / ground hum and helps remove extraneous interaction noise and distortion ensuring noise free operation even in the harshest audio environments.
Two Models
The USB DI Plus is available in two models:
USB DI Plus - Standard version, with no external gain / volume control, making it as Tamper Proof as possible. Straightforward Plug-and-Play makes it ideal for Production Companies.
USB DI Plus VC - Still Plug-and-Play but with an external gain / volume control allowing users to vary the sound levels at a distance from the mixing console.
Plug and Play
The USB DI installs as a fully compatible generic USB audio device, requiring no special driver program installation on Mac OSX and Win XP or later

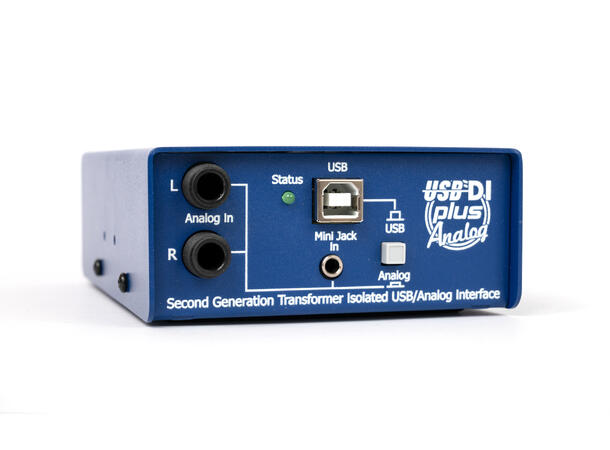

The front panel has a Type B USB input connector, plus a Mini-Jack stereo Analog input, as well as two 6.5mm Left and Right analog jack inputs. A front panel switch will switch between the USB or Analog Inputs

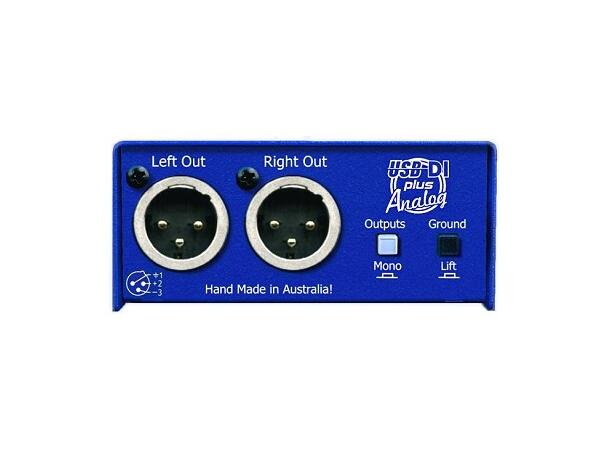

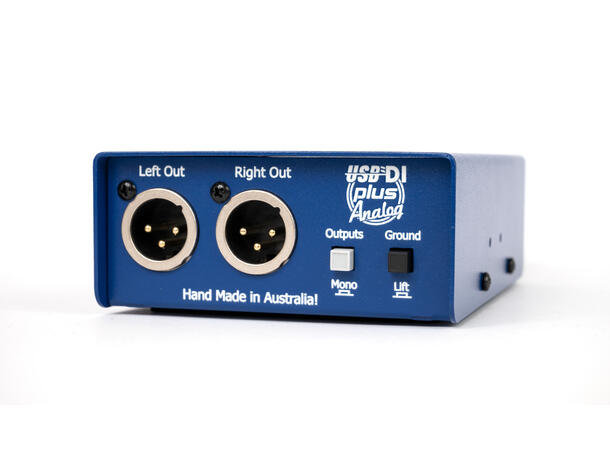

The rear has two transformer balanced analog audio XLR Line out connectors for connecting to any standard balanced analog input, with a Mono Outputs switch and an audio Ground lift switch
A USB status LED on the front panel indicates that the USB DI Plus is connected and operating in USB mode.
The USB DI Plus is housed in a heavy duty all-steel chassis finished in attractive matt textured polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad.
It is ideal for interfacing any USB equipped computer (especially notebook computers) with the balanced inputs of professional sound systems.
Security features include an optional bracket kit for under-table mounting.
The USB DI Plus includes a premium quality USB-A to USB-B cable, and is hand made in Australia
USB DI Plus Specifications
Input Connector Digital - USB type B port
Input Connectors Analog - Stereo Mini-Jack input, standard Left and Right 6.5mm Jacks
Codec 24 bit High Resolution, 44.1,48 and 96KHz
Output Impedance 300 Ohms Transformer Balanced
Output Level Maximum nominal output level 0dB
Output Noise
USB - System dependent
ISO transformer - Enviroment sensitive
Frequency Response 20 - 20 KHz ± 0.5 dB
Power Operating current via USB Port 80mA in uSB mode
Output Connectors
2 x Male XLR, wired Pin 2 + Hot, Pin 3 – Cold. Pin 1 - switchable via Ground Lift switch on rear
Construction
All-steel chassis, fibreglass PCB, epoxy printing, slip-resistant rubber base pad
System Requirements for USB operation
Computer running Windows XP, 7/8/10 or Mac running OS X or later
USB port
Precision engineered
With a couple of exceptions, all products in the Audibox range share a common footprint and manufacturing platform.
Offset lid screws enable close side-by-side mounting of multiple units.
