2.5-way passive loudspeaker, 360 W AES, 125dB SPL

Features:
Low frequency: 8'' woofer/2''v.c.
Mid frequency: 8'' midrange / 2'' v.c.
High frequency: 1'' coaxial driver/1.3''v.c.
Frequency response: 70-18000 Hz (±3dB)
ARK208CX full range speakers are suitable for medium installations or can be used as satellites in combination with the ARK12SA/SP sub.

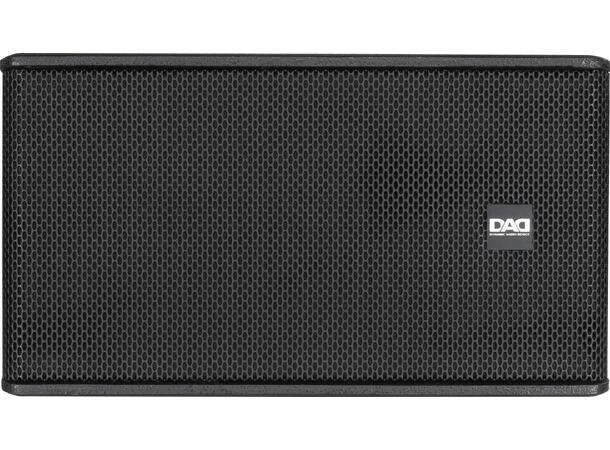

The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
Birch plywood enclosure.

LOUDSPEAKER
System type: 2.5 way passive

COMPONENTS
Low frequency: 8'' woofer/2''v.c.
Mid frequency: 8'' midrange / 2'' v.c.
High frequency: 1'' coaxial driver/1.3''v.c.

FEATURES
AES/program power: 360/720W
SPL max: 125dB @1m (free field)

ACOUSTICAL SPECIFICATIONS
Sensitivity: 97dB @1W/1m (free field)
Impedance: 8 Ohm
SPL cont/peak: 119/125dB @1m (free field)
Frequency response: 70-18000Hz (±3dB)
Coverage angle HxV: 100x100°
Cross over frequency: 200-2000Hz
Protection: H.F. signal compression
Suggest HPF range: 80/120Hz
Recommended amplifier up to: 720W /8Ohm

INPUT/OUTPUT CONNECTORS

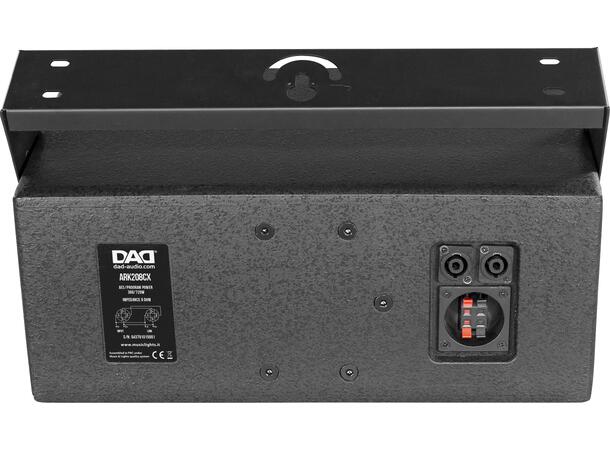

Input signal: 4pole - terminal clamp IN/OUT

CABINET CONSTRUCTION
Cabinet material: 12mm birchplywood

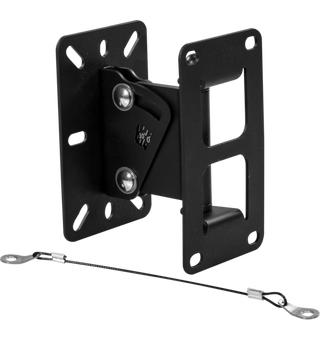

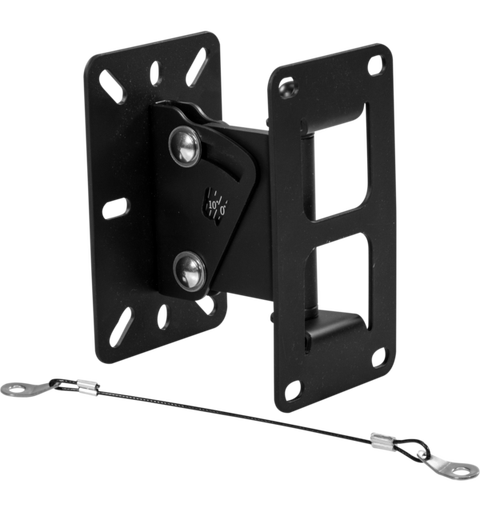

Sospension system: wall brackets (included)
Angle: 15° trapezoidal taper

PHYSICAL
Dimensions (WxHxD): 250.9x450x280mm
Weight: 13.2kg
