Bass-reflex active subwoofer, 2x700 W D-class amplifier, 130dB SPL

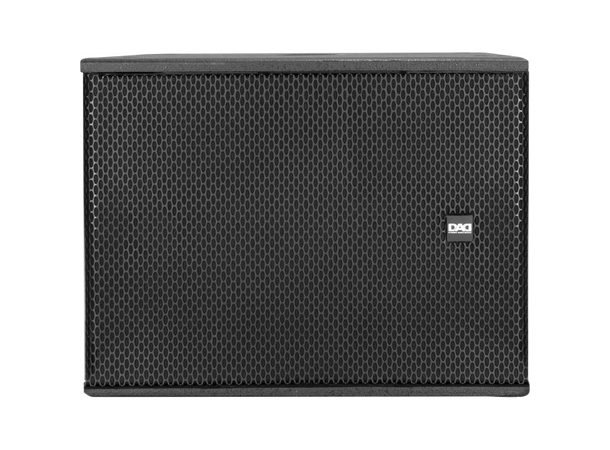

The ARK15SA powered subwoofer loudspeaker can drive up to 2 ARK 416MP column loudspeakers.The weight is particularly reduced thanks to the use of a neodymium woofer at a long excursion. The DAD logo on the grille can be rotated quickly to perform both vertically and horizontally.
Features:
Low frequency: 15'' Nd woofer/3'' v.c.
Frequency response: 40-200 Hz (±3dB).
2 x 700 W Class-D Amplifier
DSP presets for ARK416MP full range speakers
Optional transport accessories
LOUDSPEAKER
System type: active subwoofer
COMPONENTS
Low frequency: 15'' neodymium woofer / 4'' v.c.
FEATURES
SPL max: 130dB @1m (free field)
Built-in amp LF/MF-HF: 700+700W /4Ohm
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 124/130dB @1m (free field)
Frequency response: 40-200Hz (±3dB)
Coverage angle HxV: ° omnidirectional
ELECTRONICS
Amplifier: digital
Power: 700 +700W /4Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: RMS limiter, fast limiter, temp.
User controls: mic, line, bass boost
Built-in DSP: 28/56bit
Operating voltage/frequency: 220 V~240 V/50 Hz
INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT
Output signal: 2 x 4 pole
Power connection: powerCON IN/OUT
CABINET CONSTRUCTION
Cabinet material: 15mm plywood
Sospension system: M20 mounting pole
PHYSICAL
Dimensions (WxHxD): 440x580x560mm
Weight: 32kg
