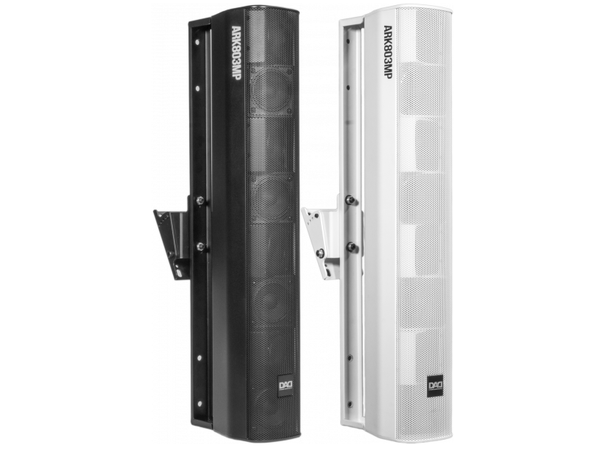

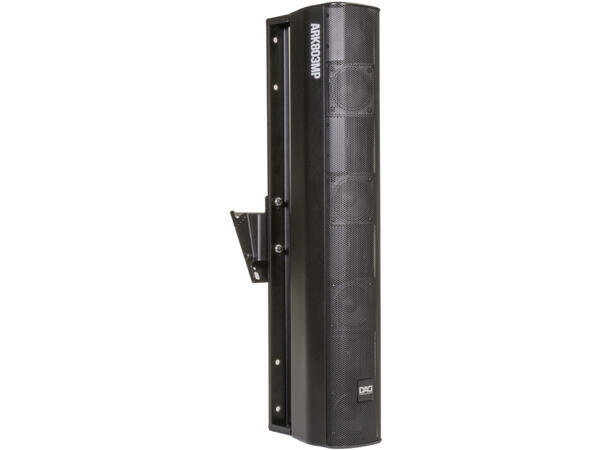

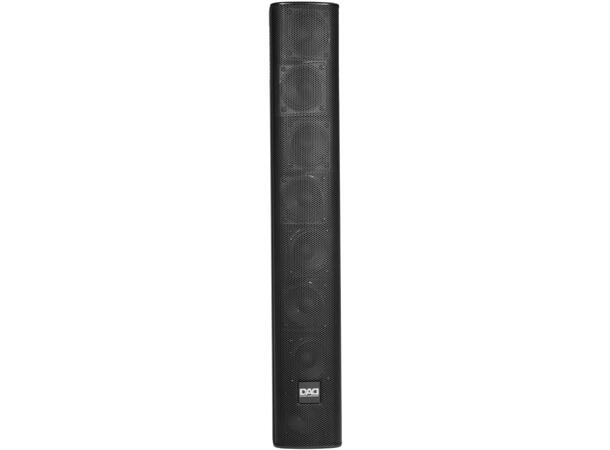

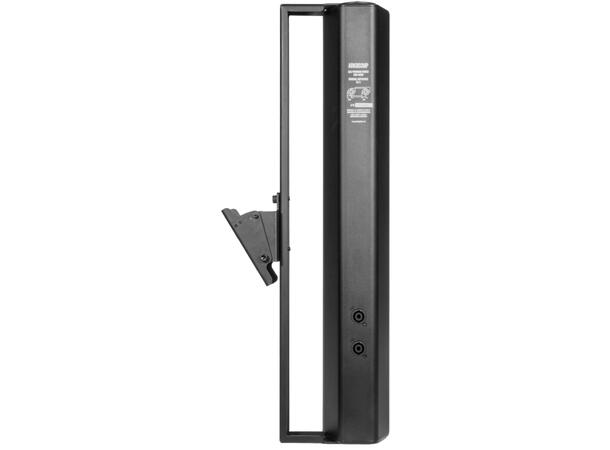

Wall mounted column loudspeaker, 200 W AES, 120dB SPL
Features:
Mid frequency: 8x3'' midrange / 0.75'' v.c.
Frequency response: 135-17000 Hz (±3dB)
Coverage angle HxV:115x20°
The modules with 8 transducers of 3” represent the solution to sound in deep environments particularly difficult, where quality and intelligibility are required.
Column modules with an off-axis transducer for wide horizontal dispersion.
Aluminium frame for a very robust yet lightweight design that fits in with any environment.
LOUDSPEAKER
System type: column loudspeaker
COMPONENTS
Mid frequency: 8x3'' midrange / 0.75'' v.c.
FEATURES
AES/program power: 200/400W
SPL max: 120dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
Sensitivity: 95dB @1W/1m (free field)
Impedance: 16 Ohm
SPL cont/peak: 114/120dB @1m (free field)
Frequency response: 135-17000Hz (±3dB)
Coverage angle HxV: 115x20°
Suggest HPF range: 140/180Hz
Recommended amplifier up to: 400W /16Ohm
INPUT/OUTPUT CONNECTORS
Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
Cabinet material: 3mm aluminum die cast
Sospension system: wall brackets (included)
PHYSICAL
Dimensions (WxHxD): 110x690x148mm
Weight: 7.5kg
