Active loudspeakers, D+AB class bi-amp, 2-way 450 W+50 W, 128db SPL
Features:
Low frequency: 15'' Nd woofer/3''v.c.
High frequency: 1'' Nd driver/1.7''v.c.
Frequency response: 55-18000 Hz (±3dB)
User controls: mic, line, master, eq LF-HF
Reproduction of voice and music for live and recorded performances
Cabinet material: polypropilene
For sound installations in environments requiring dynamics and sound pressure
LOUDSPEAKER
System type: active 2 way
COMPONENTS
Low frequency: 15'' neodymium woofer / 3'' v.c.
High frequency: 1'' neodymium driver / 1.4'' v.c.
FEATURES
Built-in amp LF/HF: 450+50W /4/8Ohm
SPL max: 128dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
SPL cont/peak: 122/128dB @1m (free field)
Frequency response: 55-18000Hz (±3dB)
Coverage angle HxV: 80x60°
Cross over frequency: 1500Hz
ELECTRONICS
Amplifier: digital + AB class
Power: 450+50W /4/8Ohm
Input sensitivity: 4 dBu (1,228Vrms) adjustable
Protection: limiter temp.
User controls: mic, line, master, eq LF-HF
Built-in DSP: 54bit - sampling rate 48kHz
Operating voltage/frequency: 220 V~240 V/50 Hz

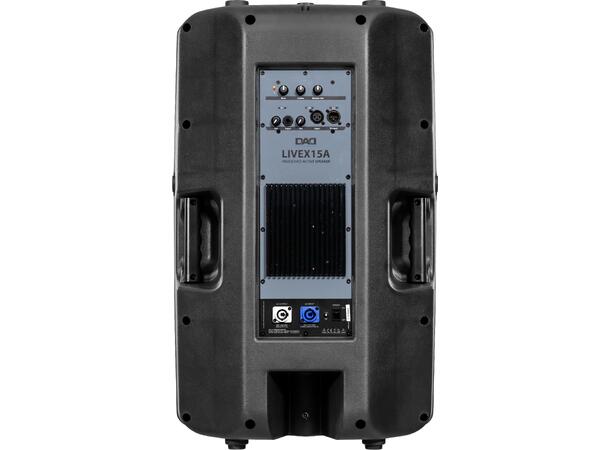

INPUT/OUTPUT CONNECTORS
Input signal: XLR IN/OUT, jack 6.35 mm
Power connection: type power-con
CABINET CONSTRUCTION
Cabinet material: 4mm polypropilene
Sospension system: eyebolt, 35 mm pole mount

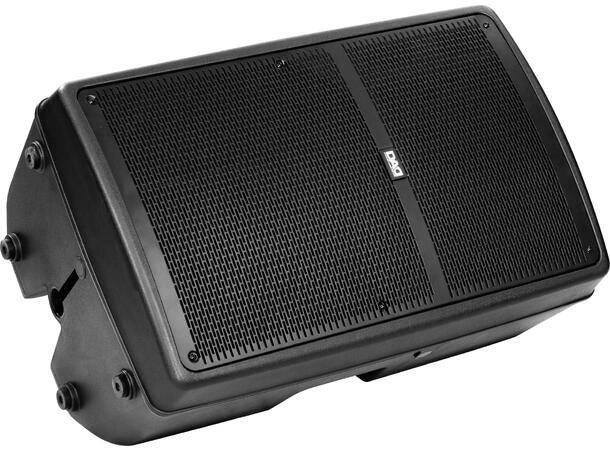

Angle: 45° monitor applications
Handles: 2 on side
PHYSICAL
Dimensions (WxHxD): 475x740x400mm
Weight: 23.5kg
