Doughty code: T55785

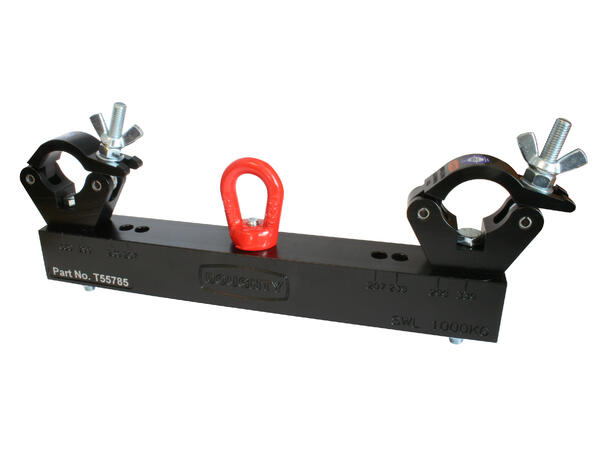

Manufactured from solid high tensile aluminium, the Solid Hanging Truss adaptor features a 'Bow Nut' to accommodate larger hooks.

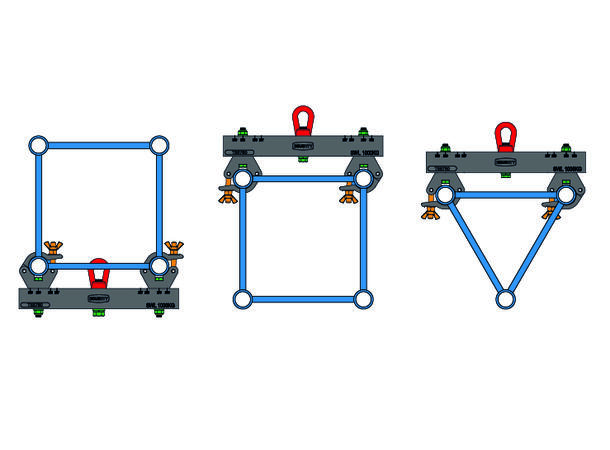

This Truss adaptor is pre-drilled to fit most major brands of truss an supplied fitted with two Slimline Doughty Clamps.

For a comprehensive list of truss dimensions see the link below.

Available in black or polished aluminium.

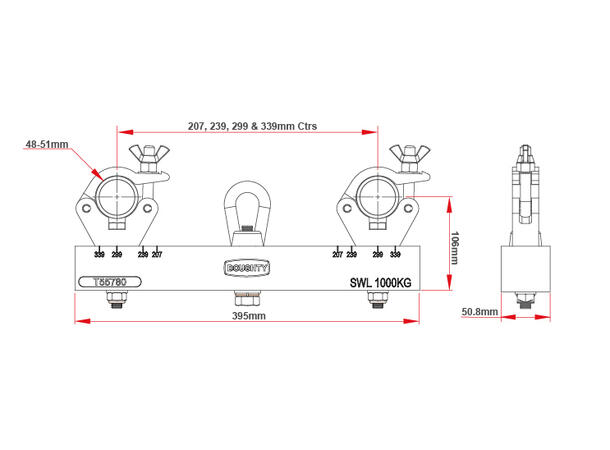

SWL: 1000 Kg

Tube Diameters: 48 to 51mm

Truss Sizes: 207, 239, 299 & 339mm Ctrs

Bow Nut ID: 25 x 40mm

Weight: 4.0 Kg
