IC3

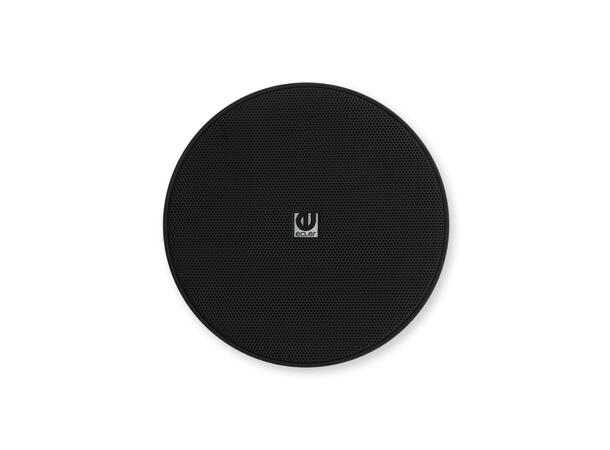

IC3 is an in-ceiling installation loudspeaker with a compact halogen-light-shape design, a 3" driver, 10WRMS@8ohm, and a 70/100V line transformer with 1.5/3/6W power connections.
Main features
- 1-way speaker for false ceilings
- 3" polypropylene woofer
- Power 10W RMS@8 ohm
- Sensitivity (1W/1m) 86dB SPL
- Built-in transformer
- External diameter 105mm
- Cut out diameter 90mm

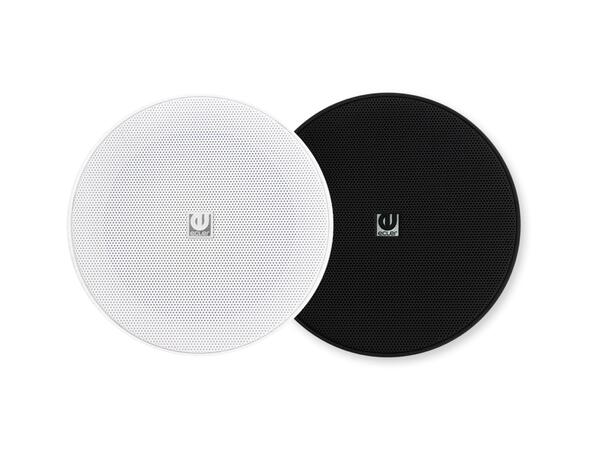

- Available in black (RAL9004) or white (RAL9003)
- Installation system: spring clips (no tools needed)
Technical specifications
- Effective Freq. Range: 110Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 147°x147° (HxV)
- Power handling: 10W RMS/40W Peak
- Sensitivity: 86dB (1W/1m)
- Maximum SPL: 96dB continuous/102dB peak

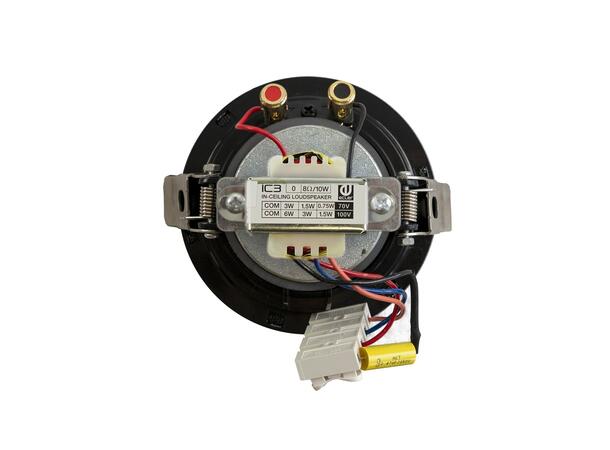

- Power options (Hi Z Multi-tap): 100V: 6W/3W/1.5W/8 ohm, 70V: 3W/1.5W/0.75W/8 ohm
- Recommended amplifier power: 20W RMS
- Ways: 1-way
- Driver: 3" woofer
- Nominal impedance: 8 ohm
- Connection type: Terminal block
- Power type selector: Built-in selector
- Installation options: Ceiling, wall
- Enclosure material: ABS
- Grille material: Aluminium rust proof
- Mounting system: Spring clips
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 100mm/3.94in
- Internal diameter: 85mm/3.35in
- Recommended cut out diameter: 85mm/3.35in
- Required depth: 95mm/3.74in
- Ceiling thickness: No limit min, 50mm/1.96in max
- Finished colour: White (RAL9003) or black (RAL9004)
- Weight: 0.5kg/1.10lb
- Pieces per box: 2 units
- Shipping dimensions: 120x130x230mm/4.7x5.1x9.0in
- Shipping weight: 0.6kg/4.18lb
