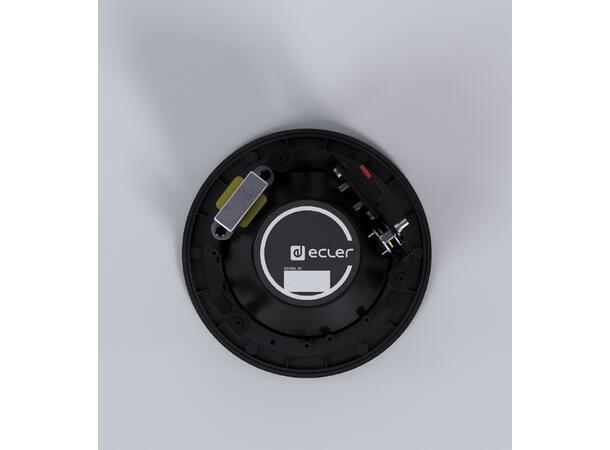

IC6i
IC6i is a 2-way loudspeaker for 70/100V and low impedance sound solutions, with a 6.5" woofer and 1" tweeter, frameless magnetic grill.
Main features
- Two-way ABS speaker, 40WRMS
- 6.5" woofer/1" tweeter
- Built-in audio transformer for 70/100V use
- Polypropylene woofer resists heat/humidity
- Frameless magnetic grill
- Front grill removable for painting
- Ecler logo removable
- Clip-type input terminals and low/high impedance power tap selector
- Cutting template included
- Support system with 3 rotating tabs
- Available in black (RAL9005) or white (RAL9003)
- EASE files available
Technical specifications
- Effective Freq. Range: 75Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 163° conical
- Power handling: 40W RMS/160W Peak
- Sensitivity: 93dB (1W/1m)
- Maximum SPL: 109dB continuous/115dB peak
- Power options (Hi Z Multi-tap): 100V: 2.5/5/7.5/15W, 70V: 1.25/2.5/3.75/7.5W
- Recommended amplifier power: 80W RMS
- Ways: 2-ways full range
- Low frequency driver: 6.5" Woofer
- High frequency driver: 1" Tweeter
- Nominal impedance: 8 ohm
- Connection type: Clip-type input terminals
- Installation options: In-ceiling/In-wall
- Enclosure material: ABS plastic
- Grille material: Iron
- Grille fixing system: Magnets
- Mounting system: 3 rotating tabs
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- External diameter: 213mm/8.39in
- Internal diameter: 178mm/7.01in
- Recommended cut out diameter: 180mm/7.09in
- Required depth: >73mm/2.87in
- Included accessories: Cutting template
- Optional accessories: Ecler IC-TB6
- Finished colour: White (RAL9003)/Black (RAL9005)
- Dimensions: 213x213x72mm/8.39x8.39x2.83in
- Weight: 1.6kg/3.53lb
- Pieces per box: 2
- Shipping dimensions: 265x260x255mm/10.43x10.24x10.04in
- Shipping weight: 4kg/8.82lb
