MIA-81

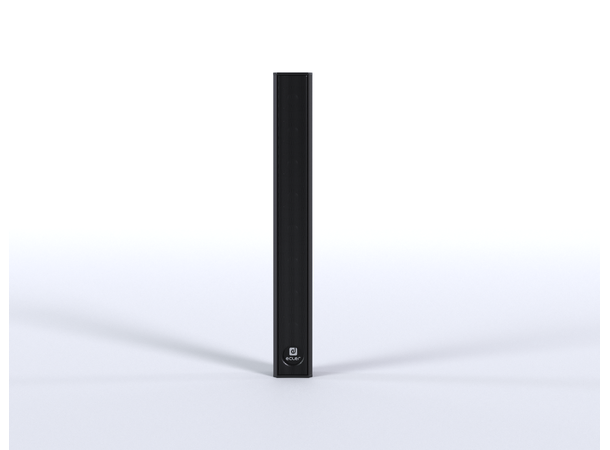

MIA-81 is an elegant, compact column loudspeaker built in a single aluminium piece, with 8x1.5" drivers behaving as a mini line array, IP44 rated.
Main features
- Column passive loudspeaker for surface mounting
- 8x1.5" woofers Mini In-line Array
- Possibility of working in 16 ohm or 64 ohm by selecting behind the logo without removing the grille
- Aluminium one-piece non-resonant compact enclosure
- Stack Output

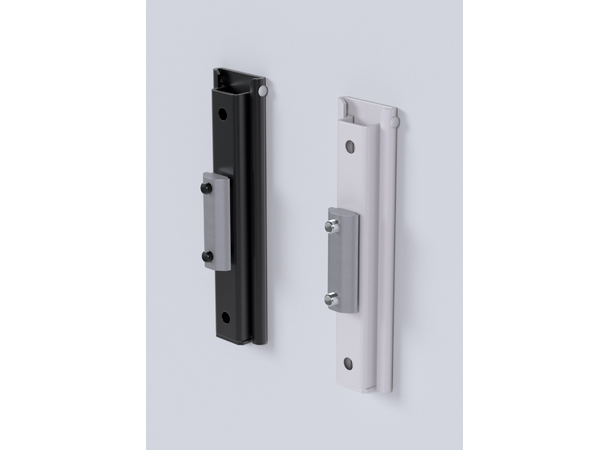

- FLATY bracket included for wall mounting (stainless steel, adjustable at any point along the column)
- Weather-protected with IP-44 rating
- Available in black (RAL9005) and white (RAL9003)
- EASE files available
Technical specifications
- Effective Freq. Range: 175Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 235°x58° (HxV)
- Power handling: 40W RMS/160W Peak
- Sensitivity: 98dB
- Maximum SPL: 114dB continuous/120dB peak
- Recommended amplifier power: 80W RMS
- Ways: 1-way full range
- Driver: 8x1.5" Loudspeaker
- Nominal impedance: 16 ohm/64 ohm
- Connection type: Double INPUT/LINK connector, Euroblock type
- Power type selector: Front selection by toggle switch
- Installation options: Surface/Wall mounting
- Environmental: IP44
- Enclosure material: Aluminium
- Grille material: Aluminium
- Grille fixing system: Side insertion mount system
- Mounting system: Stainless Steel FLATY Wall Bracket
- Operating temperature: Min -20°C/-4°F, Max 70°C/158°F
- Operating humidity: <85% HR
- Storage temperature: Min -20°C/-4°F, Max 70°C/158°F
- Storage humidity: <90% HR
- Included accessories: FLATY Wall-mount bracket, 2x Euroblock connector
- Finished colour: White (RAL9003) or Black (RAL9005)
- Dimensions: 58x448x67mm/2.28x17.64x2.64in
- Weight: 1.2kg/1.64lb
- Pieces per box: 1
- Shipping dimensions: 135x655x160mm/5.31x25.79x6.30in
- Shipping weight: 1.9kg/4.18lb
