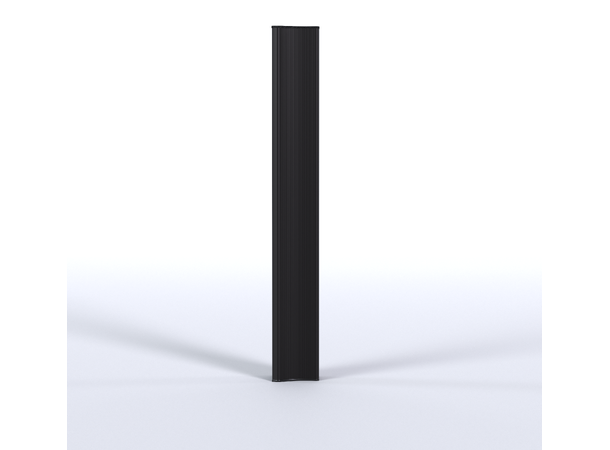

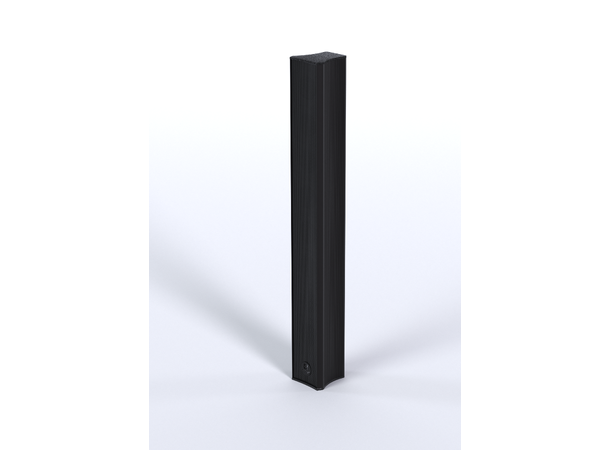

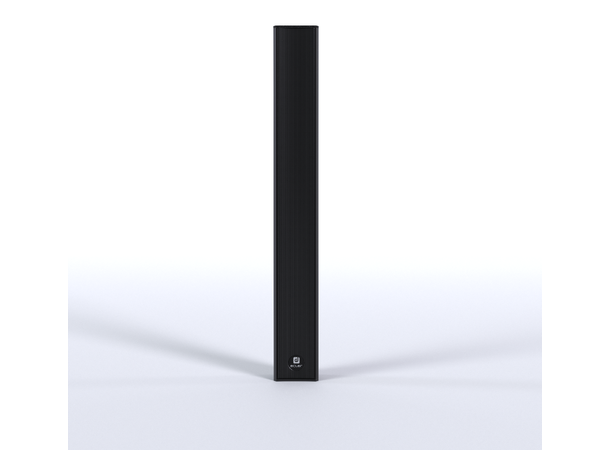

MIA-82
Mini array column loudspeaker built as a single aluminium piece, 8x2.5" drivers, 150W RMS, IP44 rated for outdoor use.
Main features
- Column passive loudspeaker for surface mounting

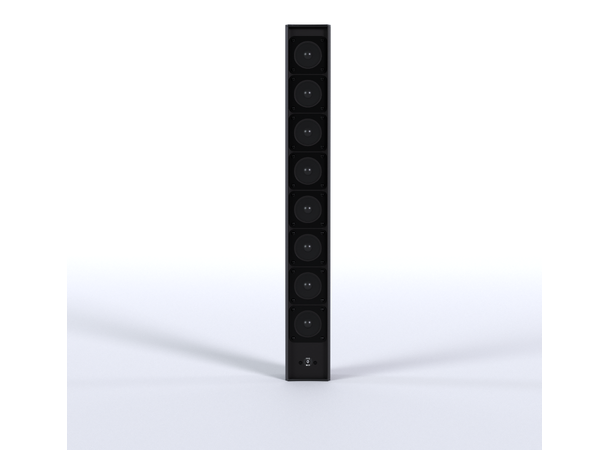

- 8x2.5" woofers Mini In-line Array

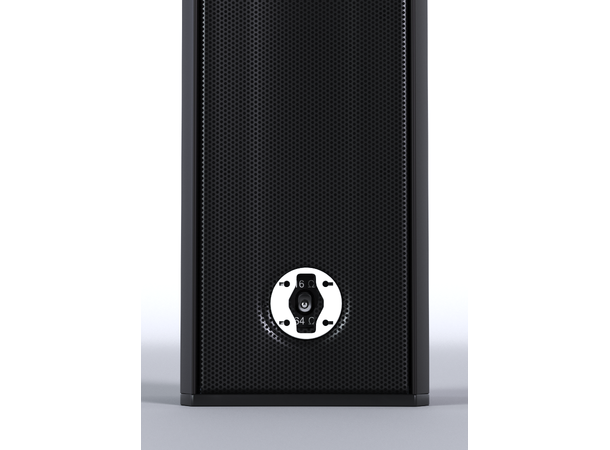

- Selectable 16 ohm or 64 ohm behind the logo without removing the grille
- Aluminium one-piece non-resonant enclosure
- Stack Output

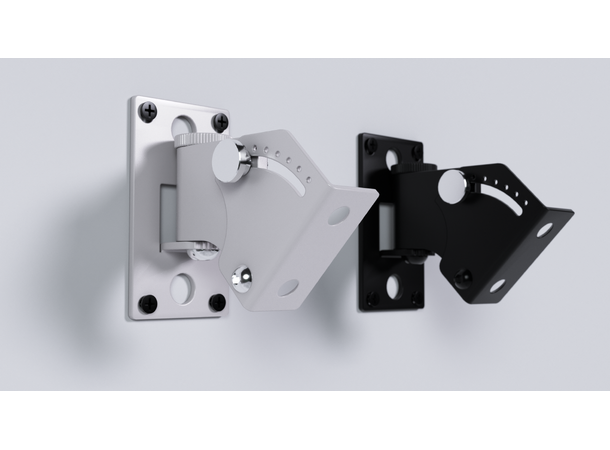

- HANDY pan/tilt wall-mount bracket included (stainless steel)
- Weather-protected IP-44 rating
- Available in black and white
- EASE files available
Technical specifications
- Effective Freq. Range: 165Hz-20kHz
- Coverage angle/Dispersion: 165°x41° (HxV)
- Power handling: 150W RMS/600W Peak
- Sensitivity: 105dB
- Maximum SPL: 127dB continuous/133dB peak
- Power options (Hi-Z): 100V:160W, 70V:80W (switched to 64 ohm)
- Recommended amplifier power: 300W RMS
- Ways: 1-way full range
- Driver: 8x2.5" Loudspeaker
- Nominal impedance: 16 ohm/64 ohm

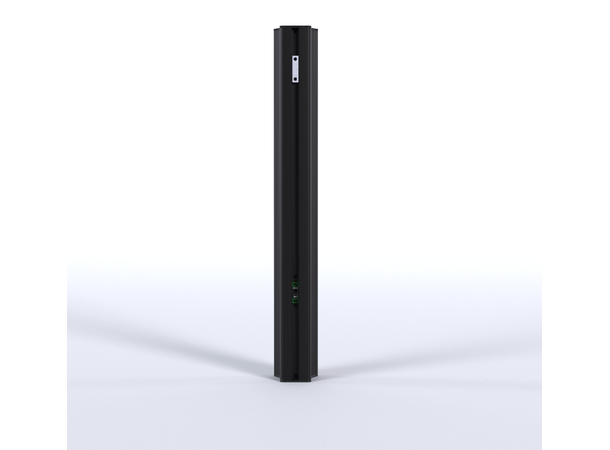

- Connection type: Double INPUT/LINK connector, Euroblock type
- Installation options: Surface/Wall mounting
- Environmental: IP44
- Enclosure material: Aluminium
- Mounting system: Stainless Steel HANDY Wall Bracket, pan/tilt 90°x45°
- Dimensions: 83 x 648 x 87 mm
- Weight: 2.65 kg
- Colours: White (RAL9003) or Black (RAL9005)
