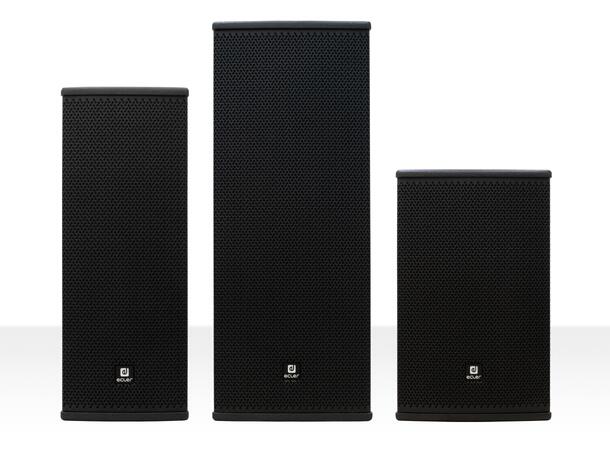

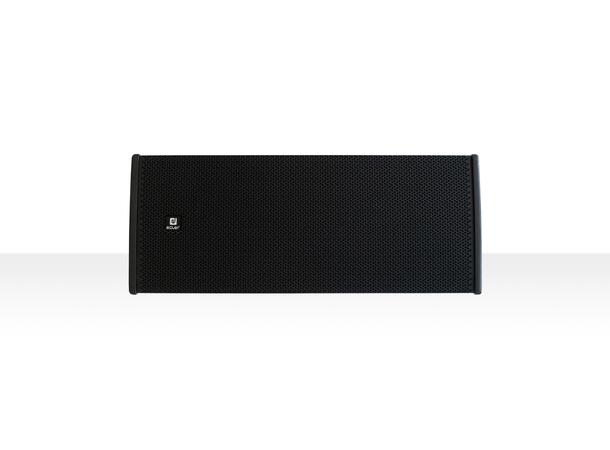

ARQIS208i
ARQIS208i is a 2-way wooden loudspeaker cabinet, 300 WRMS @ 8 ohm, 2 x 8" woofers and 1" HF compression driver, "U" shape wall bracket for tilt adjustment.
Main features
- Full range, 2-way architectural loudspeaker
- 300 WRMS @ 8 ohm
- 2 x 8" low frequency woofer
- 1" HF compression driver (rotatable)

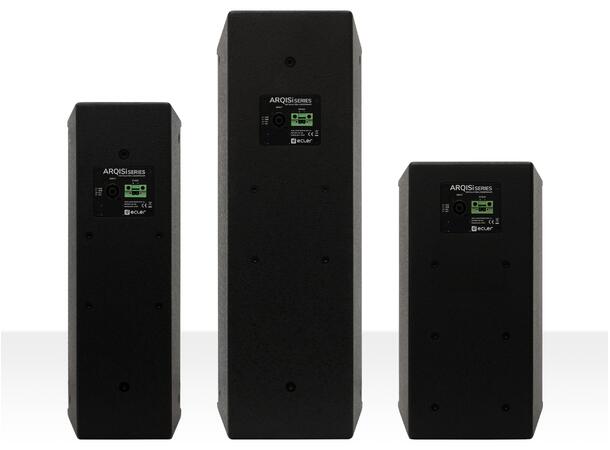

- Double INPUT/STACK Euroblock+Speakon connector with security screws
- "U" shape wall bracket included (tilt adjustment)
- 4x M6 & 12x M8 cabinet flying points
- Metal safety sling included
- Available in black or white
- EASE files available
Technical specifications
- Effective Freq. Range: 73 Hz-20 kHz (-10dB)
- Coverage angle/Dispersion: 130°x30° (HxV)
- Power handling: 300 W RMS / 1200 W Peak
- Sensitivity: 94 dB (1W/1m)
- Maximum SPL: 119 dB continuous / 125 dB peak
- Recommended amplifier power: 600 W RMS
- Ways: 2-ways full range
- Low frequency driver: 2 x 8" woofer
- High frequency driver: 1" rotatable compression driver
- Nominal impedance: 8 ohm
- Crossover filter: 2,6 kHz
- Recommended High-Pass protection filter: 70 Hz, min 12 dB/octave
- Connection type: 1 x Euroblock & 1 x Speakon®
- Installation options: Surface, wall, desktop
- Environmental: IP31
- Enclosure material: MDF
- Grille material: Steel
- Grille fixing system: Screw fixation
- Flying points: 4 x M6 & 12 x M8
- Operating temperature: -20°C to 70°C
- Operating humidity: <90% HR
- Storage temperature: -20°C to 70°C
- Storage humidity: <90% HR
- Included accessories: U Bracket / 5mm / 6mm Allen keys
- Finished colour: White (RAL9003) or Black (RAL9005)
- Dimensions: 610 x 244 x 280 mm
- Weight: 14.8 kg
- Pieces per box: 1
- Shipping dimensions: 670 x 325 x 370 mm
- Shipping weight: 16.4 kg
