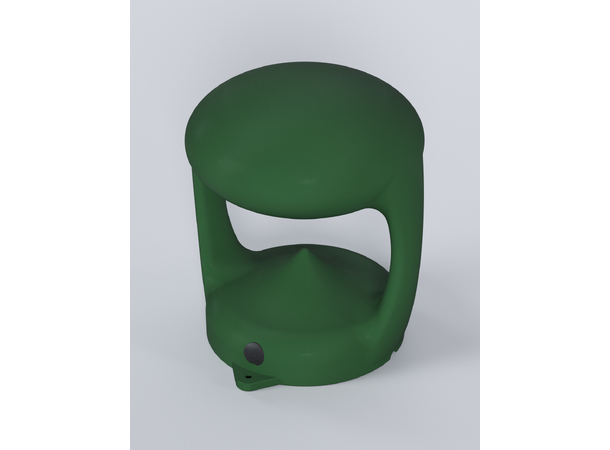

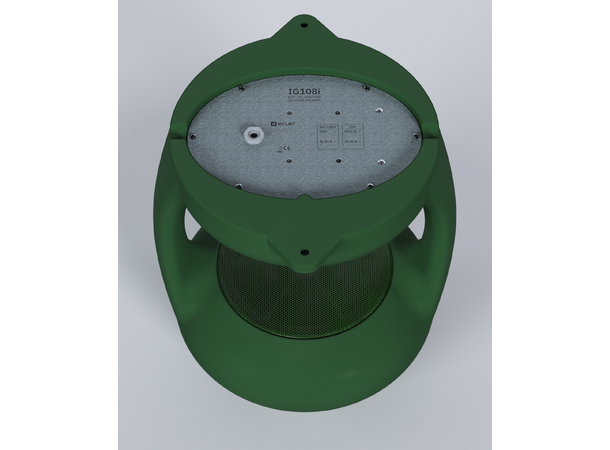

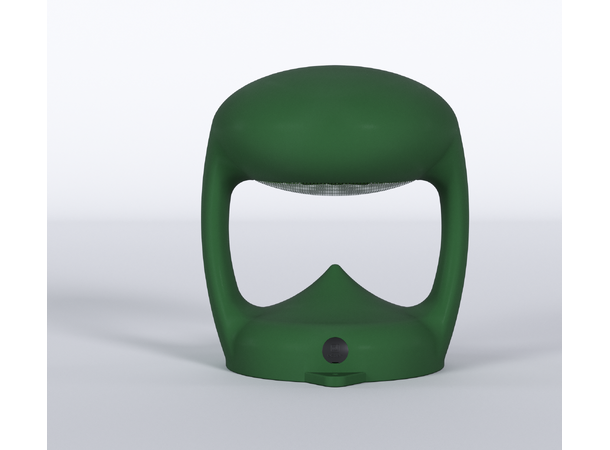

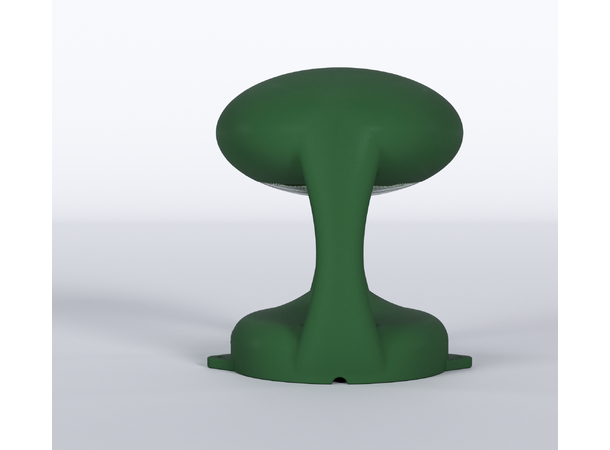

IG108i
IG108i is a ground-standing speaker, water-resistant (IP65), with a 360° omnidirectional horizontal dispersion pattern, ideal for outdoor music and paging applications.
Main features
- IP65 outdoor rated loudspeaker
- 8 ohm and 70/100V (10/20/40/80W tap switch)

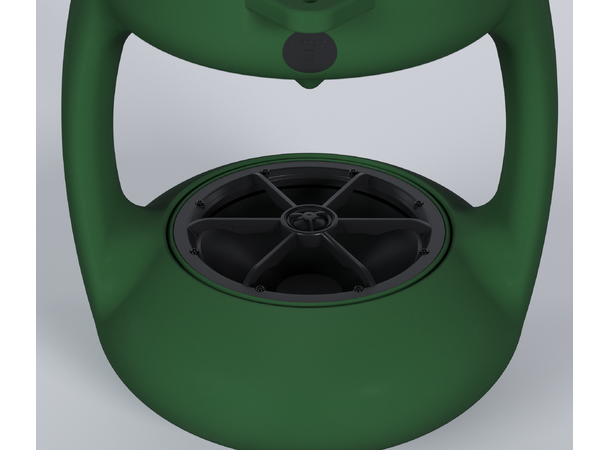

- 8" Kevlar woofer and 1" silk dome tweeter
- Frequency response (-10dB) 61Hz-20kHz
- Omni-directional 360° horizontal coverage pattern (4-6m radius per unit)
- Security ground bracket included
- Available in green (RAL6028) and sand (RAL1001) colours
- EASE files available
Technical specifications
- Effective Freq. Range: 61Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 360°
- Power handling: 100W RMS / 200W Program / 400W Peak
- Sensitivity: 92dB (1W/1m)
- Maximum SPL: 112dB continuous / 118dB peak
- Power options (Hi Z Multi-tap): 100V 80/40/20/10W/8 ohm; 70V 40/20/10/5W
- Recommended amplifier power: 200W RMS
- Ways: 2-ways full range
- Low frequency driver: 8" Kevlar woofer
- High frequency driver: 1" Silk Dome Tweeter
- Nominal impedance: 8 ohm
- Connection type: External multi-wire cable with waterproof connection plug included

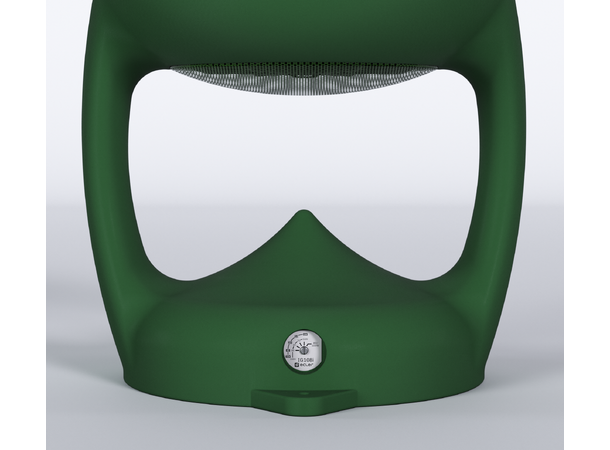

- Power type selector: Tap selector
- Installation options: Above-ground mounting
- Environmental: IP65
- Enclosure material: Polyethylene
- Grille material: Aluminium
- Operating temperature: -20°C to 70°C
- Operating humidity: <85% HR
- Storage temperature: -20°C to 70°C
- Storage humidity: <90% HR
- Included accessories: 3x Waterproof wire connectors
- Cable length: 0.85 m
- Finished colour: sand (RAL1001) or green (RAL6028)
- Dimensions: 392 x 440 x 390 mm
- Weight: 6.70 Kg
- Pieces per box: 1
- Shipping dimensions: 440 x 528 x 440 mm
- Shipping weight: 10.60 Kg
