AMBIT-16

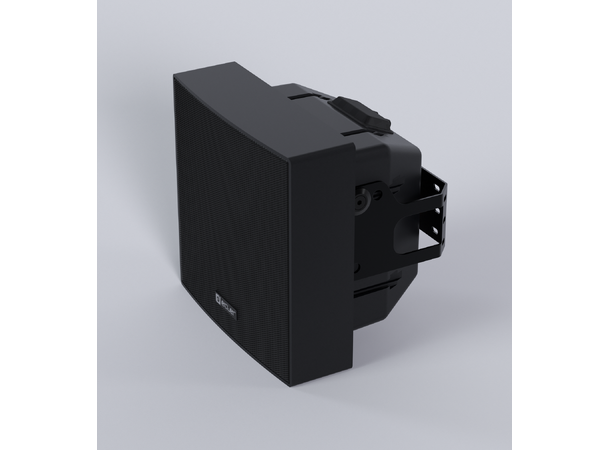

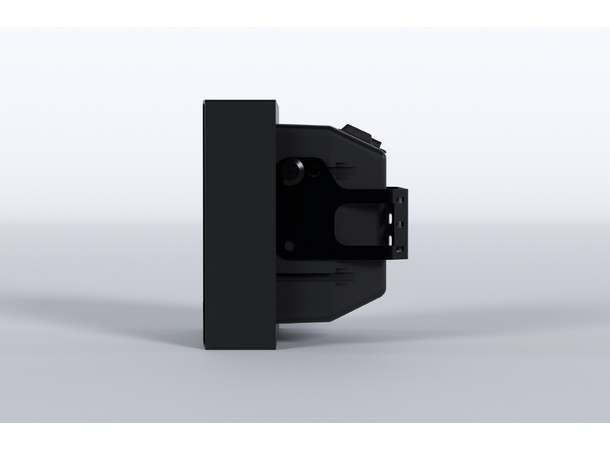

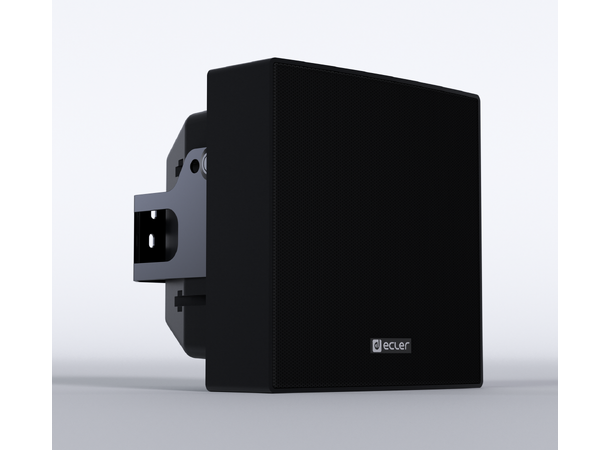

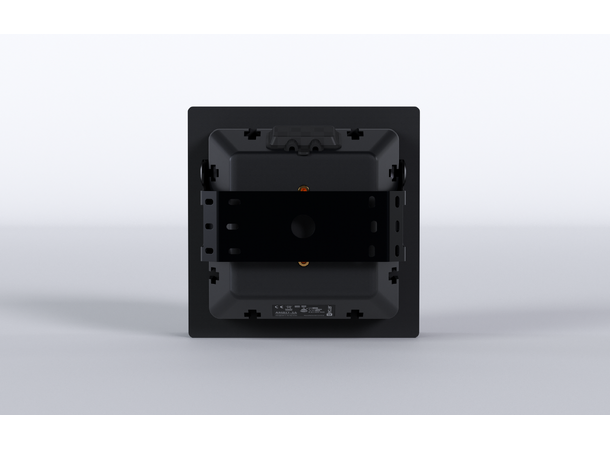

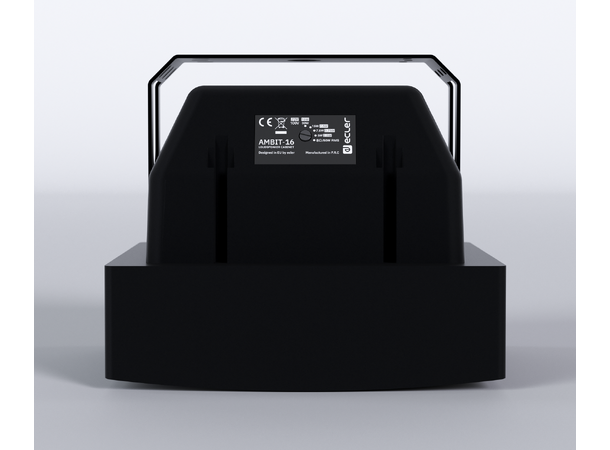

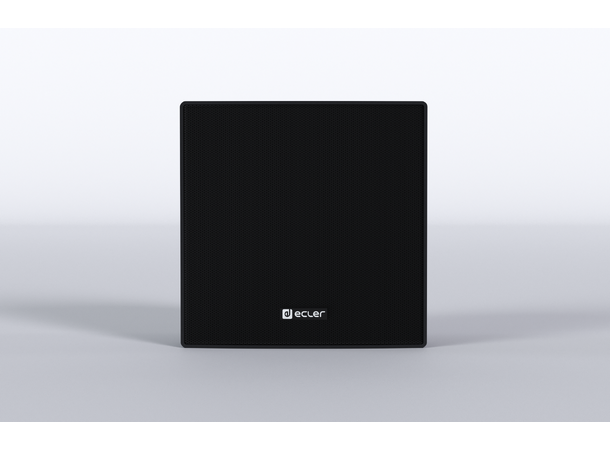

AMBIT-16 is a compact 2-way coaxial loudspeaker cabinet with neutral and discreet design, 6.5" woofer and 1" tweeter, suitable for low and high impedance lines.
Main features
- ABS 2-way architectural loudspeaker
- 6.5" woofer / 1" tweeter
- Built-in audio transformer for 100V applications
- 8 ohm and 70/100V operation selector
- Available in black (RAL9005) and white (RAL9016)
- Spring loaded input terminals
- IP54 rated
- Anti UV cabinet
- Waterproof rubber cover for connectors included
Technical specifications
- Effective Freq. Range: 97Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 143°x140° (HxV)
- Power handling: 50 W RMS / 200 W Peak
- Sensitivity: 91 dB (1W/1m)
- Maximum SPL: 108 dB continuous / 114 dB peak
- Power options (Hi Z Multi-tap): 100V 5/7.5/15/30W; 70V 2.5/3.75/7.5/15W
- Recommended amplifier power: 100 W RMS
- Ways: 2-ways full range
- Low frequency driver: 6,5" woofer
- High frequency driver: 1" tweeter
- Nominal impedance: 8 ohm
- Connection type: Spring loaded input terminals
- Installation options: Surface, ceiling, corner (wall mount)
- Environmental: IP54 rated
- Enclosure material: ABS plastic
- Grille material: Aluminium
- Operating temperature: -20°C to 70°C
- Operating humidity: <85% HR
- Storage temperature: -20°C to 70°C
- Storage humidity: <90% HR
- Included accessories: On-wall hardware, safety sling, screws and wrench, waterproof rubber cover for connectors
- Finished colour: White (RAL9016) or black (RAL9005)
- Dimensions: 210 x 210 x 160 mm
- Weight: 2.75 kg
- Pieces per box: 2
- Shipping dimensions: 420 x 272 x 465 mm
- Shipping weight: 6.10 kg
