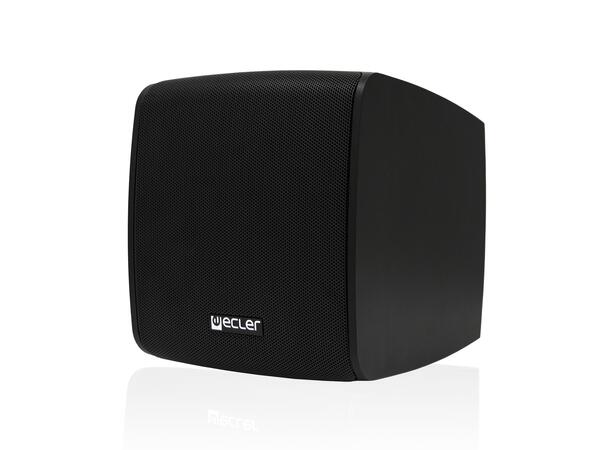

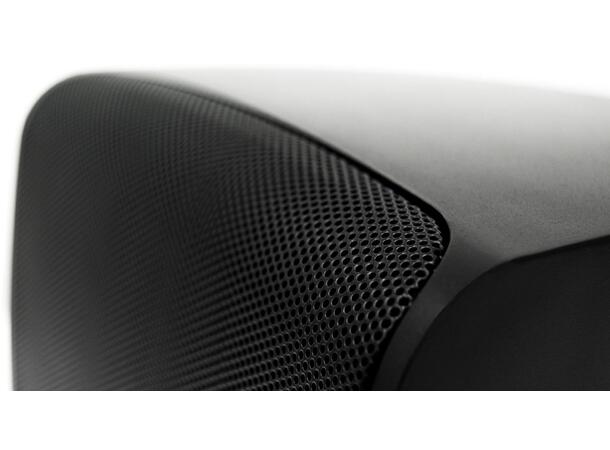

eMOTUS5OD
eMOTUS5OD is a 5" loudspeaker cabinet ready for outdoor installation, cost-effective and with a unique design, for theme parks, gardens, urban spaces, leisure/health/sport centres, residential outdoor areas etc.
Main features
- 2-way cabinet, 5" woofer and 1" tweeter
- 40WRMS @ 8 ohm
- Power selector 3.75/7.5/15/30W @ 100V & 8 ohm, 15/7.5/3.75/1.8W @ 70V & 8 ohm
- Outdoor design
- IP65 rated
- Back rubber cover for connections
- Includes wall bracket and security steel cable
- Available in black and white
Technical specifications
- Effective Freq. Range: 77 Hz-20 kHz (-10dB)
- Coverage angle/Dispersion: 150°x150° (HxV)
- Power handling: 40 W RMS / 160 W Peak
- Sensitivity: 85 dB (1W/1m)
- Maximum SPL: 101 dB continuous / 107 dB peak
- Power options (Hi Z Multi-tap): 100V 30/15/7.5/3.75W/8 ohm; 70V 15/7.5/3.75/1.8W/8 ohm
- Recommended amplifier power: 80 W RMS
- Ways: 2-ways full range
- Low frequency driver: 5" woofer
- High frequency driver: 1" coaxial tweeter
- Nominal impedance: 8 ohm

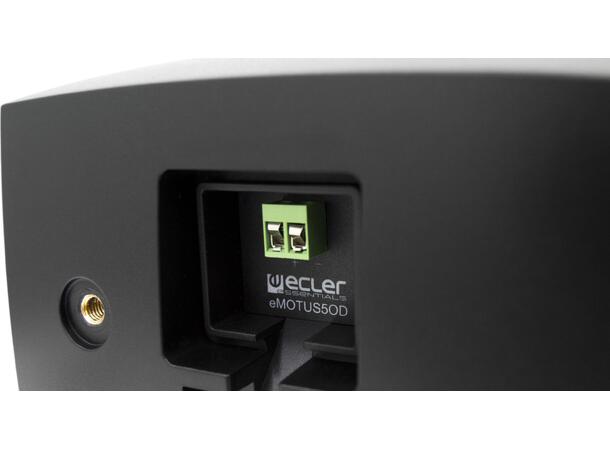

- Connection type: 2-terminal input Euroblock connector
- Power type selector: Selectable transformer tap
- Installation options: Surface, desktop
- Environmental: IP65 rated
- Enclosure material: ABS cabinet
- Grille material: Aluminium grille
- Mounting system: ABS bracket
- Operating temperature: -20°C to 70°C
- Operating humidity: <85% HR
- Storage temperature: -20°C to 70°C
- Storage humidity: <90% HR
- Included accessories: Wall-mount bracket, adhesive legs, back rubber cover & security steel cable
- Optional accessories: PCS124 cluster-mount system
- Finished colour: White (RAL9003) or black (RAL9005)
- Dimensions: not incl. brackets 173x180x181mm; incl. brackets 173x180x248mm
- Weight: not incl. brackets 2.2kg; incl. brackets 2.5kg
- Pieces per box: 2x pieces
- Shipping dimensions: 230 x 220 x 460 mm
- Shipping weight: 5.0 kg
