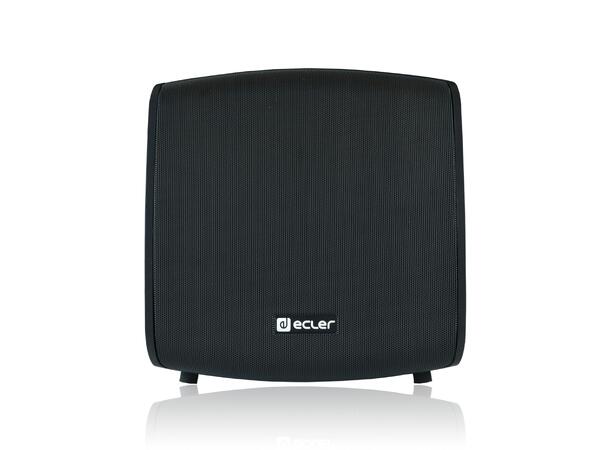

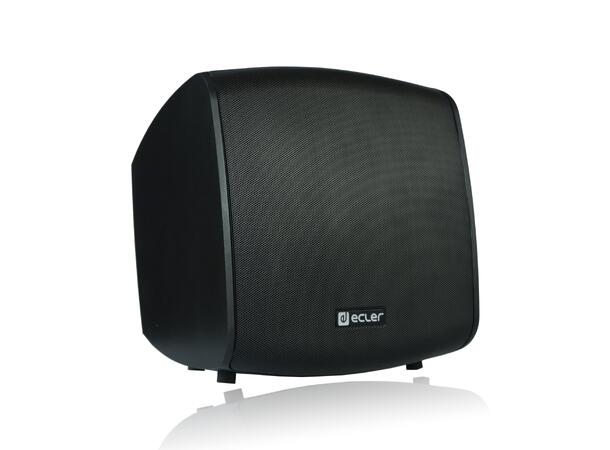

eMOTUS8OD
eMOTUS8OD is a 2-way full range loudspeaker cabinet with eMOTUS unique design, 8" woofer and 1.4" tweeter, suitable for low and high impedance lines, ready for indoor/outdoor (IP65).
Main features
- 2-way cabinet, 8" woofer and 1.4" tweeter
- 100WRMS @ 8 ohm
- Power selector 60/30/15/7.5/3.5W @ 70/100V & 8 ohm position
- IP65 rated
- Aluminium grill and UV protection treatment
- Back rubber cover for connections
- Includes wall bracket and security steel cable
- Available in black and white
Technical specifications
- Effective Freq. Range: 65 Hz-20 kHz (-10dB)
- Coverage angle/Dispersion: 142°x142° (HxV)
- Power handling: 100 W RMS / 400 W Peak
- Sensitivity: 88 dB (1W/1m)
- Maximum SPL: 108 db continuous / 114 dB peak
- Power options (Hi Z Multi-tap): 100V 60/30/15/7.5W/8 ohm; 70V 60/30/15/7.5/3.75W/8 ohm
- Recommended amplifier power: 200 W RMS
- Ways: 2-ways full range
- Low frequency driver: 8" woofer
- High frequency driver: 1.4" tweeter
- Nominal impedance: 8 ohm
- Environmental: IP65 rated
- Enclosure material: ABS
- Grille material: Aluminium
- Mounting system: Cabinet
- Operating temperature: -20°C to 70°C
- Operating humidity: <85% HR
- Storage temperature: -20°C to 70°C
- Storage humidity: <90% HR
- Included accessories: Wall-mount bracket, security steel cable
- Finished colour: White (RAL9003) or black (RAL9005)
- Dimensions: not incl. brackets 264x269x234mm; incl. brackets 264x269x322mm
- Weight: 4.25kg (4.75kg incl. accessories)
- Pieces per box: Sold in pairs
- Shipping dimensions: 720 x 390 x 300 mm
- Shipping weight: 5.3 kg
