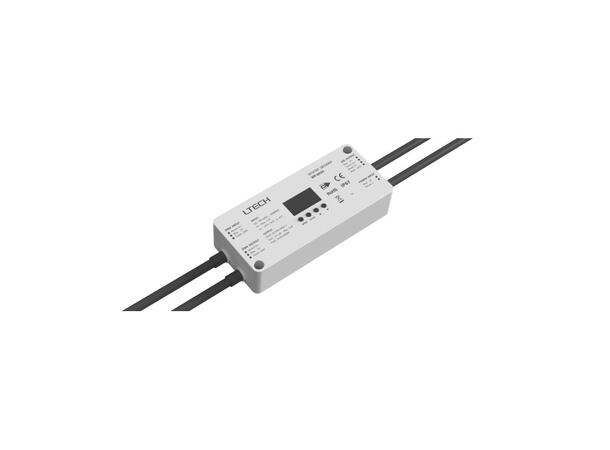

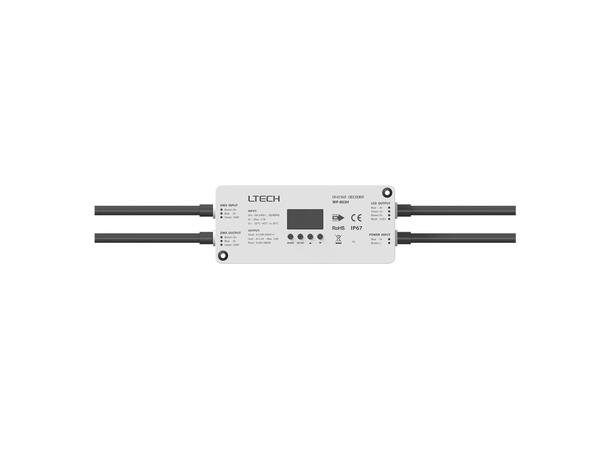

LTECH WP-803H DMX/RDM Decoder, IP67 3 x 100-240VDC, 3 x 83-288W LTECH WP-803H DMX/RDM Decoder, IP67 3 x 100-240VDC, 3 x 83-288W

LTECH WP-803H DMX/RDM Decoder, IP67

3 x 100-240VDC, 3 x 83-288W

Varenr: 170824
Alt. varenr: WP-803H
1 239,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
6 på lager i Oslo
BeskrivelseLenker & dokumenter
Beskrivelse

WP-803H is a waterproof decoder with IP67 rating, suitable for outdoor and damp environments which uses the RDM protocol and supports DMX512/RDM signal bi-directional communication.
The RDM protocol enables the remote management such as reading/ writing DMX address (For RDM functions the DMX master must be RDM compliant).
WP-803H has 3 channel high voltage output with max. 1.2A output for each channel.
It can be used to control DIM,CT, RGB constant voltage lights and achieve 0-100% dimming or various lighting effects. WP-803H can be operated in DMX mode or in customized mode.
It is easy to set address via digital display and buttons.

*When more than 32 DMX decoders are connected, DMX signal amplifiers are needed and signal amplification should not be more than 5 times continuously.
If you need to modify the parameter settings of connected DMX/RDM decoders that exceed 32, you can add 1 RDM signal amplifier or you can add 1-5 DMX signal amplifiers after completing the parameter settings.

*If the recoil effect occurs because of long signal line or poor quality wires, please try to connect a 0.25W 90-120O  terminal resistor at the end of each line.





General

Product Type Controller
Length (mm) 164
Width (mm) 70
Height (mm) 36
Housing Color White
Housing Material Plastic
Mounting Surface mounted
Weight (g) 670
CE v

Electronics

Input Domain AC
Input Voltage 100 ~ 240V AC
Output Voltage 100 ~ 240V DC
Output Current (mA) max/output 1200
Output Current Max. (A) 3.6
Output Power (W) 864W @ 220V
Power Supply Internal
LED Outputs 3
CC / CV Constant Voltage

Lighting

Color Range Dim / TW / RGB

Control

Signal PWM-CV
Control DMX
RDM Support Yes
Dimming Range 0~100%
Driver Configuration Digital
Number of Channels 3

Environmental

Operating Temperature -20 ~ +50 °C
IP Rating IP67
Environment Outdoor

Other

Country of Origin People's Republic of China

Approvals

Certification CE

Warranty

Warranty 5 Year

-

HS Code 8543709099
