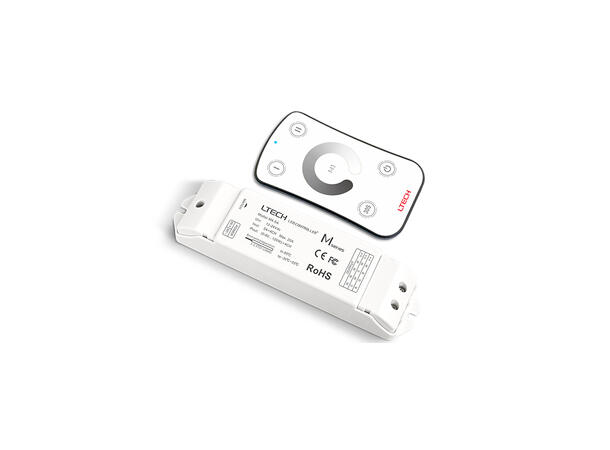

LTECH M1+M4-5A CV Dimmer 12-24VDC 240/480W (12/24V), 4x5A, Remote

LTECH M1+M4-5A CV Dimmer 12-24VDC

240/480W (12/24V), 4x5A, Remote

Varenr: 172151
Alt. varenr: M1+M4-5A
639,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
9 på lager i Oslo
BeskrivelseAlternativerLenker & dokumenter
Beskrivelse

Extended new series products are based on the Mini series controllers, increase RGBW 4CH control, workable for dimming, Color temperature, RGB and RGBW. And the output power of receiver is higher.

4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design: One receiver compatible with seven different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.

M series with extremely high performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using.



  • Model:  M4-5A
  • Input Voltage:  12~24Vdc
  • Current Load:  5A×4CH Max 20A
  • Max Output Power:  (0...60W~120W)×4CH
  • Protection: Short circuit/Over-load
  • Working Temp.:  -30 - 55°C
  • Weight(N.W.):  125g
