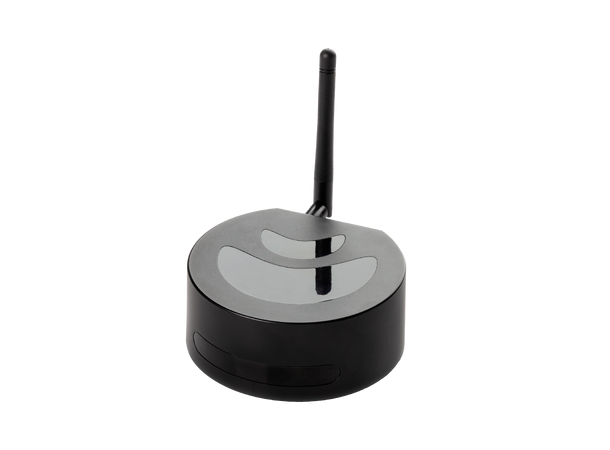

WIRELESS SOLUTION ORB Wireless DMX TX

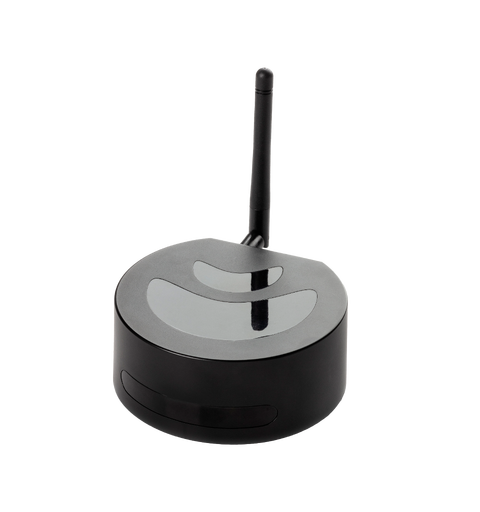

Wireless DMX lighting control. Orb gives you cable-free control over your lighting set-up so no more running cables from your controller to your fixtures. Available as a transmitter or receiver – either way it’s plug and play. Simply connect the transmitter to your controller and the receiver to your fixtures… and boom, instant wireless control! And you get the same rock-solid W-DMX performance which the lighting professionals love.

• Cable-free control over your lighting set-up
• A simple to use, plug and play product
• Rock-solid performance which won’t let you down
• Wireless DMX tech loved by lighting pros

SPECIFICATIONS

• Power supply AC: 100-240 VAC +/- 10% 50/60 Hz
• Power supply DC: 5 VDC +/- 10%
• Max. power consumption: 1W
• Self-healing fuse: Yes
• IP rating: IP 20
• Dimensions (W x H x D): 99 x 97 x 43 [mm]
• Weight: 190 g
• Antenna connector: RP-SMA
• Operating temp. range: -20 to +55 °C
• Storage temp. range: -30 to +80 °C
• Humidity: 0 – 90% non-condensing
• Frequency range: 2402 – 2480 MHz (ISM band)
• Max. RF output power: 35mW
• Supported protocols: DMX-512A
• Supported RF protocols (TX): W-DMX G3
• Supported RF protocols (RX): CRMX, CRMX2 , W-DMX G3, G4, G4S & G5
