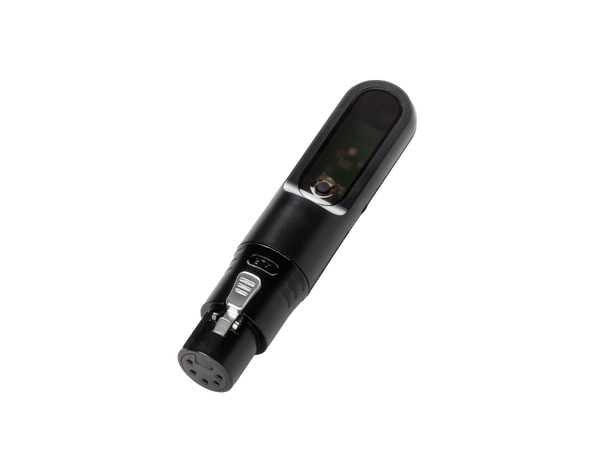

WIRELESS SOLUTION W-DMX Stick RX

Wireless DMX lighting control. Stick gives you cable-free control over your lighting set-up so no more running cables from your controller to your fixtures. Simply plug it straight into each fixture where the DMX cable would have gone and use it as a receiver together with the Orb transmitter. Handy and hassle-free plug-andplay technology. And you get the same rock-solid W-DMX performance which the lighting professionals love.

Rock out without getting tied down

What you get:

• Cable-free control over your lighting set-up
• A simple to use, plug and play product
• Rock-solid performance which won’t let you down
• Wireless DMX tech loved by lighting pros

SPECIFICATIONS

• Power supply DC: 5 VDC +/- 10% 0.5W
• Max. power consumption: 0.5W
• Self-healing fuse: Yes
• IP rating: IP 20
• Dimensions (W x H x D): 21 x 23 x 98 [mm]
• Weight: 50g
• Antenna: Built-in
• Operating temp. range: -20 to +55 °C
• Storage temp. range: -30 to +80 °C
• Humidity: 0–90% non-condensing
• Frequency range: 2402–2480 MHz (ISM band)
• Max. RF output power: 10 mW
• Supported protocols: DMX-512A
• Supported RF protocols: CRMX, CRMX2, W-DMX, G3, G4, G4S, G5
