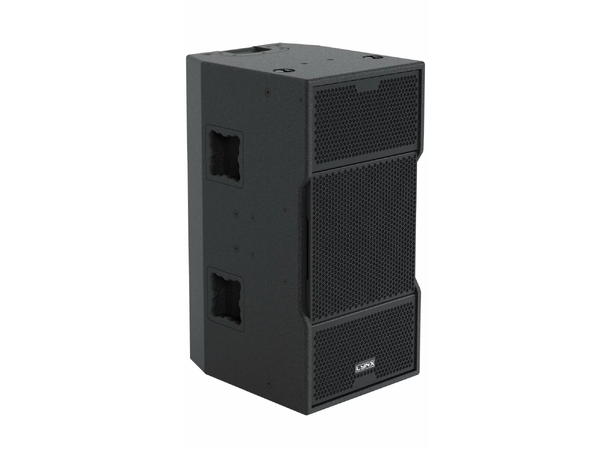

Extremely compact & powerful 3-way, bi-amplified coaxial point source element. Dual high power 10” neodymium transducers and a unique 1.4” Exit throat (HF 2” voice coil/ MF 3” voice coil) coaxial neodymium compression driver.
Two models depending on coverage: CPS-210P/64 (60ºH x 40ºV) or CPS-210P/96 (90ºH x 60ºV).
The CPS-210P is a high-output extremely compact and extremely powerful 3-way, bi-amplified, coaxial point source element designed for medium sized touring & fixed installations.
It uses two low distortion 10” (3” DUO double layer voice coil) speakers for the low frequencies with exclusive Malt Cross cooling technology, FEA optimized neodymium magnet circuit, aluminium demodulating ring and weatherproof cone.
For the mid/high frequencies it uses an ultra light weight 1.4” exit throat neodymium coaxial compression driver. The unique voice coil technology employs a light weight copper clad aluminium wire, wound inside and out of the Kapton former to improve heat dissipation, dramatically increasing the acoustic output and reliability of the driver while minimizes the power compression.
The larger annular midrange diaphragm covers the frequency range between 300Hz and 7KHz with a smooth, linear response. The ultra light annular diaphragm for the high frequencies offers exceptional transient response with very high efficiency from 4KHz to 22Khz. With two subsystems in one each driver covers a smaller frequency range for increased power handling, high dynamic and extremely low distortion and delivers excellent phase coherence & perfect time alignment without problems of multi-source interference.
The enclosure is made from premium grade birch plywood and finished with a polyurea coating for longer durability & weather protection.
