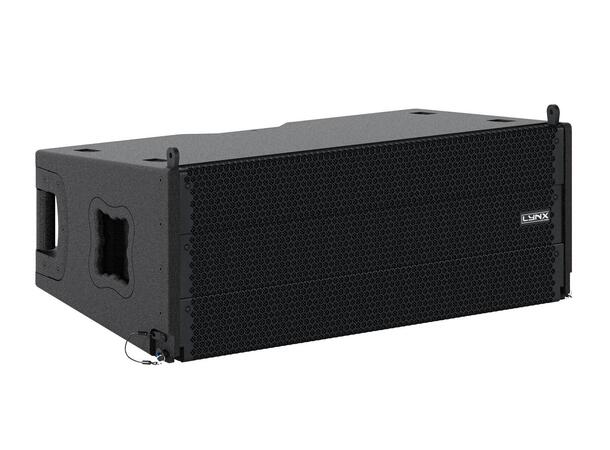

Compact, self-powered class D, two way line array equipped with two 10? speakers (2? voice coil). For the High frequencies it uses a 1.4? output compression driver coupled to a waveguide (100°H x 10°V). It delivers high power levels from a very compact format.
Also available in bi-amp.
The GXR-LA210A is the ideal solution for install projects and live events where a powerful but compact line array is required.
The GXR-LA210A is a self-powered (Class D), two-way enclosure that delivers high power levels from a very compact format. It uses two 10? (2?coil) speakers for the Low/Mid frequencies. For the high frequencies it uses a 1.4? output compression driver coupled to a waveguide offering 100° H x 10° V coverage.
The system is very easy to use and can be controlled without the need for any external amps. To extend the low frequency response there are 2 options. The GXR-D15A is designed to be flown or stacked in perfect combination with the GXR-LA210A and when extreme low frequencies are required, the GXR-D18A is recommended.
The GXR-LA210A has a selection of rigging hardware & accessories available: Flying frame, transport dolly, nylon protection cover, rain hood, etc.
Technical Data
Components
LF: 2 x 10?, 2? voice coil, Malt Cross Cooling System
HF: 1.4? exit throat, 3? voice coil with titanium diaphragm
Frequency Range 60 Hz – 20 KHz (-10dB)
Frequency Response
68 Hz – 18 KHz (± 3dB)
Max SPL 135dB
Coverage Angle
100º H x 10 º V
Power 1400W Class D with switching power supply & PFC
LF Amplifier
1 x 800 W RMS, 1600 W peak
HF Amplifier 1 x 600 W RMS, 1200 W peak
Processing
Internal Lynx Processor DSPB-FL.
96 KHz / 64 bit double-precision, DSP with FIR filter linear phase

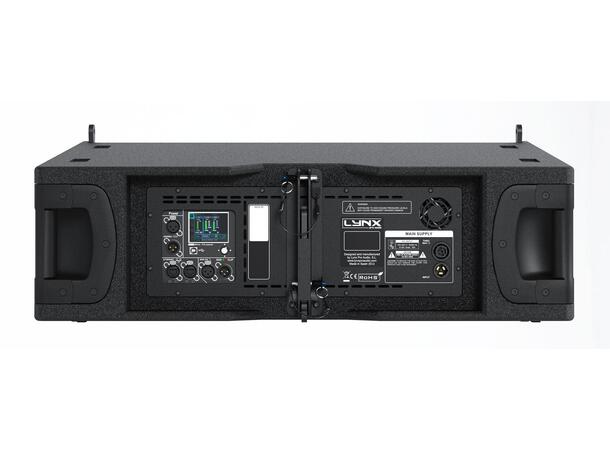

Control User control interface with 2.8? IPS screen
Control Connections
Ethernet (OCS) / USB (DSP updating)
Input
Analog / AES3 (optional)
AC Power 90 – 264V. 50/60 Hz with PFC
AC Connections
16A Neutrik powerCon TRUE1 TOP with looping output
Finish Polyurea coating, black colour
Material
15 mm premium birch plywood
Dimensions 298 x 790 x 436 mm (H x W x D)
Weight
31 kg (68.2 lbs)
