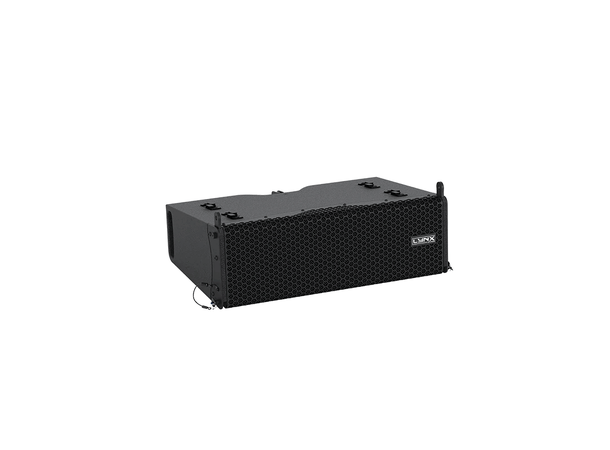

The LAIA-26 enclosure is a ultra compact Line Array module that offers an ideal solution for a wide variety of indoor and outdoor applications where a compact, practical and reliable Line Array system is required. LAIA-26 is a self-powered 2-way system with a total of 1200W in class D, universal switching power supply. Equipped with a powerful next-generation 64-bit/96KHz DSP designed and manufactured by Lynx Pro Audio, it offers the most recent advances in digital processing, such as FIR filters, which offer linear frequency and phase response.
The latest 32-bit/96KHZ AD/DA converters make the system one of the most advanced and innovative line arrays on the market, resulting in superior sound quality. Additionally, LAIA series systems can be controlled remotely using the OCS control platform, giving the user the ability to control the systems without the need for external processors.
Key features
- Class D Powered (bi-amplified)
- Integrated Digital Processing
- Internal temperature control
- Electronic protection
- FIR linear phase filtering
- Online monitoring available
- Two way active system
Technical Data
Components: LF: 2 x 6”, 2” voice coil, waterproof treatment
HF: 1 x 1” exit throat 1.75” voice coil
Frequency Range: 75 Hz – 20 KHz (-10 dB)
Frequency response: 85 Hz – 18 KHz (± 3dB)
Max SPL: 124dB / 130 dB Peak*
Coverage:100º H x 8 º V
Power:1200 W (2400 W peak) Class D with switching power supply LF amplifier: 1 x 800 W RMS, 1600 W peak HF amplifier: 1 x 400 W RMS, 800 W peak
DSP Processing: DSP Lite 96 KHz / 64 bit double-precision
Control: User control interface
Control connections: USB (DSP programming) / Dual Ethernet port
Input: Analog BAL/UNBAL XLR
AC power: 90 – 264V. 50/60 Hz
AC connections: 16A Neutrik powerCon true1 TOP with looping output
Finish: Polyurea coating, high grade resistant paint
Material: 15 mm premium plywood
Dimensions: 181 x 549 x 356.8 mm (H x W x D) without pins
Weight: 15 Kg (33.07 lbs)
