NOVASTAR NOVAMRV560-3 Receiving card Female connector on top

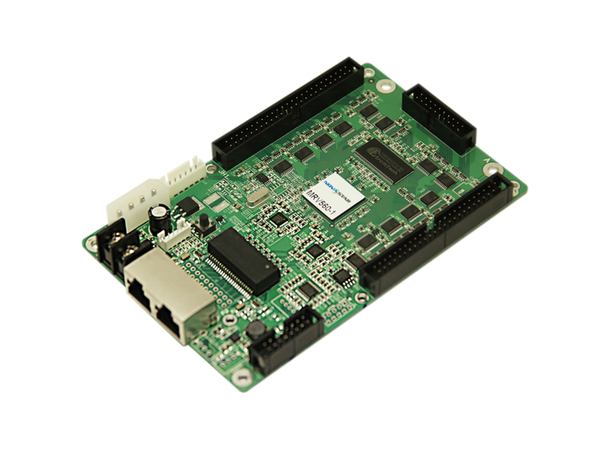

NOVASTAR NOVAMRV560-3 Receiving card

Female connector on top

NOVASTAR NOVASTAR

Varenr: NOVAMRV560-3-ML

Alt. varenr: NOVAMRV560-3

1 572,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Tilkobling

Female connector on top

Female connector on top

Female connector on bottom

Female connector on bottom

Male connector on top

Male connector on top

Male connector on bottom

Male connector on bottom

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

MRV560 is the EMC version of MRV360 with its effective reduction of the electromagnetic radiation of the whole system.

FEATURES

Single card outputs 16-group of RGBR 'data;
Single card outputs 20-group of RGB data;
Single card outputs 64-group of serial data;
MOM can store calibration coefficient and LED module information;
Single card supports resolution of 256x226;
Configuration file readback;
Temperature monitoring%uFF1B
Ethernet cable communication status detection;
Power supply voltage detection;
High gray scale and high refresh rate;
Pixel-by-pixel brightness and chromaticity calibration.
Brightness and chromaticity calibration coefficients for each LED;
Pre-store picture setting;
Able to connect monitoring card to achieve comprehensive monitoring;
Comply with RoHS standard;
Comply with EU CE-EMC Class B standard.
