NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

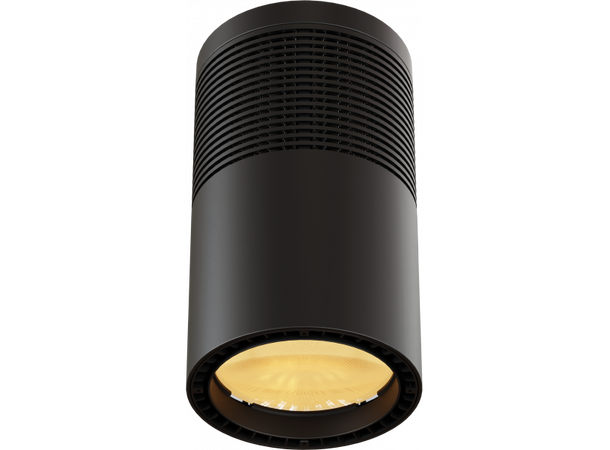

The EclPendant is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.
The EclPendant has a 200-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).

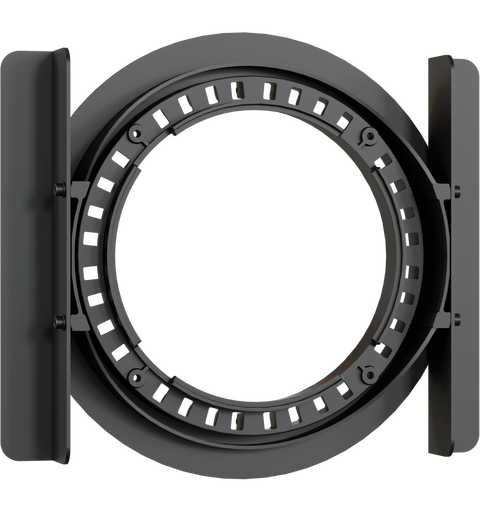

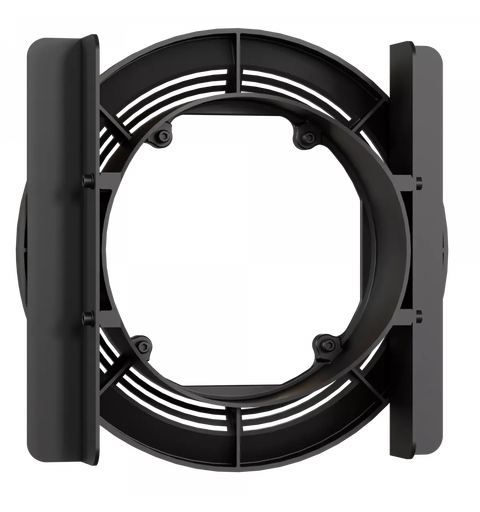

The EclPendant was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

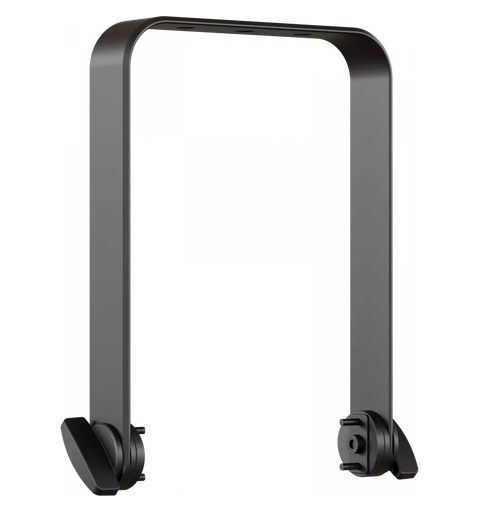

NOTE: the hanging bracket does not come with the product
Features:
- 200W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling
- AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
- Extensive mounting option possibilities, optics and accessories are all easily changeable
LIGHT SOURCE
- Source: 200W COB LED
- CCT: see available variants
- Luminous flux: (TU) 11'233 lm; (NW) 14'165 lm; (DY) 13'646lm @full
- Lux: (TU) 2'761 lx; (NW) 2'925 lx; (DY) 3'181lx @5 m full
- CRI: (TU) > 96 - (NW) > 96 - (DY) > 94
- R9: (TU) > 98 - (NW) > 93 - (DY) > 91
- TLCI: (TU) > 95 - (NW) > 97 - (DY) > 96
- TM30 Rf: (TU) > 94 - (NW) > 93 - (DY) > 90
- TM30 Rg: (TU) < 105 - (NW) < 103 - (DY) < 104
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle: 20°
- Field angle: 40°
- Lens diameter: 157mm
- Lens type: fresnel lens
- Other: see available accessories
COLOUR SYSTEM
- Colour mixing: see available versions
DYNAMIC EFFECTS
- Static mode: selection of static dimmer
- Manual mode: manual adjustment of dimmer and strobe
- Auto mode: built-in programs with execution speed adjustment
BODY
- Body: sturdy die-cast aluminium body
- Body colour: RAL 9004 or RAL 9010
CONTROL
- Protocols: DALI Type6, DMX512, RDM, W-DMX
- DMX channels: UNO / DUO / Standard / Extendedchannel
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Other: 16bit control of dimmer
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 30 Hz, electronic
- Operating temperature: -10° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Low Voltage DC mains: DC 48V for emergency light use
- Max power consumption: 200W
- Output (at 230V): 12 units on a single power line
- Power factor: > 0,95
PHYSICAL
- IP rating: 20
- Cooling: Heatsink with heat pipes, passive cooling and fan-free

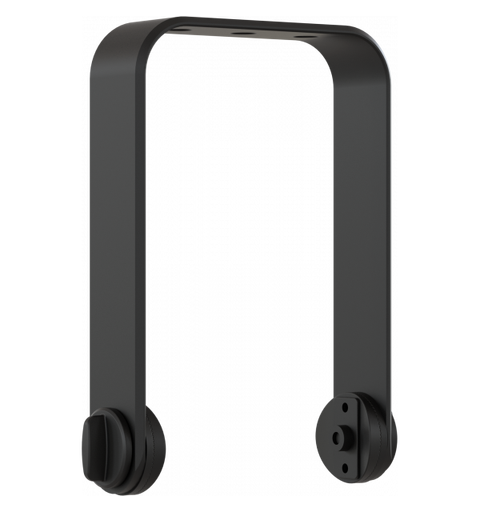

- Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)

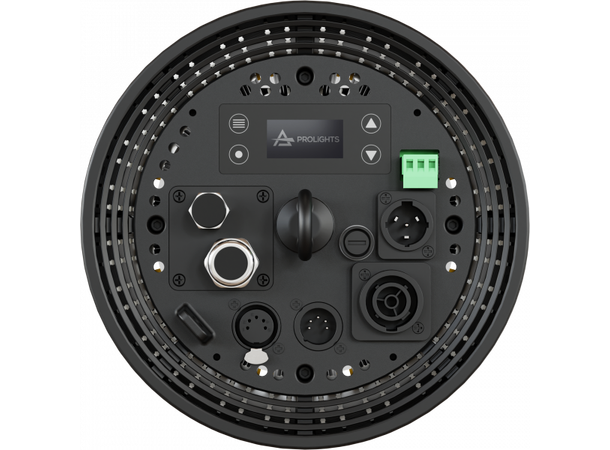

- Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
- Power connection: DC 48V, screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 202x392x202mm
- Weight: 7,3kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
- 1 x ECLPENDANT
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- User Manual
- NOTE: no hanging bracket ECLPENDHGBRK on board to the fixture
