The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.
Among the series, the ArcSpot DotFC stands out as an extra small round spot. It is equipped with a 20W RGB+WarmWhite LED source, delivering a focused ultra-narrow 5° beam angle with a fixture output of 590 lumens.
These fixtures are engineered with a dual chamber design, with the physical separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.
The unit is DMX compatible, offering the convenience of remote management via RDM.

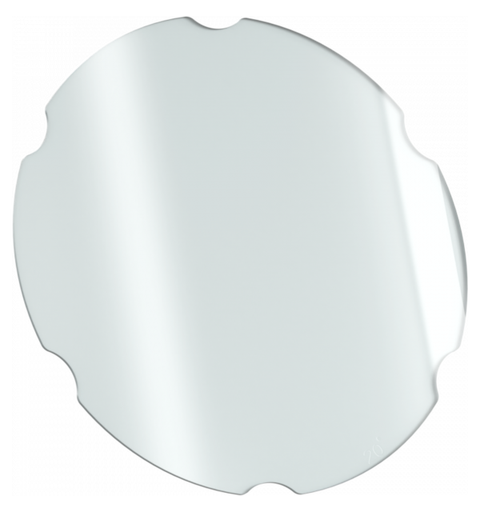

Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.
Features:Exterior Spot featuring 590 lumen with 1x20W RGB+WarmWhite LED source
IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
Comprehensive selection of optics, holographic filters and light modifiers
LIGHT SOURCE
- Source: 1 x 20W RGB + Warm White LED
- Luminous flux: 592lm @full
- Lux: 699lx @5 m full
- Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Beam angle: 5°
- Additional optics: see available accessories
COLOUR SYSTEM
- Colour mixing: RGB + Warm White
- Colour wheel: gel filters included
- Macros: built-in white presets
DYNAMIC EFFECTS
- Static mode: selection of static dimmer, colors and color temperature
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
BODY

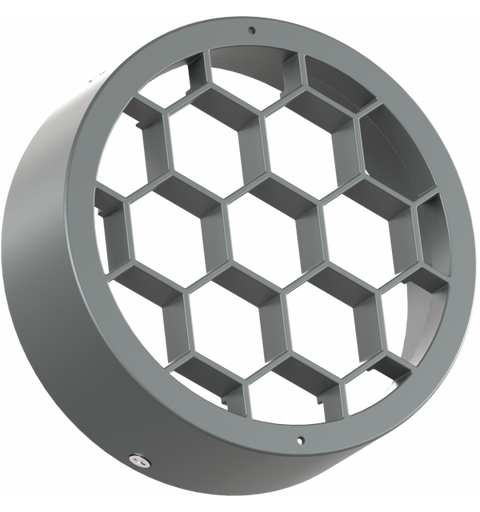

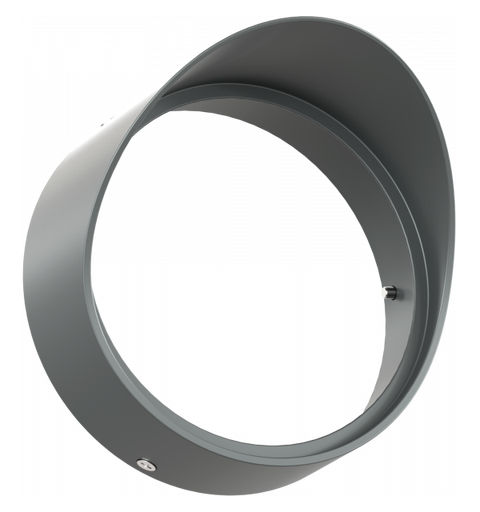

- Hardware on-board: optional accessories: half snoot and louvre
- Body: sturdy die-cast aluminium body, scratch resistant paint (C5M as standard)
- Body colour: RAL 7012
CONTROL
- Protocols: DMX512, RDM
- DMX channels: 5 / 6 / 9 / 12channel
- RDM: RDM for remote monitoring and settings
- Display: user interface through DATAMASTER external coder (not included)
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
- Other: 16bit control of dimmer and colour
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1-30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 24W
- Power factor: > 0,9
- Inrush current: 230VAC/30A, 110VAC/33A
PHYSICAL
- IP rating: 66 for outdoor installations
- IK rating: 07
- Suspension and fixing: bracket for hanging and positioning
- Adaptors: XLR and BARE END 16A adaptors included
- Signal connection: moulded IP signal IN/OUT connectors
- Power connection: moulded IP power IN connector
- Dimensions (WxHxD): 132x156x112mm
- Weight: 1,4kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE
BOX CONTENT- 1 x ARCSPOTDOTFC
- 1 x User Manual
