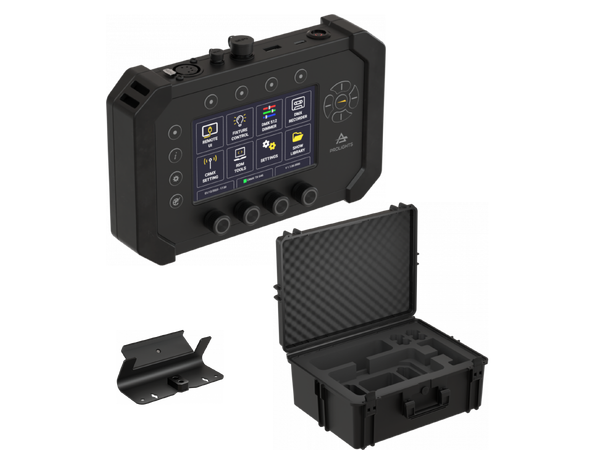

ControlGo is the ultimately flexible, multi functional lighting controller. This incredibly versatile, simple to use tool combines a fixture remote, RDM Tool, CRMX transmitter, DMX controller and DMX recorder into a single, portable and durable device.
Whether flashing out a film set, setting addresses on a tradeshow stand, or controlling battery uplighters, the ControlGO is THE device you need to get up and running quickly and easily.
Taking power from a host of options - NP-F or V-Lock batteries, DC 12-48V or USB-C - you won't find a place you cant find some power.
Featuring wired and CRMX wireless DMX & RDM, the ControlGO is compatible with up to 42 fixtures of any brand over 1 Universe. Its intuitive touchscreen interface, plus physical buttons and encoders, gives fast, easy and accurate access to its functions.
From Film sets to events … Lights, Control, Go!
Features:One Universe DMX Controller , RDM controller, DMX recorder, Remote UI
5'' touchscreen with 4 RGB encoders and physical buttons for unprecedented user experience
Signal output through XLR, Wireless CRMX, and remote UI connector
Power sources: NPF batteries, V-mount adapter plate, 48V DC remote ui, 12-48V DC input through SF6-M 4p, USB type-C 5-12V power input
BODY- Hardware on-board: see available accessories
- Body: sturdy policarbonate body
- Body colour: black
CONTROL- Protocols: DMX512, RDM, CRMX + WDMX, Bluetooth
- DMX channels: 512channel
- Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: 5" Touch LCD
- Firmware upgrade: yes,via USB pen drive, onboard memory or DMX interface (UPBOXPRO/UPBOX1) not included
- Other: 4 rotary push-encoders with RGB backlight
ELECTRICAL- Low Voltage DC mains: 12-48V via DC IN, 48V via Remote Connector, 5-9-12-20V via PD3.0 over USB-C, 7.2V via battery slots
- Max power consumption: 8W
BATTERY- Battery: 7.2V NP-F550/F570/F750/F770/F960/F970 type battery or V-Mounts (14.4V) via dedicated accessory
PHYSICAL- IP rating: 20
- Signal connection: Seetronic XLR 5p OUT connector
- Low Voltage DC connector: Weipu SA6(12-48V), Weipu SA12 (48V - RemoteConnector), USB type C PD3.0, Battery slots
- Weight: 0.6kg
CERTIFICATIONS / APPROVALS- Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT- 1 x CONTROLGO
- 1 x CTRGABSC
- 2 x CTRGHANDLE
- 1 x CTRGNL
- 1 x CTRGQMP
- 1 x User manual
