The EclPanel IPHard1x1 is a 1x1 format IP65 Hard Light, featuring an LED source optimized for long throw film applications. This unit is designed to deliver quality lighting in all weather conditions. Its optical system, equipped with a 6-color LED array and collimator lenses controllable in 4 sections, producing a 20° native beam angle. This configuration enhances lux intensity for long throw uses and broadens the light spectrum, resulting in superior light quality. The EclPanel IPHard can be transformed into a soft light source by attaching optical modifiers to its accessory points.
Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5'' large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.
Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.
Features:300W 6 color Hard Light in 1x1 format with 20° beam angle
IP65 water and dust resistant
4 section pixel control and built-in lighting effects for film applications
Silent operation with multiple fan modes
LIGHT SOURCE
- Source: 300W 6 colour LEDs source
- Luminous flux: (HB) 16'798 lm - (HQ) 16'425 lm @3.200 K
- Luminous flux: (HB) 17'966 lm - (HQ) 15'066 lm @5.600 K
- Lux: (HB) 2'987 lx - (HQ) 2'940lx @5 m 3.200 K
- Lux: (HB) 3'206 lx - (HQ) 2'729lx @5 m 5.600K
- CRI: 95,6 @3.200 K; 96,4 @5.600 K
- R9: up to 92
- TLCI: 89 @3.200 K; 95 @5.600 K
- TM30 Rf: >91 @3.200 K; > 92 @5.600 K
- TM30 Rg: < 101 @3.200 K; < 101 @5.600 K
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: 20°
- Field angle: 46°
- Lens type: TIR lenses
- Additional optics: Dome diffuser - see available accessories
COLOUR SYSTEM
- Colour control: XY, CCT, Gel, HSI, Source Emulation
- CCT: CCT control range from 1.850K to 20.000K, + / - green correction, tungsten emulation
- White presets: 1.850 K - 20.000K
- Colour wheel: virtual colour wheel with macros
- Macros: Gels library on-board
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer, colours
- Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
- Special features: color space selection, linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Body: weatherproof IP65 construction with die-cast magnesium alloy
- Body colour: black

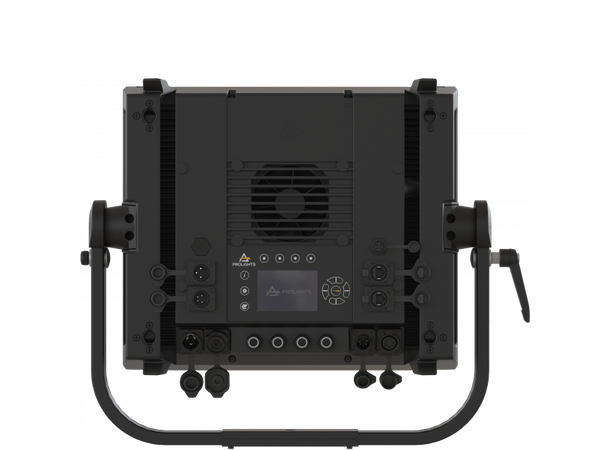

CONTROL
- Protocols: DMX512, RDM, ArtNet, sACN, CRMX
- Stand Alone: selectable mode through 4 RGB backlight push-encoders
- Pixel control: 4 section control
- Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: 3.5" with new UI
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
- Other: Ethernet pass through in case of failure
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 6 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 300W
- Standby power: 5,6W
- Output (at 230V): 9 units on a single power line
- Power factor: > 0,95
- Inrush current: 230VAC/65A, 110VAC/23A

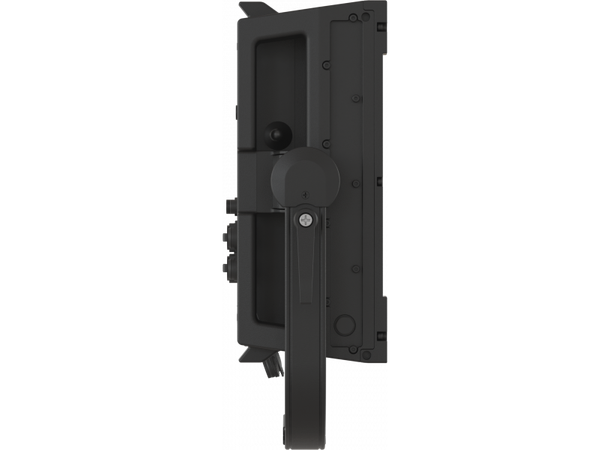

PHYSICAL
- IP rating: 65 for temporary outdoor application, not for fixed installations
- Cooling: active, silent operation
- Suspension and fixing: bracket for truss rigging and hardware for connection of more units

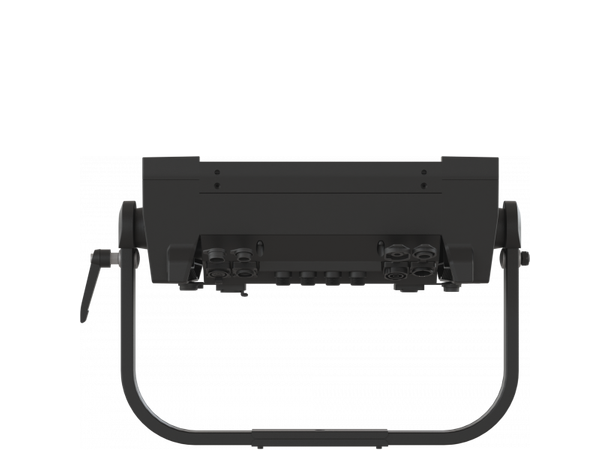

- Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
- Data connection: IP65 Seetronic RJ45 IN/OUT
- Power connection: IP65 Seetronic powerCON TRUE IP65 IN/OUT
- Low Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V

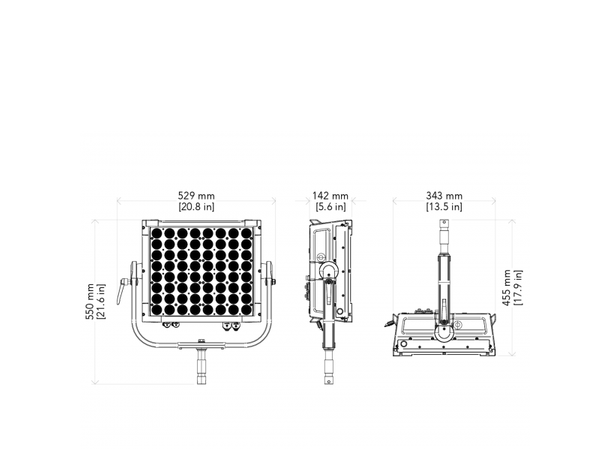

- Dimensions (WxHxD): 529x433x142mm
- Weight: 12,8kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT- 1 x ECLPANELIPHARD1X1
- 1 x ECLFRSPG
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- User Manual
Accessory Code
Description
ECLPANELJRPOYO
optional
Pole operated aluminium yoke bracket for ECLPANELTWCJR
EPTWCJRBAG1U
optional
Bag for 1 pc of ECLPANELTWCJR
EPTWCBRKM
optional
Center mount bracket for ECLPANELTWCJR and ECLPANELTWCM2X1
EPTWCBHEAD
optional
Ball head joint for center mount bracket EPTWCBRK series
EPTWCJRFILTERHD
optional
Front high diffusion filter (less output) for ECLPANELTWCJR
EPTWCJRFILTERMD
include
Front medium diffusion filter for ECLPANELTWCJR
EPTWCJRFILTERLD
optional
Front low diffusion filter (more output) for ECLPANELTWCJR
ECLFRSPG
include
Spigot for PROLIGHTS fixtures
EPTWCJREC30
optional
30 degree egg crate for ECLPANELTWCJR
EPTWCJREC60
optional
60 degree egg crate for ECLPANELTWCJR
EPTWCJREC4C
optional
4 chamber egg crate for ECLPANELTWCJR
EPTWCJRBD
optional
Barn door with 4 directional flaps to adjust the light beam
EPTWCJRSB11
optional
SnapBag 1x1 for ECLPANELTWCJR by DoP choice
EPTWCJRSG4SB1140
optional
40° SnapGrid for SnapBag, 1x1 for ECLPANELTWCJR by DoP choice
EPTWCJRSG1140
optional
40° SnapGrid, 1x1 for ECLPANELTWCJR by DoP choice
EPSREM
optional
Rabbit-Ears 1x1 MINI for ECLPANELTWCJR by DoP choice
EPSBRL3
optional
Snapbag Lantern 3' for Rabbit-Ears by DoP. Incl. Lantern, Carry Bag
EPSBRL3C4
optional
Cover for Snapbag Lantern 3' (EPSBRL3) by DoP choice; 4 sides, adj. with zipper
EPSBRM
optional
SnapBag Medium to be mounted on Rabbit Ears by DoP.
EPSGCM40
optional
40° SnapGrid, to be mounted on Snap Bag Medium (EPSBRM)
EPSBRO3
optional
Snapbag Octa 3' to be mounted on Rabbit-Ears by DoP.
EPSGC3W40
optional
40° SnapGrid, to be mounted on Snap Bag Octa 3' (EPSBRO3)
EPSBRO5
optional
Snapbag Octa 5' to be mounted on Rabbit-Ears by DoP.
EPSGC5W40
optional
40° SnapGrid, to be mounted on Snap Bag Octa 5' (EPSBRO5)
EPSBRO7
optional
Snapbag Octa 7' to be mounted on Rabbit-Ears by DoP.
EPSGC7W40
optional
40° SnapGrid, to be mounted on Snap Bag Octa 7' (EPSBRO7)
EPSBCMNSM
optional
Diffusion MAGIC cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSF
optional
Diffusion FULL Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSH
optional
Diffusion HALF Grid cloth for Snapbag 60x60cm(EPTWCJRSB11) by DoP choice
EPSBCMNSQ
optional
Diffusion QUARTER Grid cloth for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPSBCMNSQFM
optional
Diff. cloth SET (1/4, 1/1,MAGIC) for Snapbag 60x60cm (EPTWCJRSB11) by DoP choice
EPTWCJRLANT11
optional
Snapbag Lantern for ECLPANELTWCJR by DoP. Incl. Lantern, Backcovers, Carry Bag
SPGM12
optional
28mm spigot for fixtures, M12 bolt
SPGM10
optional
28mm spigot for fixtures, M10 bolt
TOUR53415L03
optional
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
optional
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
optional
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
optional
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
optional
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
optional
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
optional
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
UPBOXPRO
optional
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
