The EclPanel IPHard2x1 is a 2x1 format IP65 Hard Light, featuring an LED source optimized for long throw film applications. This unit is designed to deliver quality lighting in all weather conditions. Its optical system, equipped with a 6-color LED array and collimator lenses controllable in 8 sections, producing a 20° native beam angle. This configuration enhances lux intensity for long throw uses and broadens the light spectrum, resulting in superior light quality. The EclPanel IPHard can be transformed into a soft light source by attaching optical modifiers to its accessory points.
Constructed with durable die-cast magnesium alloy, the IP65 rating of the housing makes the unit water and dust resistant, suitable for challenging environments and sets. The fixture incorporates an onboard power supply and processing unit, facilitating easy setup and operation. It features a 3.5'' large display, a user-friendly interface, and comprehensive connectivity options, including both wired and wireless capabilities.
Further enhancing its versatility, the unit supports per-section control for custom or desk-created effects. For added portability, the EclPanel IPHard accepts power via 24-36V batteries and a 48V DC input. Its flexibility extends to control options, compatible with DMX & RDM, Ethernet protocols, remote operation via ControlGo, and wireless CRMX.
Features:550W 6 color Hard Light in 2x1 format with 20° beam angle
IP65 water and dust resistant
8 section pixel control and built-in lighting effects for film applications
Silent operation with multiple fan modes
LIGHT SOURCE
- Source: 550W 6 colour LEDs source
- Luminous flux: (HB) 36'904 lm - (HQ) 35'755 lm @3.200 K
- Luminous flux: (HB) 38'770 lm - (HQ) 33'409 lm @5.600 K
- Lux: (HB) 5'072 lx - (HQ) 4'962lx @5 m 3.200 K
- Lux: (HB) 5'359 lx - (HQ) 4'700lx @5 m 5.600K
- CRI: 95,5 @3.200 K; 96,3 @5.600 K
- R9: up to 92
- TLCI: 90 @3.200 K; 95 @5.600 K
- TM30 Rf: >91 @3.200 K; > 92 @5.600 K
- TM30 Rg: < 101 @3.200 K; < 102 @5.600 K
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: 20°
- Field angle: 48°
- Lens type: TIR lenses
- Additional optics: Dome diffuser - see available accessories
COLOUR SYSTEM
- Colour control: XY, CCT, Gel, HSI, Source Emulation
- CCT: CCT control range from 1.850K to 20.000K, + / - green correction, tungsten emulation
- White presets: 1.850 K - 20.000K
- Colour wheel: virtual colour wheel with macros
- Macros: Gels library on-board
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer, colours
- Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
- Special features: color space selection, linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Body: weatherproof IP65 construction with die-cast magnesium alloy
- Body colour: black
CONTROL
- Protocols: DMX512, RDM, ArtNet, sACN, CRMX
- Stand Alone: selectable mode through 4 RGB backlight push-encoders
- Pixel control: 8 section control
- Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: 3.5" with new UI
- Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
- Other: Ethernet pass through in case of failure
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 6 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 550W
- Standby power: 11,1W
- Output (at 230V): 4 units on a single power line
- Power factor: > 0,95
- Inrush current: 230VAC/85A, 110VAC/62A
PHYSICAL
- IP rating: 65 for temporary outdoor application, not for fixed installations
- Cooling: active, silent operation
- Suspension and fixing: bracket for truss rigging and hardware for connection of more units
- Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
- Data connection: IP65 Seetronic RJ45 IN/OUT
- Power connection: IP65 Seetronic powerCON TRUE IP65 IN/OUT
- Low Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V

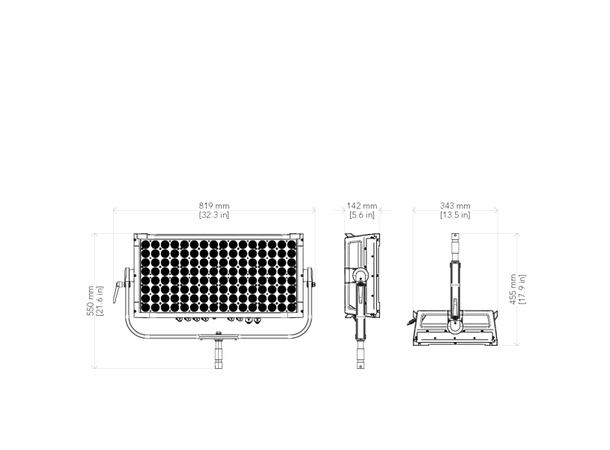

- Dimensions (WxHxD): 819x433x142mm
- Weight: 19,8kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT- 1 x ECLPANELIPHARD2X1
- 1 x ECLFRSPG
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- User Manual
