NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

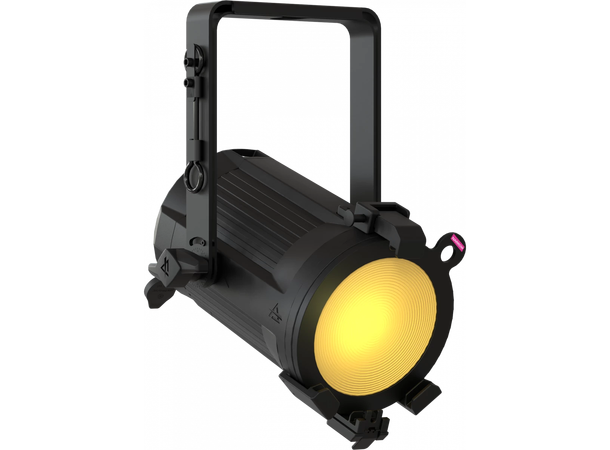

IP65 single source 60W RGB+WW LED spotlight, 15° optics included
The EclPar IPSFC is an ultra compact and fan free IP-rated single source LED spotlight, tailored for accent lighting and nearfield projection which seamlessly integrates anywhere,
This fixture is powered by a 60W RGB+WarmWhite light source, capable of producing up to 2,500 fixture lumens with high efficiency and advanced color control.
Integrated with the PROLIGHTS Spektra OS, the EclPar IPSFC excels in delivering superior white light reproduction, boasting high CRI and TM30 values. This system ensures advanced color control, maintaining consistency across all fixtures.
Its compact and fan-free design renders the EclPar IPSFC an indispensable tool for both indoor and outdoor venues, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.
- 60W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
- Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
- IP65 & fan-free for exterior application
Technical specifications
LIGHT SOURCE
- Source: 60W RGB+WW LED array
- Luminous flux: (15°) 2'938, (30°) 2'238, (60°) 2'373 @Full
- Lux: (15°) 1'350, (30°) 318, (60°) 130lx @5 m full
- CRI: 93,3 @3'200K; 92,2 @5'600K
- R9: 90,7 @3'200; 92,9 @5'600K
- TLCI: 87 @3'200K; 89 @5'600K
- TM30 Rf: 93 @3'200K; 89,6 @5'600K
- TM30 Rg: 106,5 @3'200K; 105,8 @5'600K
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: (on-board) 15° - (opt) 30°, 60°
- Field angle: (on-board) 21°
- Lens diameter: 100mm / 3.94''
- Lens type: parabolic reflector in combination with HD fresnel lens
- Additional optics: (opt) 30°, 60°
- Other: possible to mount lens both on the internal side and on the external side
- COLOUR SYSTEM
- Colour mixing: RGB + Warm White
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.800 K ~ 10.000K
- Macros: Gels library on-board
DYNAMIC EFFECTS
- Static mode: selection of static dimmer, colors and color temperature
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Body: sturdy die-cast aluminium body
- Body colour: black
- Other: Front mount holder for accessories as barn door, filter frame
CONTROL
- Protocols: DMX512, RDM, CRMX (optional)
- DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel
- Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX
- (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
- LED Control: flicker free operation
- Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 65W
- Standby power: 1,7 W
- Power factor: > 0,94
PHYSICAL
- IP rating: IP65 for temporary outdoor application, not for fixed installations
- Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
- Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Dimensions (WxHxD): 211x284x248mm / 8.31''x11.18''x9.76''
- Weight: 2,8kg / 6.17lbs
- (*)
- NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM, FCC
BOX CONTENT
- 1 x ECLPARIPSFC
- 1 x EPIPSLENS15
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
- User Manual
