IP65 2 universes CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth, battery and POE ready

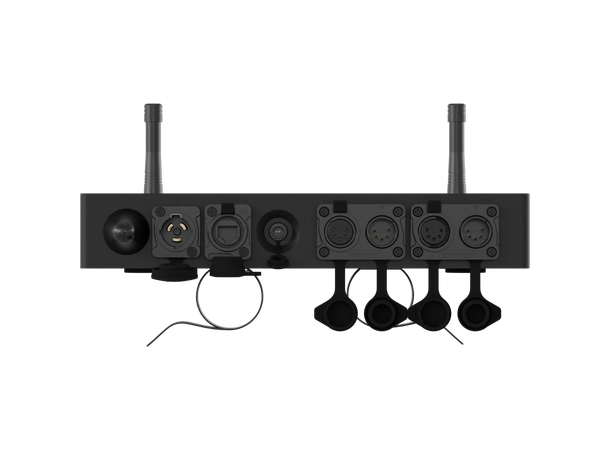

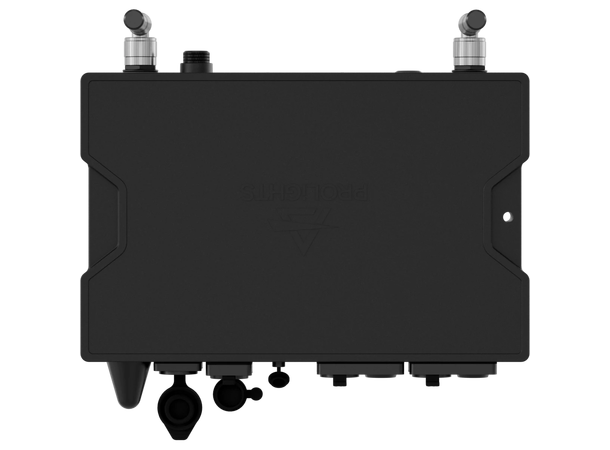

The AetherBox TWO is a robust IP65-rated double universes CRMX transceiver, designed for professional use in any setting, whether it be indoor or outdoor, on stages or sets. It boasts an extensive range of connectivity options including XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth, while supporting CRMX transmission protocol.

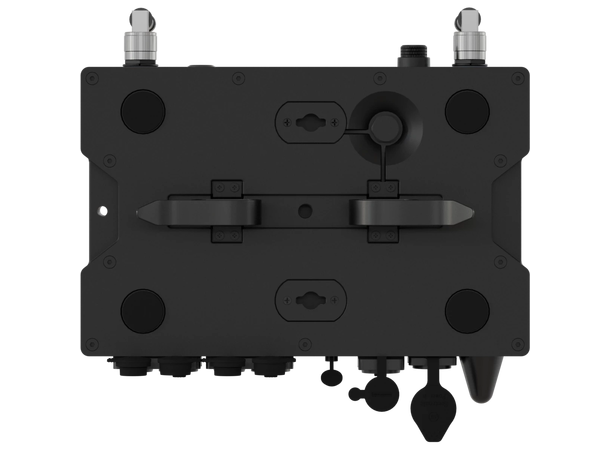

Constructed from die-cast aluminum, the chassis offers water and dust proof protection. It also provides versatile mounting solutions, such as rack mounting, truss mounting with velcro strings, camlock for easy hanging via omega brackets, and M10 and ? threads for additional anchoring options.

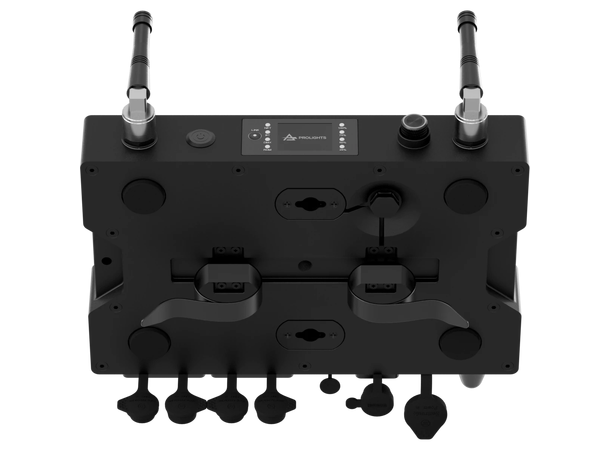

The unit is adaptable in terms of power sources, accommodating mains power through a True1 connector, DC12V input, POE and V-lock battery operation via an adapter plate. For user interaction, it features a color display and pushable encoders, allowing for easy access to advanced configuration settings.
Main features:
IP65 double universes CRMX transceiver
XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth
Rack mounting, truss mounting, camlocks, M10 and ? threads anchoring options
Main power DC12V input, POE and V-lock battery operation via an adapter plate
Technical specifications
BODY
- Hardware on-board: rack-mount hardware
- Body: weatherproof IP65 construction
- Body colour: black
CONTROL
- Protocols: DMX512, RDM, ArtNet, sACN, CRMX, Bluetooth
- DMX channels: 1024channel
- Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-
- MX (Wireless DMX), Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- Other: 1 push encoder
- Other: Transmission range up to 80 meters with the included AEB2DBA90D antenna in open field
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Low Voltage DC mains: 12V via DC IN, 7.2V via battery slots, POE
- Max power consumption: 5W
- Standby power: 1,4 W
BATTERY
- Battery: V NP-F550/F570/F750/F770 type battery via dedicated accessory
PHYSICAL
- Operating Temperature: -20° ~ +45°
- IP rating: IP65 for temporary outdoor application, not for fixed installations
- Suspension and fixing: M10 and 3/8'' threaded insert for easy installation, wall mount, velcro strips, Omega clamp
- Signal connection: Seetronic XLR 5p IN/OUT connectors
- Data connection: Seetronic Ethernet IP IN connector
- Power connection: Seetronic powerCON TRUE IP65 IN
- Low Voltage DC connector: Weipu SA6(12-48V), Battery slots
- Dimensions (WxHxD): 270x45x241mm / 10.63''x1.77''x9.49''
- Weight: 2,2kg / 4.85lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
- 1 x AETHERBOXTWO
- 2 x AEB2DBA90D
- 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
- User manual
