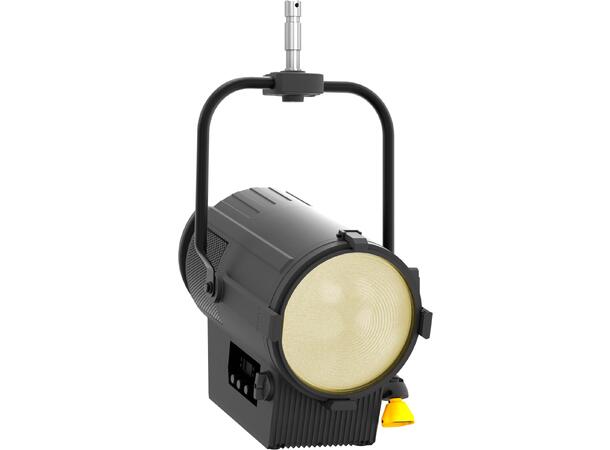

EclFresnel 2KPTW is an advanced LED replacement of traditional 2K Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and extensive colour reproduction.
The optical system harnesses the power of a 500W custom LED with 6 colours to create an even projection, beautiful colours and precise whites, with the option to apply +/- green and magenta correction to match other light sources.
Featuring HD dimming and tuning from 2.800 K to 10.000 K, the EclFresnel 2KPTW delivers both on performance and quality of output that is demanded from this level of light.
Features:
Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
+/- green and magenta white tuning
Truly silent operation making it perfect for studio and stage use
LIGHT SOURCE
Source: 500W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
CCT: 2.800 K - 10.000K
Luminous flux: (17°) 10'100 lm - (52°) 13'400lm @full
Lux: (17°) 3'864 lx - (52°) 710lx @5 m full
CRI: 89 @3.200 K; 90,7 @5.600 K
R9: 80 @3.200 K; 85,4 @5.600 K
TLCI: 87 @5.600 K
TM30 Rf: 89,4 @3.200 K; 86,2 @5.600 K
TM30 Rg: 101,6 @3.200 K; 102,1 @5.600 K
Source life expectancy: > 70.000 h
OPTICS
Zoom: 17° - 52° half peak angle
Lens diameter: 250mm
Lens type: fresnel zoom lens
Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
Colour mixing: 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K - 10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-build macros with adjustable speed
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of intensity, CT, colour correction from knob
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Hardware on-board: filter frame, 8 doors barndoor, spigot
Pan angle: 360° with manual regulation
Tilt angle: 150° with manual regulation
Body: sturdy die-cast aluminium body
Body colour: black, white finishing available
Other: Spigot 28 mm
CONTROL
Protocols: DMX512, RDM, rotatory knob
DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 - 1 / 7 - 2 / 8 / 9 / 12 / 13 / 16 / 19 / 21channel
RDM: RDM ready for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronised operation of more units linked in a chain
Other: 16bit control of dimmer and colour
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 400W
Output (at 230V): 5 units on a single power line
Power factor: >0,93
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: bracket for hanging and positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 401x576x456mm
Weight: 18kg
BOX CONTENT
1 x ECLFR2KPTW
1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
1 x ECLFR2KBD
1 x ECLFR2KTPG
User Manual
