PROLIGHTS ECLIPSEFRESNELJTW DEMOVARE

NB! DEMOVARE, kontakt oss for mere info.

Varenr: ECLIPSEFRESNELJTW_D
13 496,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
1 på lager i Oslo
På lager hos leverandør
BeskrivelseTilbehørLenker & dokumenter
Beskrivelse

NB! DEMOVARE, kontakt oss for mere info.

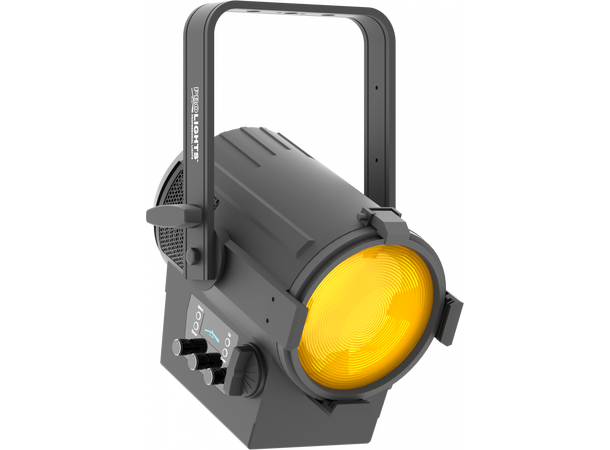

ECLIPSEFRESNELJTW is an advanced LED replacement of traditional 650W Fresnel lamps, featuring 6 color mixing to deliver high precision reproduction of the White Spectrum from 2800K to 10000K with high CRI and an extensive color reproduction.
The optical system harnesses the power of a 130W custom LED with 6 colors to create an even projection, beatiful colors and precise white, allowing the possibility to apply +/- green and magenta correction to match other sources of light.
Featuring HD dimming and tuning from 2800K to 10000K version, and ready to run through external battery, the ECLIPSEFRESNELTW delivers the performance and quality of output demanded from this level of luminaire.

\u00a0


Features:
Tunable White 2800-10000K with high CRI and extensive color mixing
+/- green and magenta white tuning
Silent operation for studio and stage use
Available for operation through external battery

LIGHT SOURCE
  • Source: 130W 6 colors custom LED source (Red, Orange, Cyan, Royal Blue, Green, Lime)
  • CT: 2800 K-10000K
  • CRI: >90Ra
  • R9: >90Ra
  • Luminous Flux: (15°) 1637lm (51°) 2700lm
  • Lux: 15°- 2067lux @3m
  • Lux: 51°- 421lux @3m
  • Source Life Expectancy: >50.000 h
OPTICS
  • Zoom: 15 ° - 51° Manual
  • Field Angle: 26,7° - 75,6°°
  • Lens Diameter: 6''-150mm
  • Lens Type: Fresnel lens
COLOR SYSTEM
  • Color Mixing: Tunable White + Color
  • CTC: Plus/Minus green and magenta correction
  • White Presets: 2800 - 10000K
  • Color Wheel: Virtual color wheel with presets
DYNAMIC EFFECTS
  • Static Color Mode: Selection of static color
  • Manual Color Mode: Manual adjustment of intensity, CT, Color correction from knob
  • Auto Mode: Built-in programs with execution speed adjustment
BODY
  • Hardware On-board: Filter frame + 8 doors barndoor included + omega bracket spigot
  • Body: Sturdy die-cast aluminium body conceived for long-time durability
  • Body Color: Black
CONTROL
  • Protocols: DMX512, RDM, Local Knob
  • DMX Channels: 2/5/7/9/13/16/19ch
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: Black OLED high resolution display
  • Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
  • Other: 16bit Control of Dimmer and Color
ELECTRONICS
  • Dimmer: Linear 0~100% electronic dimmer
  • Dimmer Curves: 4 Different dimming curves available
  • Strobe/Shutter: 1-30 Hz, electronic
  • Flicker: Flicker free frequency with adjustable PWM
  • Selectable PWM: 600~25K Hz
ELECTRICAL
  • Power Supply: 100-240V \u2013 50/60Hz
  • Power Consumption (at 230V): 107W
  • Power Consumption (at 120V): 111W
  • Output (at 230V): 23 units on a single power line
  • Output (at 120V): 12 units on a single power line
BATTERY
  • Battery: 24-34V 4400 mAh (Optional) external battery
  • Recharge Connection: Xlr 4p
PHYSICAL
  • Cooling: Forced air with low noise fan
  • Suspension And Fixing: Hanging bracket suitable for safe hanging and positioning
  • Signal Connection: 5p in/out
  • Power Connection: PowerCON TRUE1 in/out
  • IP: 30
  • Dimensions (WxHxD): 260,4x238,2x459mm
  • Weight: 6,23kg
