NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

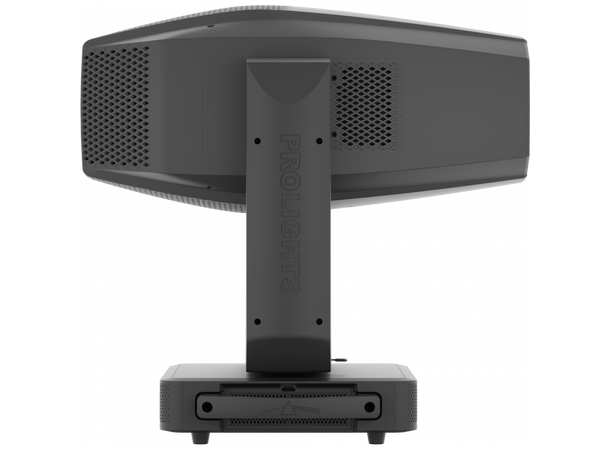

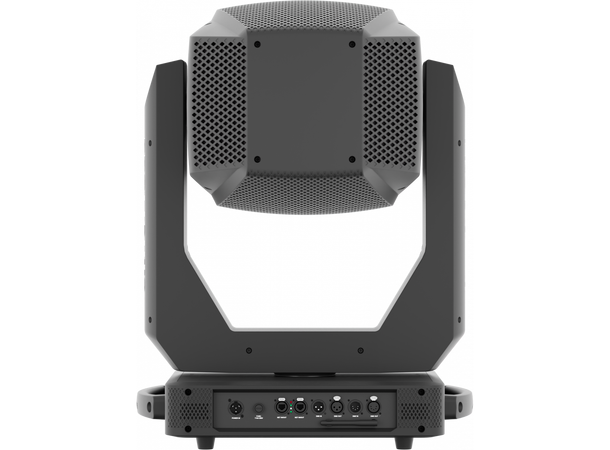

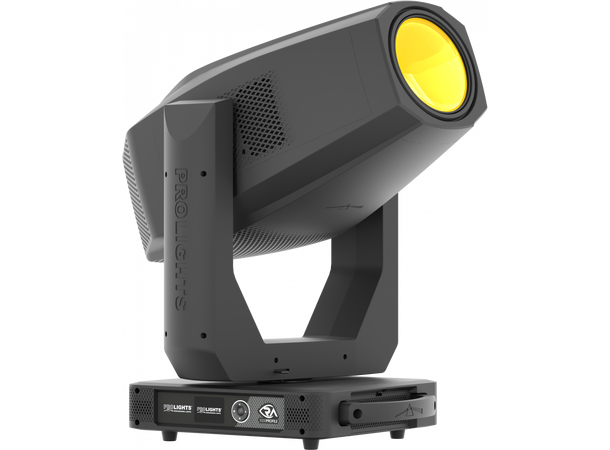

Ra 3000Profile combines solid-state technology in every single detail and it has been specifically engineered to be not only a high-quality bright light but also silent. Ra 3000Profile is able to provide a real 25'000 lumen output with unprecedented beam evenness.
The 6.000 K LED engine has been custom designed to make the Ra 3000Profile hit a CRI of 90, TLCI of 92, high R9 and TM30 making all skin tones and colours come to life on stage or in front of a camera.
The Ra 3000Profile’s CMY system delivers beautiful pastels, stunning saturated colours, powerful primaries, one colour wheel provides split colours, and linear CTO allows the Ra 3000Profile to blend in with traditional sources.
Packed with a full feature set, composed of a gobo wheel, animation wheel, iris, prism and dual linear frost.
High-precision 4 blade shuttering system can be overlaid to provide endless combinations. The 19 element optics of the RA3000PROFILE are precision engineered for a perfect zoom, ideal edges and maximum efficiency.
The RA3000PROFILE is silent, bright, flexible and precise.
Features:
1.000 W LED engine with 6.000 K CT featuring high CRI, TLCI, R9 and TM30.
25'000 lumen fixture output with flat-field projection and silent operation.
Equipped with both adjustable framing shutters and an animation wheel.
LIGHT SOURCE
Source: 1.000W White LED
CCT: 6.000K
CRI: > 90
R9: 75
Luminous flux: 25'000lm
Lux: (6°) 83'500 lx (50°) 1'830lx @5 m
Source life expectancy: 50.000 h
Other: TLCI: 92; TM30-15RF: 88; TM30RG: 99
OPTICS
Zoom: 6° - 50° motorised linear zoom
Lens diameter: 180mm
COLOUR SYSTEM
Colour mixing: linear CMY
CTC: linear CTO correction 3.000 K ~ 6.000 K
Colour wheel: 6 colour filters
DYNAMIC EFFECTS
Shutter system: 4 single blades: + / - 35°, complete system: + / - 45°
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 31,6 mm - image: 26 mm - thickness: 1,1 mm
FX generator: shutter macros with adjustable speed
Circular prism: 4f with bi-directional rotation, indexing
Frost: dual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with linear 0 - 100% frost filter
Iris: 5 - 100% motorised iris
BODY
Pan angle: 540°
Tilt angle: 270°
Pan/Tilt resolution: bit 8 / 16 bit
Feedback: automatic repositioning after accidental movement
Body: flame retardant PC
Body colour: black
CONTROL
Protocols: DMX512, RDM, Art-Net, W-DMX
DMX channels: 38 / 39 / 40 / 41channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED high resolution display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 30 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -10° ~ +45°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 1.288W
Power consumption (at 120 V): 1.371W
Power factor: (120 W) 1,0 - (230 W) 0,97
PHYSICAL
Cooling: combination of heat pipe cooling system and low noise fan
Sospension and fixing: fast quick lock Omega bracket
Pan / tilt lock: pan / tilt locking for transportation and maintenance
Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN connector
IP rating: 20
Dimensions (WxHxD): 535x913x403mm
Weight: 57kg
