NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

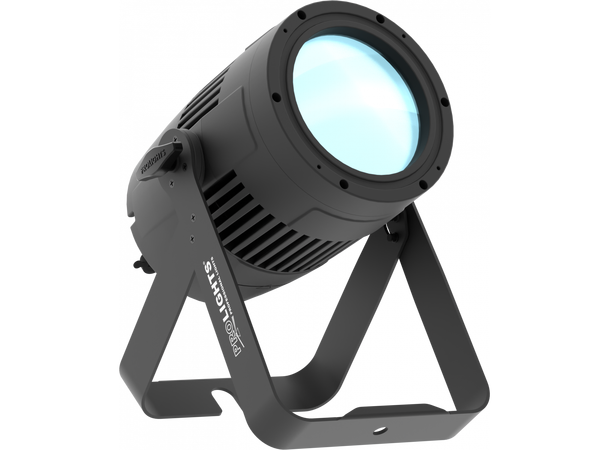

StudioCobplus DY2 is an incredibly powerful, versatile and IP65 rated LED PAR. Fusing the old and the new, it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.
Features:
150W 5.000 K COB LED source with HD dimming and high CRI
Flexible lens options of 18°, 38°, 60°
IP65 rated connectors for easy use both indoor and outdoor
LIGHT SOURCE
Source: 150W daylight white LED
CCT: 5.200K
CRI: > 83
Luminous flux: (18°) 11'746 lm; (38°) 10'167lm
Lux: (18°) 9'060 lux; (38°) 2'360lx @3 m
Lux: (18°) 3'261.1 lux; (38°) 849.6lx @5 m
Source life expectancy: > 50.000 h
OPTICS
Beam angle: (on-board) 18°, (inc) 38°, (opt) 60°
Field angle: (on-board) 36°, (inc) 63°
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: flood (without lens), 38° (inc)
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512, RDM
DMX channels: 1 / 2 / 5channel
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 28 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -20° ~ +45°
Flicker: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power consumption: 145,2
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 145,6W
Power consumption (at 120 V): 146,7W
Output (at 230 V): 13 units on a single power line
Output (at 120 V): 14
Power factor: pF: 120 V / 0,98 - 230 V / 0,91
PHYSICAL
Cooling: forced air with low noise fan
Sospension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

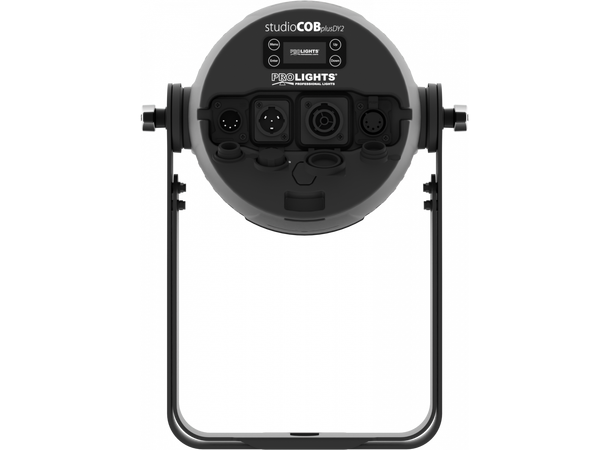

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
IP rating: IP65 for outdoor installations
Dimensions (WxHxD): 258x354x257mm
Weight: 4,95kg
