NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

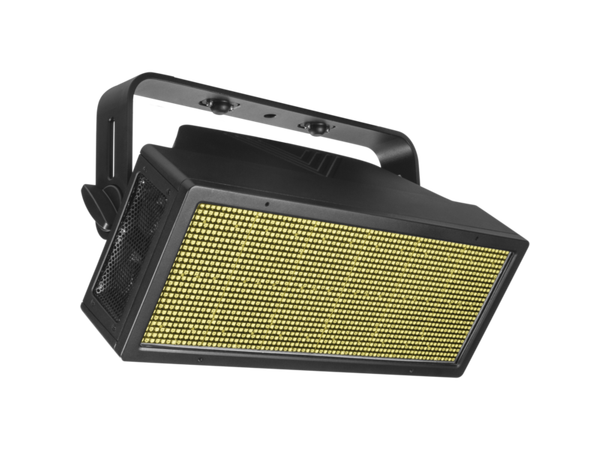

SUNBLAST LED is an exceptionally powerful IP65 graphic strobe, blinder and flood. Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.
Features:
Staggering 230'000 lumen output with 120° beam angle
Artnet and DMX control
Graphic effects from 48 individually controllable groups of 6.300 K white LED
IP65 rating
LIGHT SOURCE
Source: 1.728x1,3W high-power white LED
CCT: full ON: 6.300K
CRI: 85
Luminous flux: strobe: 230'000 lm - static ON: 50'638lm
Lux: strobe: 6'335 lx - static ON: 3'200lx @3 m
Source life expectancy: > 30.000 h
OPTICS
Beam angle: 110°
Field angle: 155°
DYNAMIC EFFECTS
Rotating gobos: dynamic patterns with speed and rotation control
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
BODY
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: black
CONTROL
Protocols: DMX512, RDM, Art-Net, Kling-Net
Pixel control: 1 / 2 / 4 / 8 / 16 / 48 individually select and control sections
RDM: RDM ready for fixture remote monitor and settings
Display: black TFT touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): strobe: 1.850 W (peak) - static: 633W
Output (at 230 V): 2 units on a single power line
PHYSICAL
Cooling: forced air with low noise fan

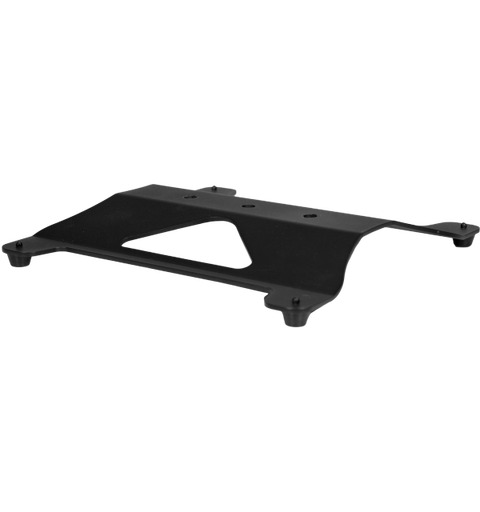

Sospension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
Signal connection: Seetronic XLR 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Seetronic powerCON waterproof IN/OUT connectors
IP rating: 65 for temporary outdoor application, not for fixed installation
Dimensions (WxHxD): 468x179x268mm
Weight: 14,3kg
