Offering a more compact design for smaller theatres and studios, the T10 Fresnel™ retains all the features, classically soft beam and benefits of our larger T11 Fresnel™ to deliver both superb performance and total generic flexibility!
The T10 Fresnel™ uses the MSL™ (Multi-Spectral Light) additive colour mixing concept combined with innovative TE™ technology to maintain the exceptional colour finesse of the T-Series.
With the MSL-TE™ 200W LED Engine generating 10.500 lm and all the advantages of cost, exchange or replacement, this LED technology provides identical colour characteristics, responses, and control of T-Series luminaires, giving absolute colour consistency across your Robe lighting installation.
A virtually controlled CCT range of 2.700K to 8.000K (extended range 1.800K - 10.000K), calibrated whites, and tungsten emulation gives precise control.
The virtually controlled CRI of 80-95+ delivers perfect colour rendition and flawless skin tones. For fast programming there is an onboard virtual DataSwatch™ colour library.
TRANSFERABLE ENGINE flexibility addresses the need for task-specific LED solutions, with three other TRANSFERABLE ENGINE options available - TE™ 200W LED DL (Daylight) White 6.000K; TE™ 200W LED TGW (Tungsten White) White 3.200K; TE™ 200W LED TW (Tuneable White) White 3.200 – 5.600K.
High-definition optics deliver precise projection, beam control, and an extreme, wide-ranging 11:1 ratio 5° - 55° zoom range, from its single, integral lens tube, without the need for additional lens tubes.
ur innovative, captive shutter system allows wide ranging blade adjustment which can be locked firmly in place. The T10 Fresnel™ contains a manual 1° MagFrost™ for instant softening, with a swappable 5° MagFrost™ stored on the magnetic holder within the fixture. Other optional frosts are available.

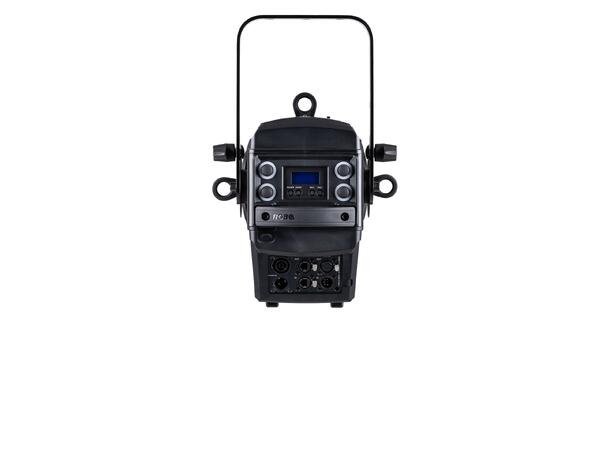

The unobtrusive T10 Fresnel™ is specifically designed to operate in noise-sensitive environments, with TV studio use enhanced via Cpulse™ flicker-free software and a dedicated plus/minus green control channel. All fixture controls are available in standalone mode via the rear display and control knobs.
Utilizing the rapid-change front lens system, the T10 Fresnel™ quickly transforms into a PC or Profile for total luminaire flexibility without the cost of separate generic purchases.
T10 Fresnel™ - The smaLight source
Light source
MSL-TE™ 200W LED Engine (Patented)
Light output
6.300 lm (integrating sphere)
5.100 lm (goniophotometer)
Zoom range
5°- 55°
Effects
Manual internal barndoors, frostller three into one generic solution!
