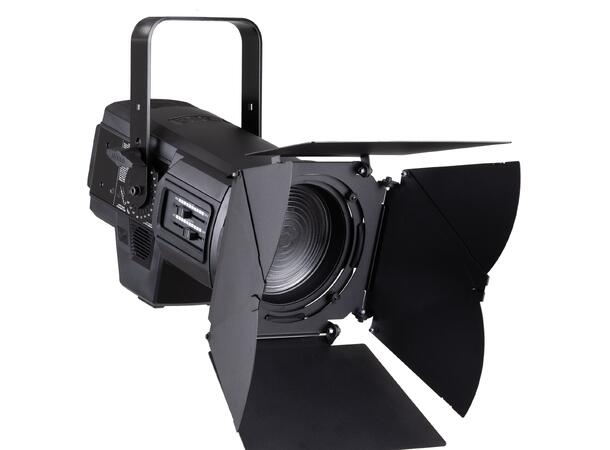

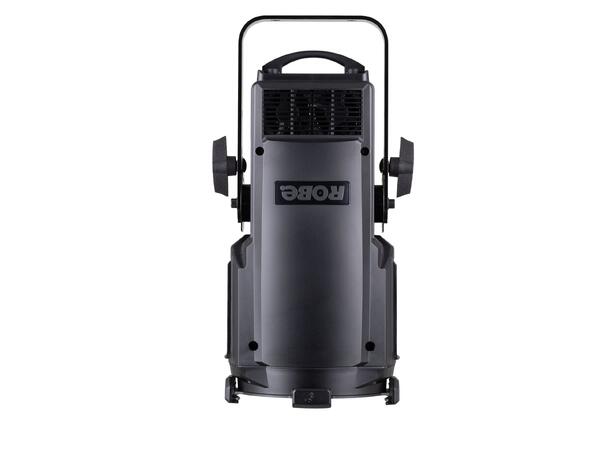

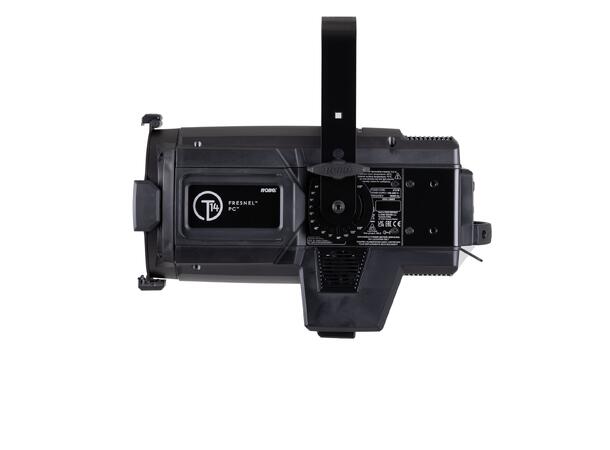

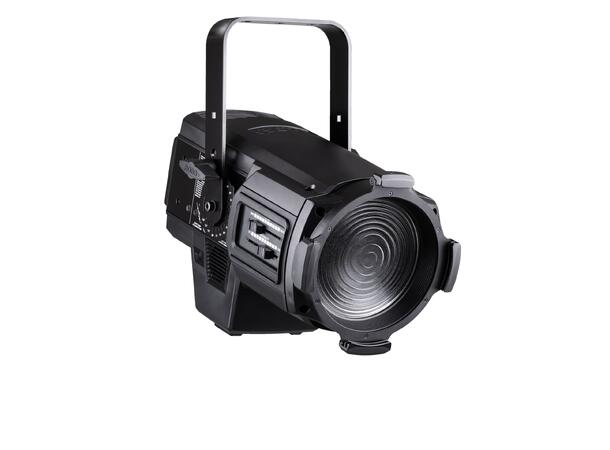

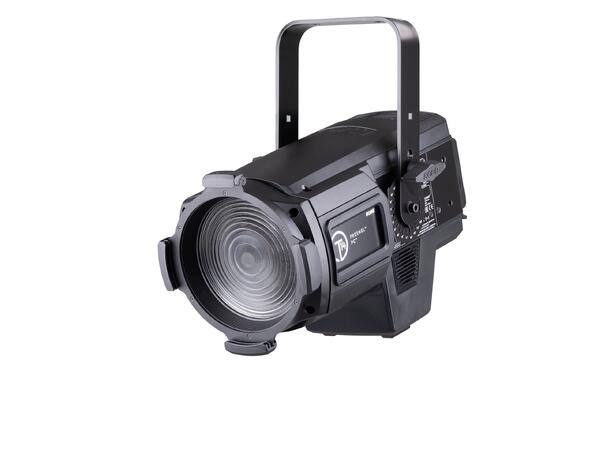

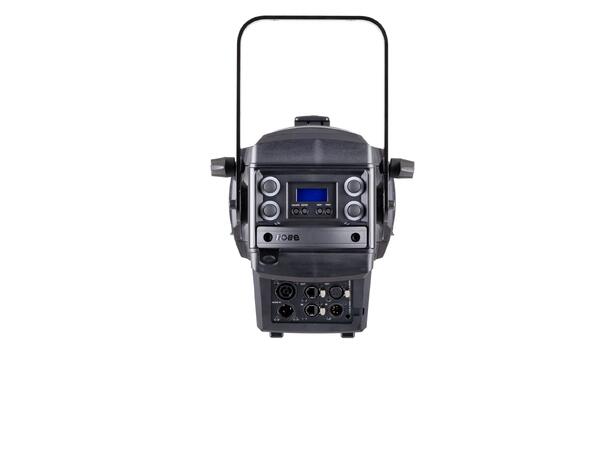

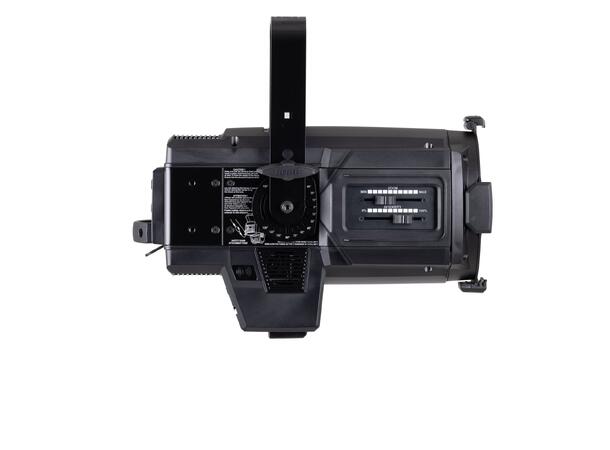

Designed for broadcast, film, and theatre professionals seeking a compact yet powerful manual wash luminaire, the T14 Fresnel™ expands Robe’s acclaimed T-Series with a highly versatile solution for smaller studios, performance spaces, and on-location productions.
At the heart of each fixture is Robe’s internally designed and manufactured MSL-TE™ 200W LED TRANSFERABLE ENGINE. Delivering an impressive 8.300 lumens through a 200 mm front lens, it provides the renowned T-Series MSL™ multi-spectral light quality while ensuring identical colour characteristics, response, and control across the entire T-Series range. The result? Seamless colour consistency throughout your lighting rig.
Robe’s innovative TRANSFERABLE ENGINE technology makes maintaining light quality simple and cost-effective. Engines can be changed quickly without specialist tools, while future LED upgrades can be adopted easily as technology evolves, extending fixture life and maximising re-turn on investment.
The T14 Fresnel delivers a classically soft, easy to blend beam. A motorised 10°—72° zoom, powered by the latest patented ZoomStat™ technology, keeps all optical elements enclosed within the fixture. The front lens remains fixed, eliminating visual distraction and helping protect the optics from contamination.
Advanced colour control is available via CMY, RGB, or individual RGBAL emitter control, offering a virtual CCT range from 2.700K to 8.000K (extended 1.800K - 10.000K), calibrated whites, tungsten emulation, and precise colour tuning. Outstanding TLCI and TM-30 performance ensures excellent skin-tone reproduction, while virtual CRI adjustment from 80 to 95 allows lighting to be tailored to any application.
For beautifully smooth fades and transitions, Robe’s renowned L3™ Low Light Linearity 18-bit dimming software is complemented by a choice of dimming curves.
Designed for both networked and stand-alone operation, the fixtures feature dual backlit faders for direct intensity and zoom control. Comprehensive fan settings, AirLOC™ technology, and Cpulse™ flicker-free operation make them ideal for noise-sensitive broadcast and studio environ-ments.
Additional innovations include BARS™ zoom locking, dedicated green/magenta control, and a rapid-change front lens system for maximum flexibility.

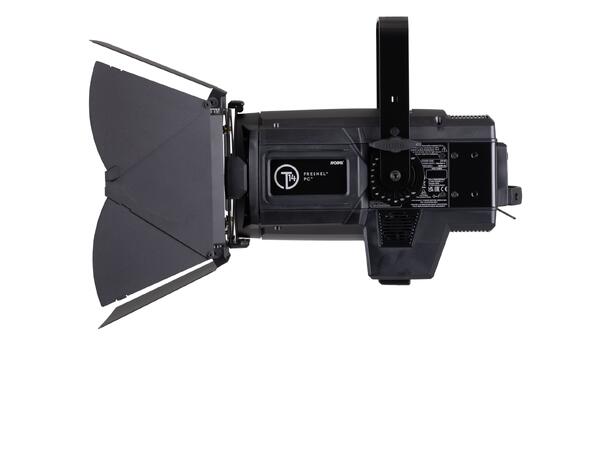

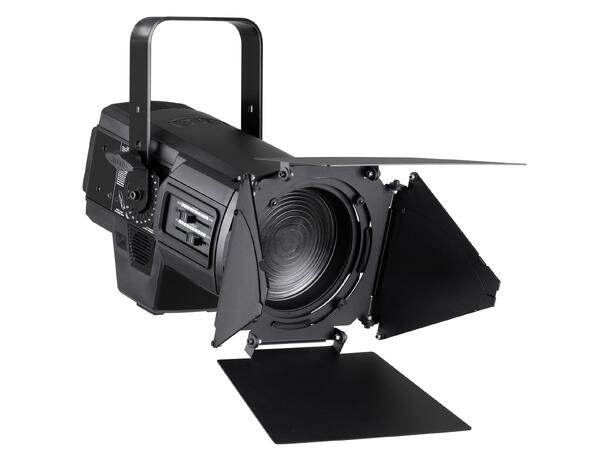

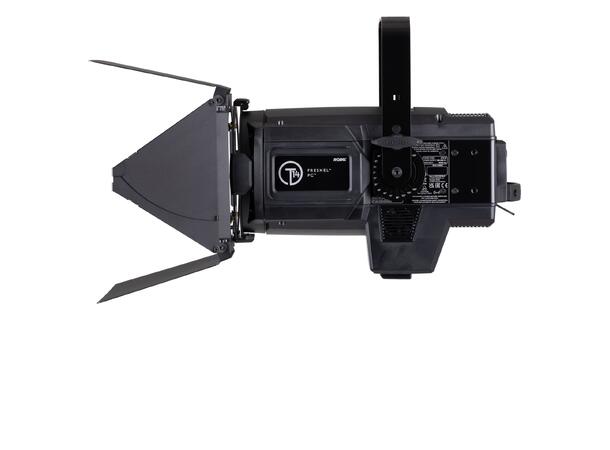

A full range of accessories, including four and eight-leaf barndoors and a pole-operation kit, completes the package.
The T14 Fresnel™ delivers compact size, classic control and exceptional light quality.
T14 Fresnel™ - Performance Beyon
Light source
MSL-TE™ 200W LED Engine
Light output
8.300 lm
Zoom range
10°—72°
Effects
CMY/RGB or RGBAL Colour mixing, Virtual colour wheel, Tungsten lamp effect, Motorized zoomd Size.
