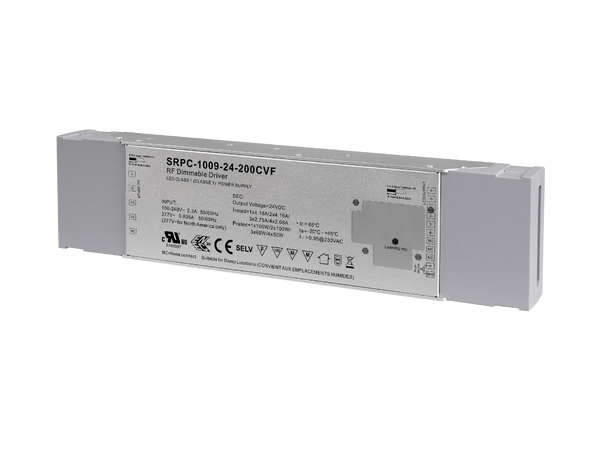

SRP-1009-24-200CVF is an UL and ENEC approved 200W dimmable PWM RGB LED driver with 4 channels 24VDC constant voltage output and 100-277VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The PWM LED driver is designed with RF control interface and can be compatible with a variety of SR-1009 series RF remotes. While working with a WiFi-RF transmitter, this driver can be controlled via APP installed on IOS or Android mobile devices. The driver can control single color, tunable white, RGB/RGBW LED lighting. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
- Dimmable 24V PWM RGB LED Driver, Max. output power 200W
- UL and ENEC certification
- 100-277VAC universal input
- 4 channels 24VDC constant voltage output
- Class ? power supply, full isolated plastic case
- Rubycon capacitors
- Built-in two stage active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 90%

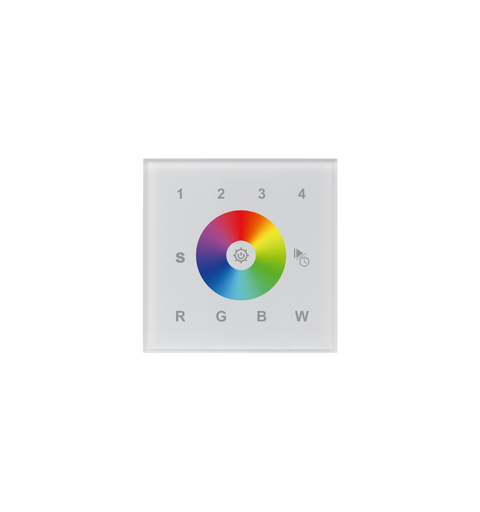

- RF control interface and can be compatible with a variety of SR-1009 series RF remotes
- Can be controlled via APP installed on IOS or Android mobile devices while working with a WiFi-RF transmitter
- To control constant voltage single color, tunable white, RGB/RGBW LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- IP20 rating, suitable for indoor LED lighting applications
- Radio frequency available: 869.5/434/916.5MHz
