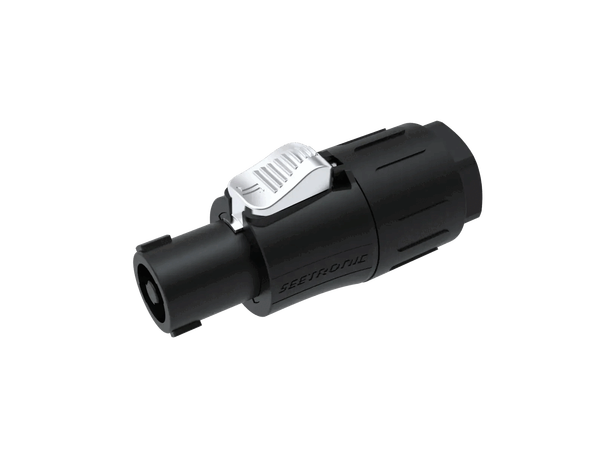

The SL4FXX-Pro is a lockable 4 pole female cable mount speaker connector engineered for professional audio cable termination and stable signal power transmission in demanding working environments. It is designed to mate with SLDM4 plugs or SLDDM4 / SL4MP-N sockets, adopting a reliable firm latch locking structure to avoid unintended drop off during operation.
Key Features
- 4 Pole Lockable Configuration: 4 contact female cable connector with secure latch lock to prevent accidental disconnection.
- High Current Capacity: Supports 32A continuous current under specified operating conditions.
- Wide Compatibility: Intermates with SLDM4 plugs as well as SLDDM4 and SL4MP-N panel mount sockets.
- Rebound Piece Termination: Fast, tool assisted wire locking for 1.5~4.0mm² conductors, suitable for 7~11mm outer diameter cables.
- Robust Material Performance: PA nylon housing, silver plated contacts and UL?94 V0 flame retardancy ensure dependable performance across 30°C to +80°C ambient temperatures.
- Field Friendly Assembly: Modular component set includes inner core, housing, strain relief and bushing for efficient on site installation and maintenance.
Application Notes
,
Professional Audio Use: Intended exclusively for loudspeaker cable connection in professional audio systems. Cannot be used as an AC source or power connector.
Mechanical Stability: Durable PA nylon housing and positive latch lock maintain stable connection performance through repeated mating cycles.
Installation Efficiency: Rebound piece terminal design simplifies conductor termination; defined torque specifications ensure consistent, reliable field assembly.
