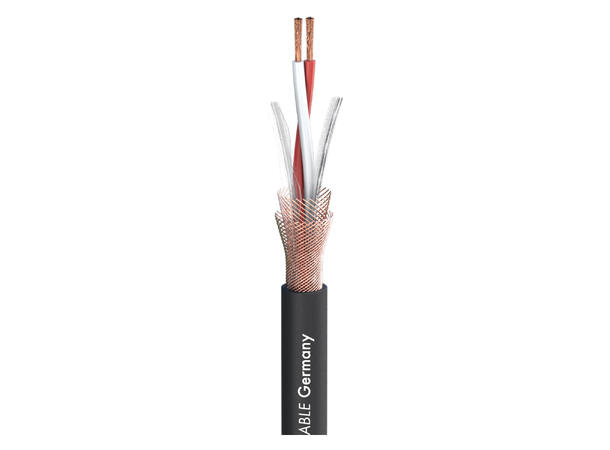

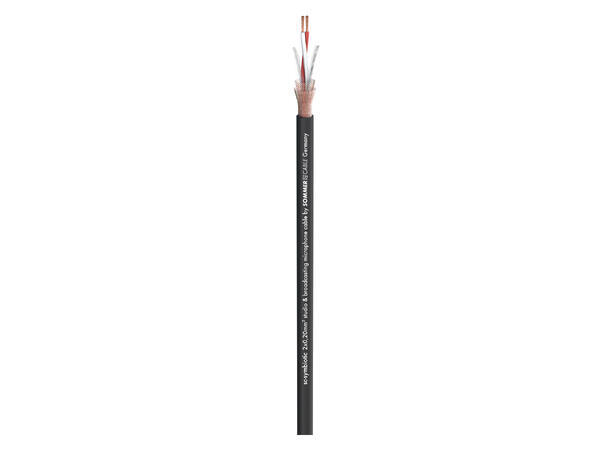

SOMMER Symbiotic Mikrofonkabel 2 x 0,20 mm², PVC Ø 5,20 mm, sort SOMMER Symbiotic Mikrofonkabel 2 x 0,20 mm², PVC Ø 5,20 mm, sort

SOMMER Symbiotic Mikrofonkabel

2 x 0,20 mm², PVC Ø 5,20 mm, sort

Varenr: 141360
Alt. varenr: 200-0601
37,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Bet that...

you can hear this cable on the radio? We’ve added the SC-Symbiotic to our range to meet the demands of our ambitious broadcast and sound engineers. They appreciate the extremely dense dual helical mesh screen of oxygen-free copper, the small diameter and the impressive flexibility we have achieved with the extremely fine strand construction of 102 x 0,05 mm single litz wires. The SC-Symbiotic was custom-designed according to specifications set forth by broadcasting stations all over the world. Because of its minimal weight the SC-Symbiotic is also ideal for use with gooseneck microphones.


Advantages:

  • Designed according to German radio and BBC specifications
  • Extremely flexible due to the fine strand construction (102 x0,05 mm single litz wires)
  • Small diameter for inconspicuous installation
  • Perfectly shielded against RF interference

Application:

  • Professional radio, TV and studio technology
  • Permanent indoor and outdoor installation in public buildings
  • Ideal for use with gooseneck microphones


Specifications:

Article number200-0601
NameSC-Symbiotic
EAN4049371002677
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
ApplicationMicrophone Cable
Colourblack
Colour detailedblack
Signal transmissionsymmetrical
Construction(2LI2Y0,20mm²)YDDY
Jacket materialPVC
Jacket Ø mm5,20
Number of Channels (audio)1
Inner conductor (audio)2
Inner conductor (audio) mm²0,20
Inner conductor Ø (audio) mm0,50
AWG (audio)24
ShieldingDouble copper spiral, counter-rotating
Shielding factor %100
Copper strands (audio)102
Copper strand Ø (audio) mm0,05
Conductor insulation materialPE
Conductor insulation Ø mm1,30
Weight per 1 m g38
UV-resistantyes
Fire load per m kWh0,13
Style variantround
Packing500 m spool
Packing100 m spool
Temperature min. °C-30
Temperature max. °C70
Width mm5,2
Height mm5,2
Capac. cond./cond. per 1 m (audio) pF95
Capacity wire/wire at 1 ft. (audio) pF28,956
Capac. cond./shield. per 1 m (audio) pF130
Capacity wire/electic screen at 1 ft. (audio) pF39,624
Insulation resist. per 1 km GO0,2
Insulation resist. per 1000 feet GO0,061
Insulation resist. per 1 km (audio) GO0,2
Insulation resist. per 1000 feet (audio) GO0,061
Conductor resistance per 1 km O94
Conductor resistance per 1000 ft. O28,6512
Shield. resistance per 1 km O25
Shield. resistance per 1000 ft. O7,62
BPVo-EuroclassFca
