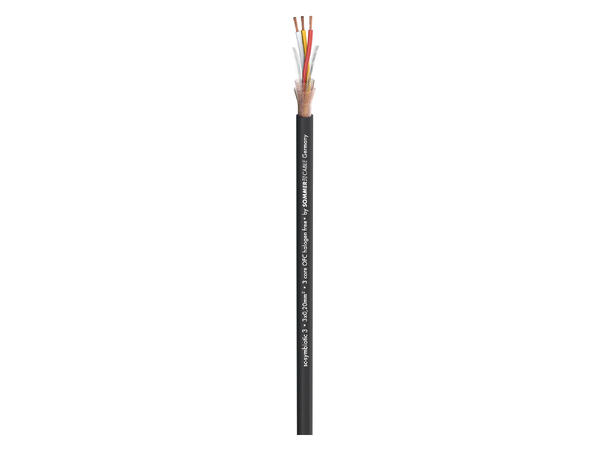

SOMMER Symbiotic 3 Mikrofonkabel 3 x 0,20 mm², TPE Ø 5,20 mm, sort SOMMER Symbiotic 3 Mikrofonkabel 3 x 0,20 mm², TPE Ø 5,20 mm, sort

SOMMER Symbiotic 3 Mikrofonkabel

3 x 0,20 mm², TPE Ø 5,20 mm, sort

Varenr: 141361
Alt. varenr: 200-0601H3
50,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Bet that...

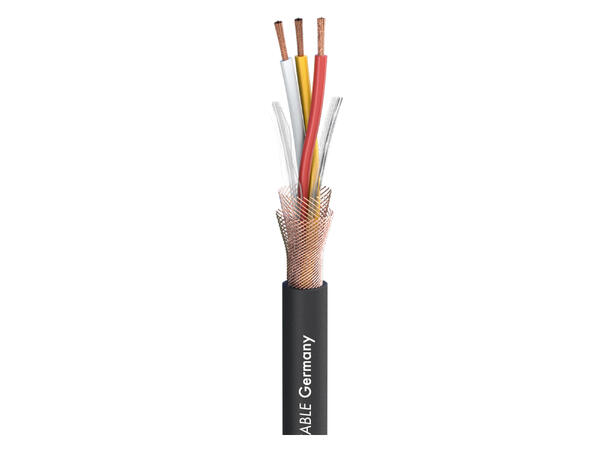

you can hear this cable on the radio? We’ve added the SC-Symbiotic 3 to our range to meet the demands of our ambitious broadcast and sound engineers. They appreciate the extremely dense dual helical mesh screen of oxygen-free copper, the small diameter and the impressive flexibility we have achieved with the extremely fine strand construction of 102 x 0,05 mm single litz wires. The SC-Symbiotic 3 was custom-designed according to specifications set forth by broadcasting stations all over the world. Because of its minimal weight the SC-Symbiotic 3 is also ideal for use with gooseneck microphones.

The 3-wire version with a halogen-free and cold-resistant outer jacket (compliant with VDE0472/part 815) has an extra wire which, when connected, allows the shell
grounds of the XLR connectors to be linked. This wiring scheme is standard or even compulsory with some TV and radio stations. Of course, this wire can also be used for transmitting a supply voltage.


Advantages:

  • Designed according to German radio and BBC specifications
  • Extremely flexible due to the fine strand construction (102 x0,05 mm single litz wires)
  • Small diameter for inconspicuous installation
  • Perfectly shielded against RF interference

Application:

  • Professional radio, TV and studio technology
  • Outdoor transmission (TPE)
  • Permanent indoor and outdoor installation in public buildings
  • Ideal for use with gooseneck microphones


Specifications:

Article number200-0601H3
NameSC-Symbiotic 3
EAN4049371004596
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
ApplicationMicrophone Cable
Colourblack
Colour detailedblack
Signal transmissionsymmetrical
Construction(3LI2Y0,20mm²)YDDY
Jacket materialTPE
Jacket Ø mm5,20
Number of Channels (audio)1
Inner conductor (audio)3
Inner conductor (audio) mm²0,20
Inner conductor Ø (audio) mm0,50
AWG (audio)24
ShieldingDouble copper spiral, counter-rotating
Shielding factor %100
Copper strands (audio)102
Copper strand Ø (audio) mm0,05
Conductor insulation materialPE
Conductor insulation Ø mm1,30
Weight per 1 m g38
UV-resistantyes
Fire load per m kWh0,11
Style variantround
Packing100 m spool
Packing500 m spool
Temperature min. °C-30
Temperature max. °C70
Width mm5,2
Height mm5,2
Capac. cond./cond. per 1 m (audio) pF95
Capacity wire/wire at 1 ft. (audio) pF28,956
Capac. cond./shield. per 1 m (audio) pF130
Capacity wire/electic screen at 1 ft. (audio) pF39,624
Insulation resist. per 1 km GO0,2
Insulation resist. per 1000 feet GO0,061
Insulation resist. per 1 km (audio) GO0,2
Insulation resist. per 1000 feet (audio) GO0,061
Conductor resistance per 1 km O94
Conductor resistance per 1000 ft. O28,6512
Shield. resistance per 1 km O25
Shield. resistance per 1000 ft. O7,62
BPVo-EuroclassFca
