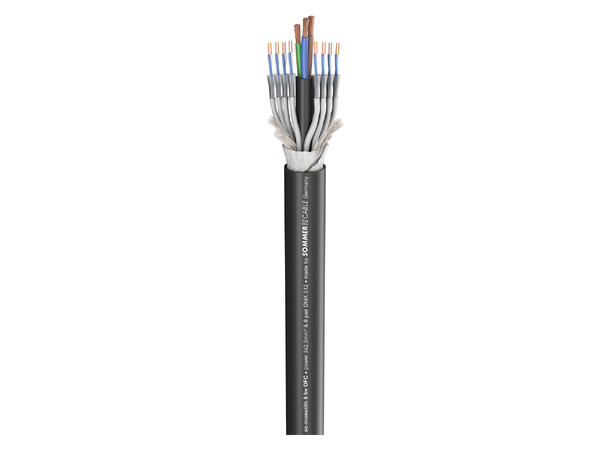

SOMMER Monolith 8 HV Hybridkabel

pwr: 3x 2,50 mm², DMX: 2x 0,14 mm²

Varenr: 141379

Alt. varenr: 500-0281-8

198,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

When the lights begin to dance...

the people stare in wonder! But there is quite a bit of technology behind it. And cables do not play the least important part here. The power for the spotlights and the control signals for their movements must be transmitted via cables. Both cables are combined in a robust cable hose, providing the input lead for the lighting desk and other DMX 512-equipped control devices.

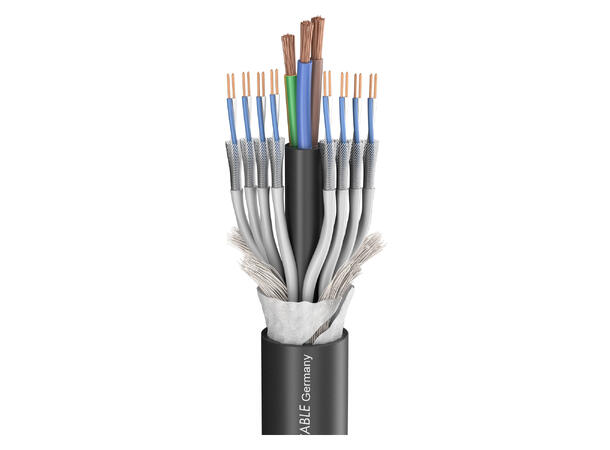

The SC-Monolith 8 HV POWER/DMX consists of a 3 x 2,50 mm² power cable and eight DMX 512 lines. Each DMX wire pair is shielded by a tinned helical copper mesh. The power cable was developed in compliance with VDE and has its own jacket for extra safety.

Of course the AES/EBU cable can also be used as a microphone cable or as a feed line for active loudspeaker systems.

Advantages:

Parallel control for lighting boards through one cable via power line and DMX signal
Very flexible and enormously tread-resistant due to the round jacket made of cotton and viscose
Very good pairwise shielding of the DMX lines due to tinned helical copper mesh screen or copper braiding

Application:

Control line for DMX lighting consoles (wave impedance of 0 O)
Analogue + digital audio multipair with power supply

Specifications:

Article number	500-0281-8
Name	SC-Monolith 8 HV
EAN	4049371051002
Properties	Analog
Properties	Digital 110 O AES / EBU
Properties	OFC oxygen free copper
Application area	Mobile outdoor / indoor
Application area	Stage / live
Application area	Installation
Application area	Studio / Broadcast
Application	DMX & Power
Colour	black
Colour detailed	black
Signal transmission	symmetrical
Construction	(3LIY2,5mm²)Y+ 8(2LIY0,14mm²)DYVLY
Construction (power)	(3LIY2,5mm²)Y
Construction (AES/EBU, DMX)	8(2LIY0,14mm²)DY
Jacket material	PVC
Jacket Ø mm	17,40
Jacket Ø (power) mm	8,30
Jacket Ø (AES/EBU, DMX) mm	3,00
Number of Channels (power)	1
Number of Channels (AES/EBU, DMX)	8
Inner conductor (power)	3
Inner conductor (AES/EBU, DMX)	2
Inner conductor (power) mm²	2,50
Inner conductor (AES/EBU, DMX) mm²	0,14
Inner conductor Ø (power) mm	1,78
Inner conductor Ø (AES/EBU, DMX) mm	0,42
AWG (power)	13
AWG (AES/EBU, DMX)	25
Shielding (AES/EBU, DMX)	Copper spiral, tin-plated
Shielding factor %	90
Copper strands (power)	28
Copper strands (AES/EBU, DMX)	36
Copper strand Ø (power) mm	0,25
Copper strand Ø (AES/EBU, DMX) mm	0,07
Conductor insulation Ø mm	0,00
Weight per 1 m g	390
UV-resistant	yes
Fire load per m kWh	1,38
Style variant	round
Packing	bulk stock
Temperature min. °C	-30
Temperature max. °C	70
Width mm	17,4
Height mm	17,4
Capac. cond./cond. per 1 m (AES/EBU, DMX) pF	52
Capacity wire/wire at 1 ft. (AES/EBU, DMX) pF	15,8496
Capac. cond./shield. per 1 m (AES/EBU, DMX) pF	89
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) pF	27,1272
Impedance O	0
Surge impedance (AES/EBU, DMX) O	110
Insulation resist. per 1 km GO	0
Insulation resist. per 1000 feet GO	0
Insulation resist. per 1 km (AES/EBU, DMX) GO	0,1
Insulation resist. per 1000 feet (AES/EBU, DMX) GO	0,0305
Conductor resistance per 1 km O	0
Conductor resistance per 1000 ft. O	0
Conductor resistance per 1 km (power) O	80
Conductor resistance per 1000 ft. (power) O	24,384
BPVo-Euroclass	Fca
