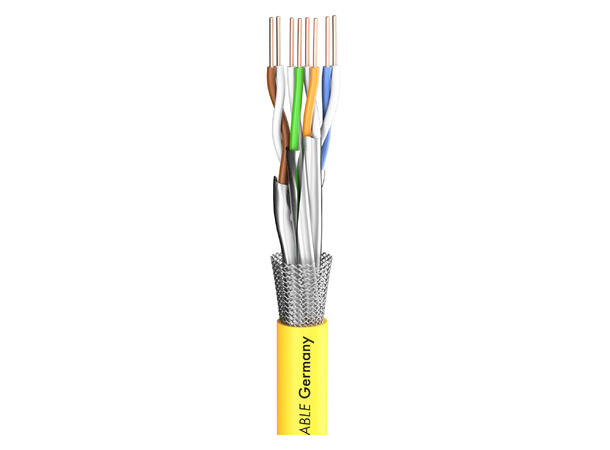

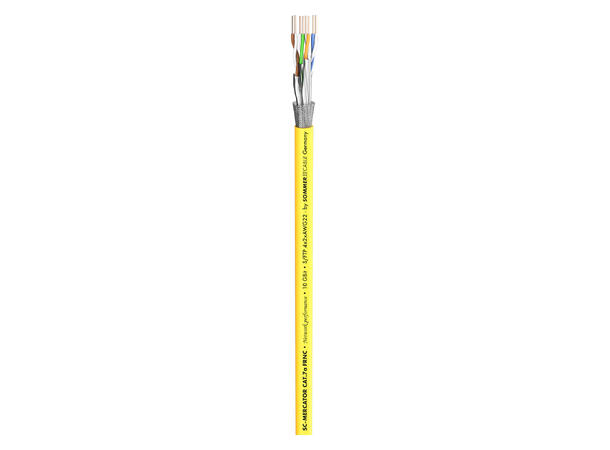

SOMMER MERCATOR CAT.7a CPR-Version

FRNC, Ø 8,40 mm, Dca

Varenr: 141419
Alt. varenr: 580-0417FC
52,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

It‘s better to be on the safe side...

for computer cables are produced in such great quantities that due to the tremendous pricing pressure, the quality often falls by the wayside. This results in a poor transmission and an expensive, time-robbing fault tracing. We deliver a high-quality version with a short twist pitch and a durable FRNC jacket. The perfect installation line for the transmission of high Class F bitrates in compliance with the
approbation (FAST ETHERNET, ATM155 Protocols, EN 50173 2ed, EN 50288-1, EN 50288-5-1, IEC 61156-5, ISO/IEC 11801 2ed). It is downward compatible with all existing network protocols CAT.5, CAT.6 und CAT.6a.


Advantages:

  • Short twist pitch and high-quality insulation
  • Great durability due to special jacket compound
  • Length overprint on cable

Application:

  • Connection of computers and media technical equipment


Specifications:

Article number580-0417FC
NameSC-MERCATOR CAT.7a CPR-Version
EAN4049371375269
BrandSommer cable
PropertiesHalogen-free / LSZH
PropertiesOFC oxygen free copper
PropertiesDigital 110 O AES / EBU
PropertiesFRNC flame retardant
Application areaStudio / Broadcast
Application areaInstallation
ApplicationCat.7a
Colouryellow

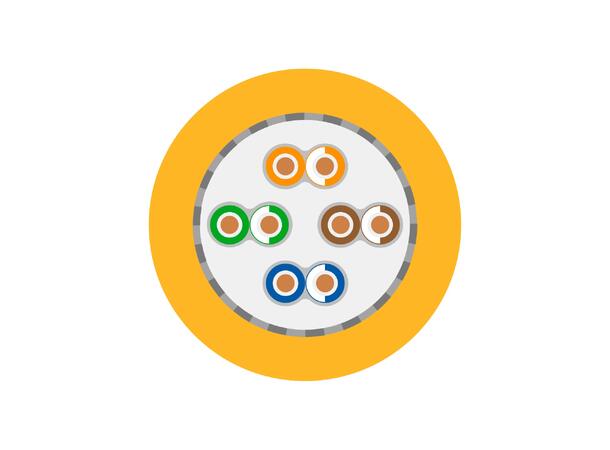

ConstructionJ02YSCH 4x2x0,64mm
Jacket materialFRNC
Jacket Ø mm8,40
Number of Channels (network)1
Inner conductor (network)8
Inner conductor Ø (network) mm0,64
AWG (network)22
ShieldingAL/PT-foil + Copper braiding
Shielding factor %100
Copper strands (network)1
Copper strand Ø (network) mm64,00
Conductor insulation materialSkin / Foam / Skin-PE
Weight per 1 m g73
Fire load per m kWh0,19
Style variantround
Packing100/500 m role
CAT-Type7a
Max. section length m190
Temperature min. °C-20
Temperature max. °C60
Width mm8,4
Height mm8,4
Capacity wire/wire at 1m (network) pF45
Capacity wire/wire at 1 ft. (network) pF13,716
Impedance O100
Loop resistance per km O115
Loop resistance per 1000 ft. O35,052
Max. delay (skew)15 ns @ 100 MHz
BPVo-EuroclassDca
