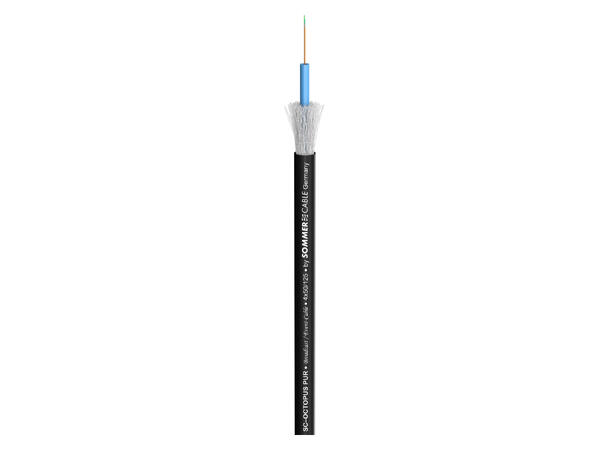

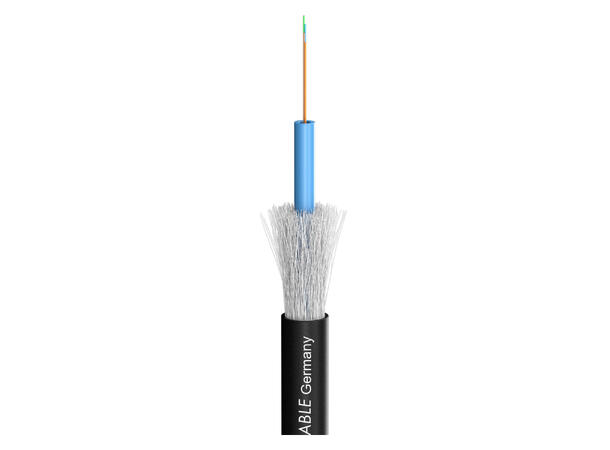

SOMMER Octopus-G Fiberkabel, OM2 4 x 50/125 µm OM2, FRNC / LSZH, sort SOMMER Octopus-G Fiberkabel, OM2 4 x 50/125 µm OM2, FRNC / LSZH, sort SOMMER Octopus-G Fiberkabel, OM2 4 x 50/125 µm OM2, FRNC / LSZH, sort SOMMER Octopus-G Fiberkabel, OM2 4 x 50/125 µm OM2, FRNC / LSZH, sort

SOMMER Octopus-G Fiberkabel, OM2

4 x 50/125 µm OM2, FRNC / LSZH, sort

Varenr: 141444
Alt. varenr: 590-0511-04
31,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

WARP 1...

or to be more precise, you will be able to reach the simple speed of light with our SC-Octopus-G LWL cable. With it you can transmit your digital audio and video signals across large distances of up to 2 km (at 100 MBit/s). The multimode gradient fibres with a core diameter of 50 µm (insulation/cladding gauge 125 µm) is available for bandwidths: OM2 = 500 MHz,

For permanent indoor and outdoor installations we recommend the UV-resistant FRNC/LSZH version.


Advantages:

  • Digital signal transmission over long distances
  • Compact, lightweight, robust and metal free
  • Die-electrical glass fibre armouring (rodent protection)
  • Longitudinal water-tight in compliance with IED 60794-1-F5

Application:

  • High-quality, fast connection for the transmission of digital signals
  • Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities)
  • Indoor and outdoor transmissions with long transmission lengths


Specifications:

Article number590-0511-04
NameSC-Octopus-G
EAN4049371051118
PropertiesFRNC flame retardant
PropertiesHalogen-free / LSZH
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
ApplicationOptical fiber
Colourblack
Colour detailedblack
ConstructionU-DQ(ZN)BH2Y
Jacket materialFRNC / LSZH
Jacket Ø mm7,00
Weight per 1 m g51
UV-resistantyes
Style variantround
Core (fiber) µm50
Cladding (fiber) µm125
Fibres4
QualityOM2
Temperature min. °C-10
Temperature max. °C50
Max. tensile force kN1,6
Width mm7
Height mm7
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
