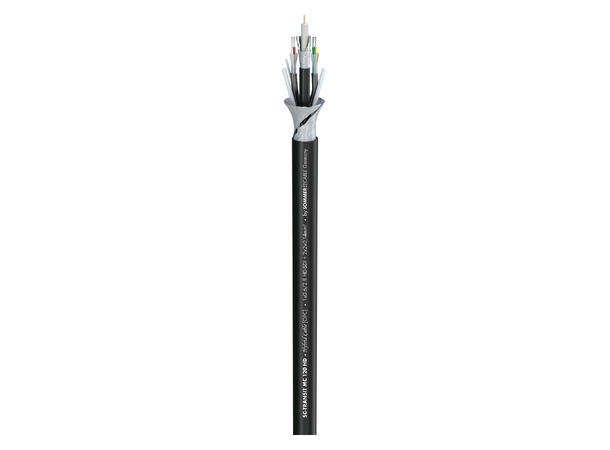

SOMMER Transit MC 120 HD Hybridkabel video/audio, TPE Ø 10,00 mm, sort

SOMMER Transit MC 120 HD Hybridkabel

video/audio, TPE Ø 10,00 mm, sort

Varenr: 141483

Alt. varenr: 600-0791

108,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Triplets in one belly...

Carry both picture and sound. The picture line is used to transmit an HD-SDI video signal with 75 O, the sound line consists of a shielded AES/EBU-capable microphone cable with a wire cross-section of ?????????? 2 x 0,14 mm². The Transit MC 120 HD, which contains a video and two audio lines, is extremely cold-resistant (–40 °C mobile use, –50 °C fixed installation) and thus ideal for mobile applications, especially for cameras with stereo audio connections.

Advantages:

HD-SDI video 75 O + audio
Very compact and flexible
Easy handling

Application:

Connection of surveillance monitors, cameras, cutting consoles
Installation (studio, theatre, building technology, rack mount)
Outdoor applications

Specifications:

Article number	600-0791
Name	Transit MC 120 HD
EAN	4049371352192
Properties	Digital 75 O
Properties	Analog
Properties	SDI
Properties	HDTV
Properties	OFC oxygen free copper
Application area	Studio / Broadcast
Application area	Installation
Application area	ELA 100 V
Application area	Mobile outdoor / indoor
Application	hybrid cable
Colour	black
Colour detailed	black

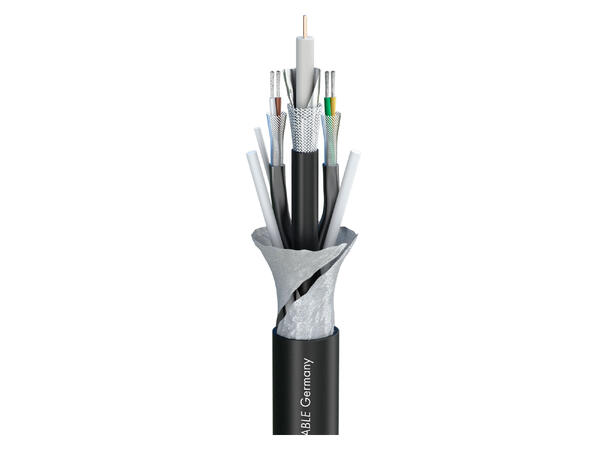

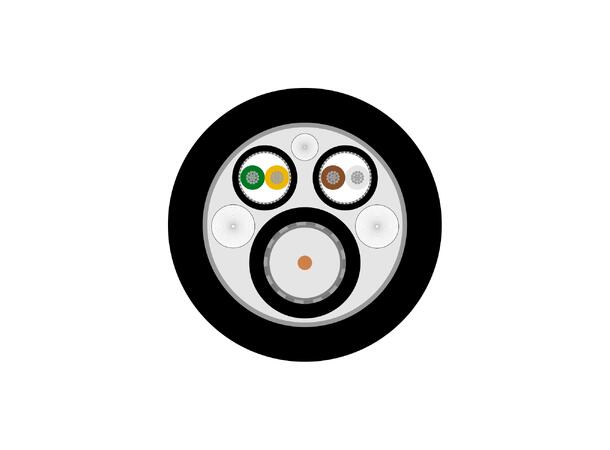

Construction	2LI2Y0,6(ST)CY+2(2LIY0,14mm²)(ST)DYY
Construction (audio)	2(2LIY0,14mm²)(ST)DY
Construction (video)	2LI2Y0,6(ST)CY
Jacket material	TPE
Jacket Ø mm	10,00
Jacket Ø (audio) mm	3,10
Jacket Ø (video) mm	4,20
Number of Channels (audio)	2
Number of Channels (video)	1
Inner conductor (audio)	2
Inner conductor (video)	1
Inner conductor (audio) mm²	0,14
Inner conductor Ø (audio) mm	0,42
Inner conductor Ø (video) mm	0,60
AWG (audio)	26
AWG (video)	23
Shielding (audio)	Copper spiral, tin-plated
Shielding (video)	Copper braiding tin-plated + AL / PT foil
Shielding factor %	100
Copper strands (audio)	18
Copper strand Ø (audio) mm	0,10
Wire insulation material (video)	Foam / Skin-PE
Conductor insulation Ø (video) mm	2,80
Weight per 1 m g	110
UV-resistant	yes
Fire load per m kWh	0,69
Style variant	round
Packing	bulk stock
Temperature min. °C	-50
Temperature max. °C	85
Width mm	10
Height mm	10,5
Capac. cond./cond. per 1 m (audio) pF	50
Capacity wire/wire at 1 ft. (audio) pF	15,24
Capac. cond./shield. per 1 m (audio) pF	95
Capacity wire/electic screen at 1 ft. (audio) pF	28,956
Capacity wire/electic screen at 1m (video) pF	67
Capacity wire/electic screen at 1 ft. (video) pF	20,4216

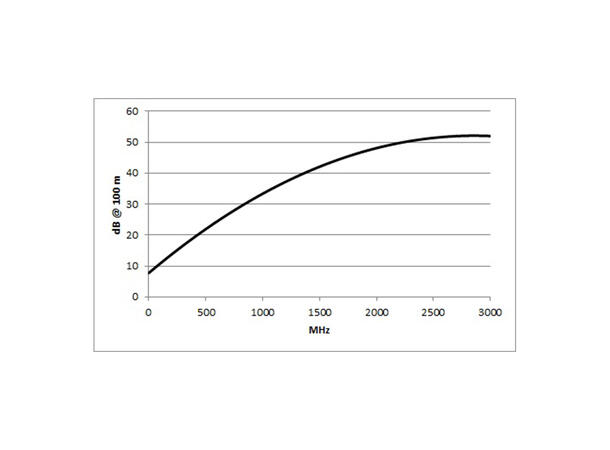

Damping at 50 MHz (100m & 20° C) dB	7,3
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	2,225
Damping at 200 MHz (100m & 20° C) dB	14,5
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	4,4196
Damping at 470 MHz (100m & 20° C) dB	22,7
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	6,919
Damping at 862 MHz (100m & 20° C) dB	31,1
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	9,4793
Damping at 1000 MHz (100m & 20° C) dB	33,6
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	10,2413
Damping at 1485 MHz (100m & 20° C) dB	41,2
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	12,5578
Impedance O	75
Surge impedance (audio) O	110
Impedance (video) O	75
BPVo-Euroclass	Fca
