SOMMER Vector (RCB) CPR Videokabel 1 x 0,80, FRNC Ø 6,00 mm, blå, Dca SOMMER Vector (RCB) CPR Videokabel 1 x 0,80, FRNC Ø 6,00 mm, blå, Dca SOMMER Vector (RCB) CPR Videokabel 1 x 0,80, FRNC Ø 6,00 mm, blå, Dca SOMMER Vector (RCB) CPR Videokabel 1 x 0,80, FRNC Ø 6,00 mm, blå, Dca

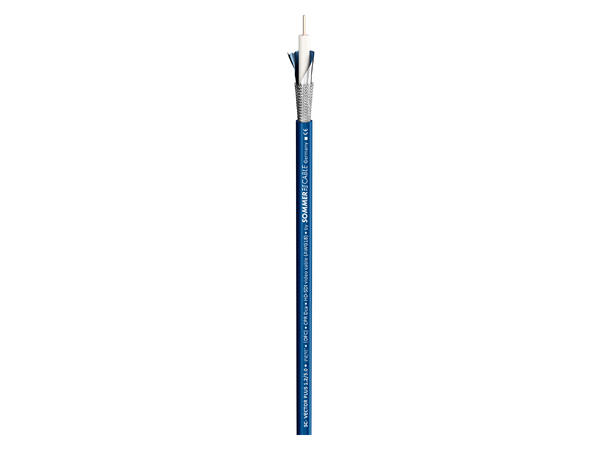

SOMMER Vector (RCB) CPR Videokabel

1 x 0,80, FRNC Ø 6,00 mm, blå, Dca

Varenr: 141715
Alt. varenr: 600-0162FC
28,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

As swift as an arrow...

is the data transmission of the SC-Vector (RCB) CPR-Version with its 1.5 Gb/s rate which also guarantees a low return loss. Of course, the SC-Vector (RCB) CPR-Version can also serve as a high-quality G-SDI-video line for studio or OB van applications. With its dual shielding and outstanding damping values it offers numerous benefits compared to simple video cables. In comparison to a 0.6/3.7 video cable it allows up to 30 % longer transmission distances.
The SC-Vector (RCB) CPR-Version is used in OB vans, digital TV, at sporting events, live shows or other large events.


Advantages:

  • Low damping values for long distances
  • Robust and durable outer sleeve

Application:

  • Digital SDI/HD-SDI long distance transmission
  • Video transmission for OB van technology


Specifications:

NameSC-Vector (RCB) CPR-Version
EAN4049371395342
Properties6G-SDI
PropertiesDigital 75 O
PropertiesHalogen-free / LSZH
PropertiesSDI
PropertiesFRNC flame retardant
Properties3G-SDI
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaELA 100 V
Application areaMobile outdoor / indoor
Application areaStudio / Broadcast
Application areaInstallation
Applicationvideo cable
Colourblue
Colour detailedblue

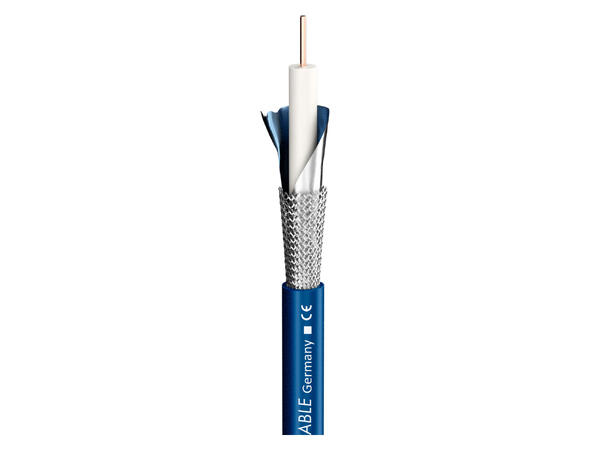

Construction1x02YS(ST)CH0,8/3,7 HD-SDI
Jacket materialFRNC
Jacket Ø mm6,00
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,50
Inner conductor Ø (video) mm0,80
AWG (video)20
ShieldingAL / PT-foil + Copper braiding tin-plated 85 %
Shielding factor %100
Copper strands (video)1
Copper strand Ø (video) mm0,80
Conductor insulation materialGas Injected-PE
Conductor insulation Ø mm3,70
Weight per 1 m g40
Fire load per m kWh0,16
Style variantround
Packingbulk stock
Velocity factor0,82
Temperature min. °C-10
Temperature max. °C80

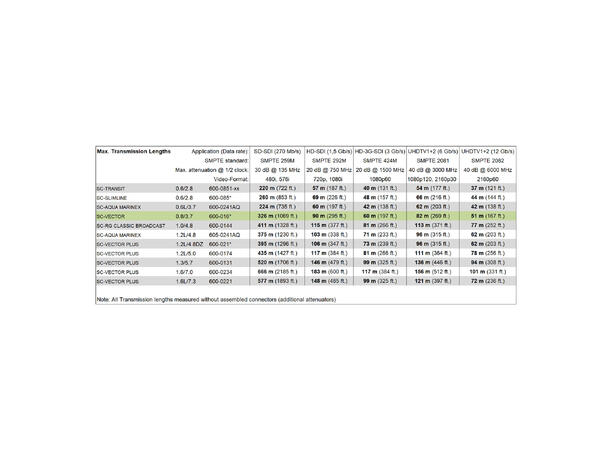

Max. transmission distance (SDI) m220
Max. Transmission length (3G-SDI) m160
Max. Transmission length (6G-SDI) m70
Width mm6
Height mm6
Capacity wire/electic screen at 1m (video) pF52,9
Capacity wire/electic screen at 1 ft. (video) pF16,1239

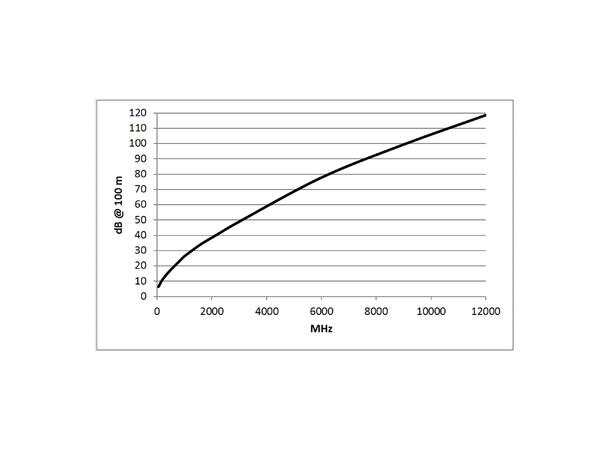

Damping at 200 MHz (100m & 20° C) dB11,2
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB3,4138
Damping at 470 MHz (100m & 20° C) dB17
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB5,1816
Damping at 862 MHz (100m & 20° C) dB24
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB7,3152
Damping at 1000 MHz (100m & 20° C) dB26,4
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB8,0467
Damping at 1485 MHz (100m & 20° C) dB32,8
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB9,9974
Damping at 1750 MHz (100m & 20° C) dB35,9
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB10,9423
Damping at 2150 MHz (100m & 20° C) dB40,1
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB12,2225
Damping at 3000 MHz (100m & 20° C) dB47,9
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB14,5999
Damping at 6000 MHz (100m & 20° C) dB77,8
Damping at 9000 MHz (100m & 20° C) dB99,4
Damping at 12000 MHz (100m & 20° C) dB118,6
Impedance O75
Conductor resistance per 1 km O37
Conductor resistance per 1000 ft. O11,2776
Shield. resistance per 1 km O20
Shield. resistance per 1000 ft. O6,096
BPVo-EuroclassDca
