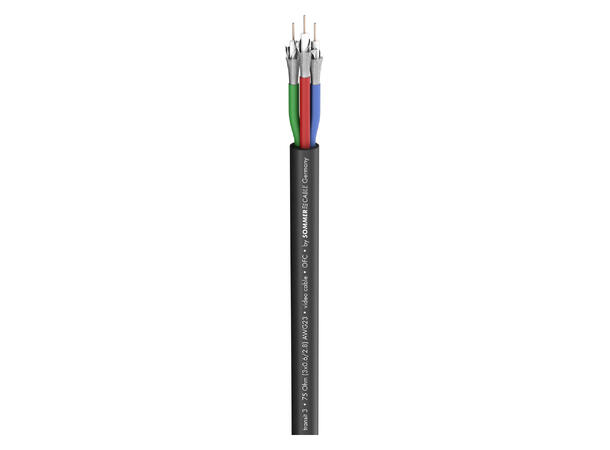

SOMMER Transit 3 HD Videokabel 1 x 0,60/2,80, PVC Ø 11,20 mm, sort

SOMMER Transit 3 HD Videokabel

1 x 0,60/2,80, PVC Ø 11,20 mm, sort

Varenr: 141763

Alt. varenr: 600-0851-03

92,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

For everyone needing a long line...

our however is recommenced for extreme lengths exceeding 40 m. But it is also preferred for short distances in professional video studios where it guarantees an image which is totally devoid of shadows and flickering. The Transit 3 HD impresses with its high flexibility, extended functionality and dual shielding (Cu mesh screen + AL/PT foil) of the single wires.

Advantages:

Dependable and very high-quality image transmission over long distances
Very good damping and transmission values even with excessive lengths
Highly flexible due to special jacket compound and tight litz wire stranding
Cable reel rollable

Application:

For permanent installation over long distances (theatres, sports arenas,
media & conference centres)
Multi-coax cable reel

Specifications:

Article number	600-0851-03
Name	Transit 3 HD
EAN	4049371001663
Properties	OFC oxygen free copper
Properties	HDTV
Properties	SDI
Properties	Analog
Properties	Digital 75 O
Application area	ELA 100 V
Application area	Installation
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application	video cable
Colour	black
Colour detailed	black

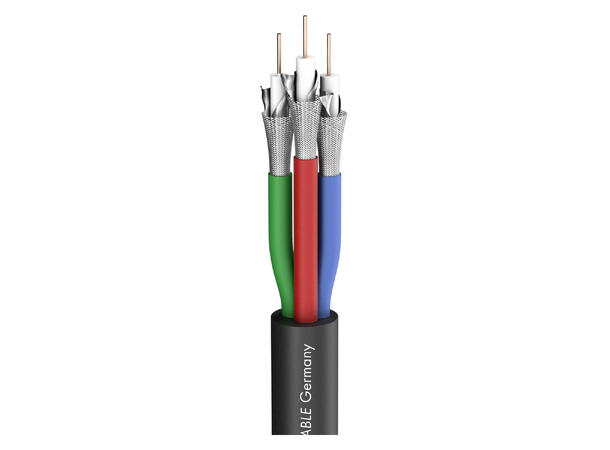

Construction	3x2YS(ST)CY0,6/2,8
Construction (video)	2YS(ST)CY0,6/2,8
Jacket material	PVC
Jacket Ø mm	11,20
Number of Channels (video)	1
Inner conductor (video)	3
Inner conductor (video) mm²	0,28
Inner conductor Ø (video) mm	0,60
AWG (video)	23
Shielding	Copper braiding tin-plated 90 % + AL / PT-foil
Shielding factor %	100
Copper strands (video)	1
Copper strand Ø (video) mm	0,60
Conductor insulation material	Gas-injected Foam / Skin-PE
Conductor insulation Ø (video) mm	2,80
Weight per 1 m g	150
UV-resistant	yes
Fire load per m kWh	0,84
Style variant	round
Packing	bulk stock
Temperature min. °C	-30
Temperature max. °C	70

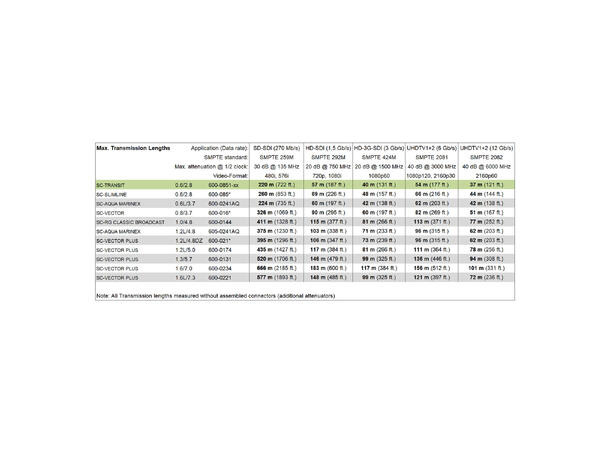

Max. transmission distance (SDI) m	180
Max. transmission distance (HD-SDI) m	120
Max. transmission distance (3G) m	60
Width mm	11,2
Height mm	11,2
Capacity wire/electic screen at 1m (video) pF	55
Capacity wire/electic screen at 1 ft. (video) pF	16,764

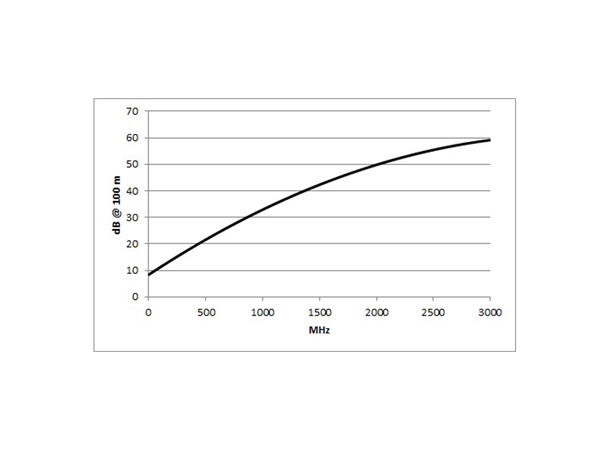

Damping at 5 MHz (100m & 20° C) dB	8,7
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB	2,6518
Damping at 50 MHz (100m & 20° C) dB	9,8
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	2,987
Damping at 100 MHz (100m & 20° C) dB	11,2
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB	3,4138
Damping at 200 MHz (100m & 20° C) dB	13,9
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	4,2367
Damping at 470 MHz (100m & 20° C) dB	20,9
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	6,3703
Damping at 862 MHz (100m & 20° C) dB	29,9
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	9,1135
Damping at 1000 MHz (100m & 20° C) dB	32,9
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	10,0279
Damping at 1485 MHz (100m & 20° C) dB	42
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	12,8016
Damping at 1750 MHz (100m & 20° C) dB	46,3
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	14,1122
Damping at 2150 MHz (100m & 20° C) dB	51,7
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	15,7582
Damping at 3000 MHz (100m & 20° C) dB	59,1
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	18,0137
Impedance O	75
BPVo-Euroclass	Fca
