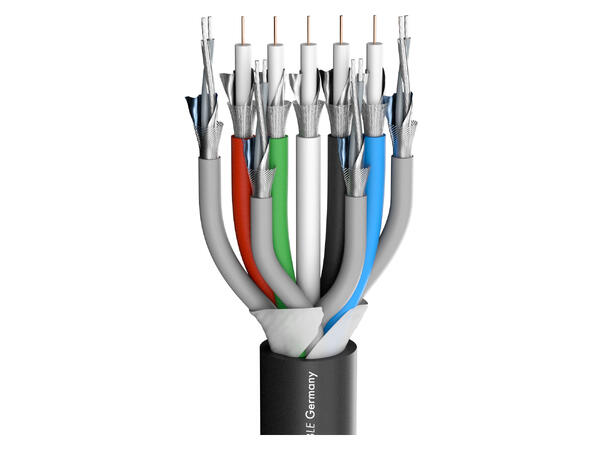

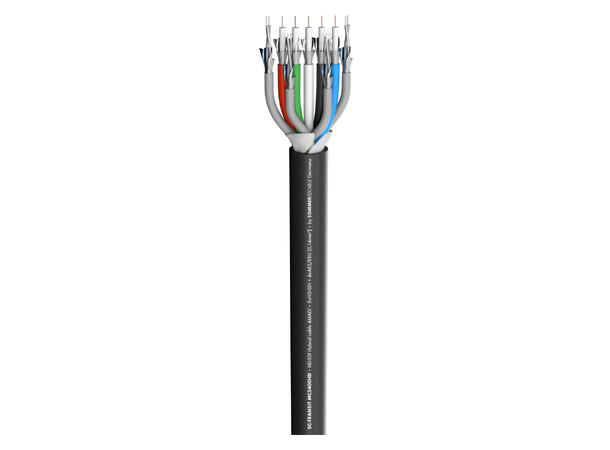

SOMMER Transit MC5400 Kombi Videokabel video/audio, PVC Ø 17,40 mm, sort

SOMMER Transit MC5400 Kombi Videokabel

video/audio, PVC Ø 17,40 mm, sort

Varenr: 141780

Alt. varenr: 600-1451

164,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

Standing ovations...

Advantages:

Dependable and very high-quality picture & sound transmission
in one cable
Easy to crimp and very good damping values due to solid wire
conductors
Extremely rugged due to special jacket compound
Small outer diameter
flexible and easy to wind

Application:

For permanent installation over long distances (theatres, sports arenas,
media & conference centres)
For audio and video transmission, MADI live and studio operation

Specifications:

Article number	600-1451
Name	Transit MC5400 Kombi HD-SDI
EAN	4049371088084
Properties	Digital 75 O
Properties	OFC oxygen free copper
Properties	Analog
Properties	SDI
Application area	Stage / live
Application area	Installation
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application	Multicoax & Audio
Colour	black
Colour detailed	black

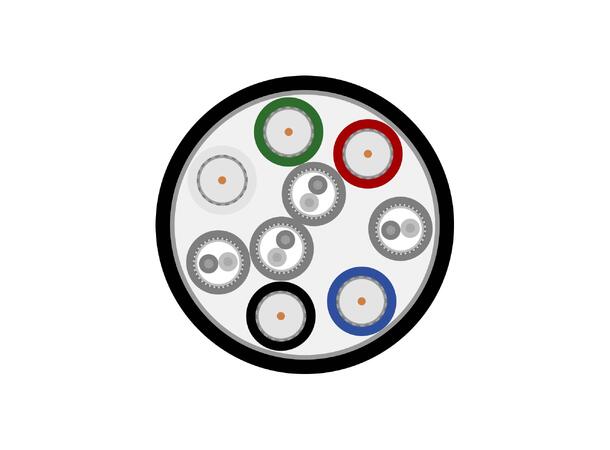

Construction	5LI2YSCY0,60mm+4(2LI2Y0,14mm²)DYY
Construction (audio)	4(2LIY0,14mm²)(ST)DY
Jacket material	PVC
Jacket Ø mm	17,40
Number of Channels (audio)	4
Number of Channels (video)	1
Inner conductor (audio)	2
Inner conductor (video)	5
Inner conductor (audio) mm²	0,14
Inner conductor (video) mm²	0,28
Inner conductor Ø (audio) mm	0,42
Inner conductor Ø (video) mm	0,60
AWG (audio)	26
AWG (video)	23
Shielding (audio)	Copper spiral, tin-plated
Shielding (video)	Cu mesh, tinned 95% + AL / PT-foil
Shielding factor %	100
Copper strands (audio)	36
Copper strands (video)	1
Copper strand Ø (audio) mm	0,07
Copper strand Ø (video) mm	0,60
Wire insulation material (video)	Foam / Skin-PE
Conductor insulation Ø (video) mm	2,80
Weight per 1 m g	380
UV-resistant	yes
Fire load per m kWh	1,49
Style variant	round
Packing	bulk stock
Temperature min. °C	-25
Temperature max. °C	70
Width mm	17,4
Height mm	17,4
Capac. cond./cond. per 1 m (audio) pF	48
Capacity wire/wire at 1 ft. (audio) pF	14,6304
Capacity wire/electic screen at 1m (video) pF	55
Capacity wire/electic screen at 1 ft. (video) pF	16,764

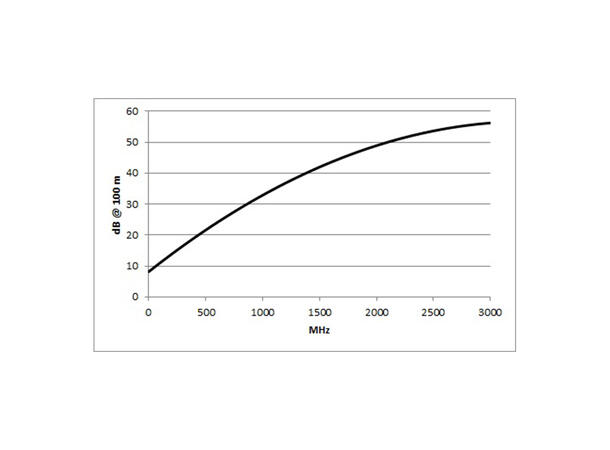

Damping at 5 MHz (100m & 20° C) dB	8,5
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB	2,5908
Damping at 50 MHz (100m & 20° C) dB	9,6
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	2,9261
Damping at 100 MHz (100m & 20° C) dB	11
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB	3,3528
Damping at 200 MHz (100m & 20° C) dB	13,8
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	4,2062
Damping at 470 MHz (100m & 20° C) dB	20,9
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	6,3703
Damping at 862 MHz (100m & 20° C) dB	29,9
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	9,1135
Damping at 1000 MHz (100m & 20° C) dB	32,9
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	10,0279
Damping at 1485 MHz (100m & 20° C) dB	41,6
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	12,6797
Damping at 1750 MHz (100m & 20° C) dB	45,7
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	13,9294
Damping at 2150 MHz (100m & 20° C) dB	50,5
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	15,3924
Damping at 3000 MHz (100m & 20° C) dB	56,2
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	17,1298
Impedance (video) O	75
BPVo-Euroclass	Fca
